Connector Sealed, Type 3

Connector sealed, type 3

Special tools:
951 2637 Terminal removal tool 951 2637 Terminal Removal Tool

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Disassembly

Disassembling secondary lock




Adjust the lock pins using an electrician's screwdriver and press up the secondary lock, as illustrated.

Disassembling primary lock




Use tool: 951 2637 Terminal removal tool 951 2637 Terminal Removal Tool to press down the cable terminal locking tab. See the illustration.
At the same time pull the cable carefully backwards.

Assembly

Assembling primary lock
Check that the cable terminal is undamaged.
Press the cable terminal into the housing.
Check that the seal is correctly positioned and the cable terminal has locked by carefully pulling the cable.

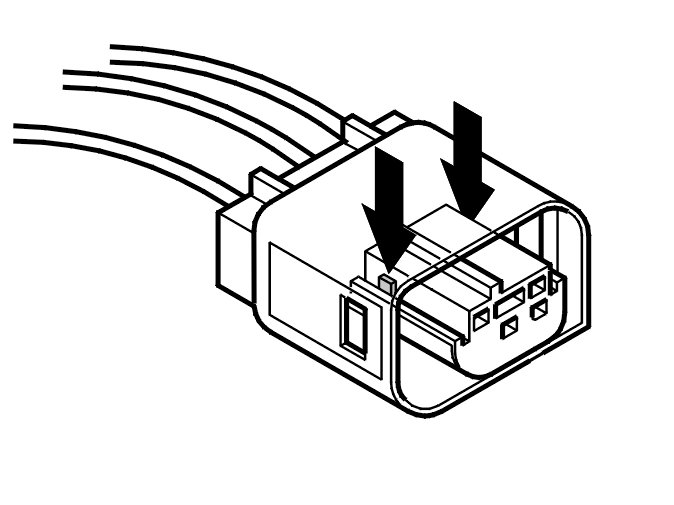

Assembling secondary lock
Press the secondary lock into place.
