Rear Brake Flexible Hose

Rear Brake Flexible Hose

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel Refer to: Wheels Service and Repair









Warning! Be prepared to collect escaping fluid.

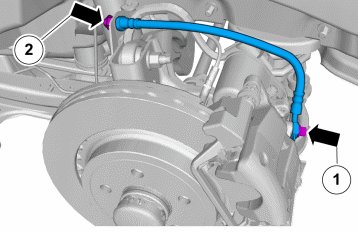

Remove the following items:
1. Torque: Brake hose to rear brake caliper, 46 Nm

2. Torque: Ø6 mm diameter brake line, 14 Nm

Installation

Warning! Make sure that the brake hose is not twisted and is correctly located.

To install, reverse the removal procedure.

Perform bleeding air brake system Refer to: Brake system bleeding Service and Repair
