Rear Seat, Passenger Seat, Bench






Operation number: 85310-2

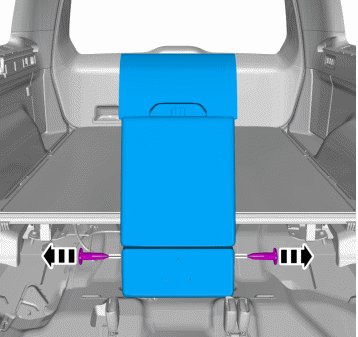

Rear Center Seat Backrest

Removal

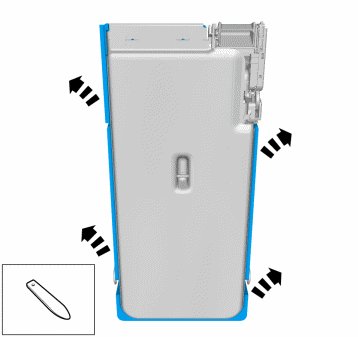

Remove back cushion outer rear seat

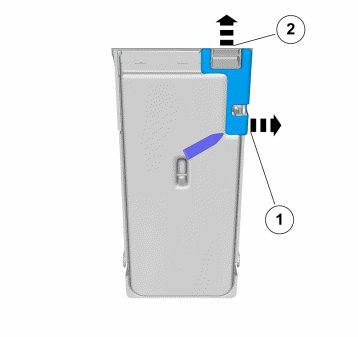

Remove the head restraint Refer to: Upholstery middle head restraint rear Upholstery Middle Head Restraint Rear













Installation

To install, reverse the removal procedure.
