INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Towbar, hitch, ski carrier

Note! Some steps in these installation instructions are presented with illustration only.

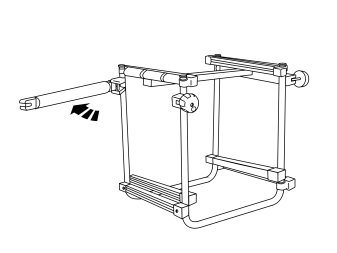

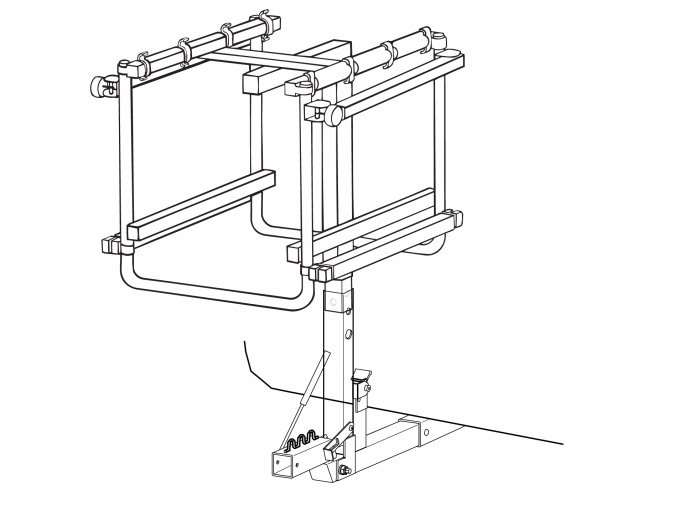

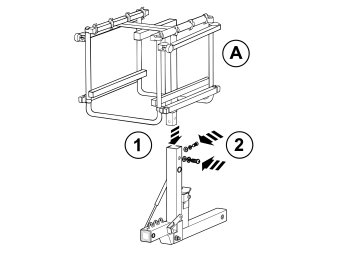

- Install the ski holder in the base unit's square pipe.
- Tighten in the ski holder using the two screws, the spring washers and the flat washers from the base unit kit.

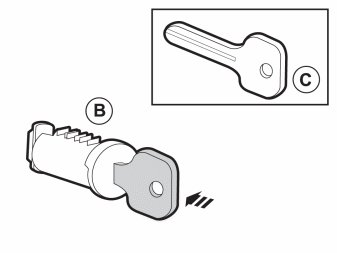

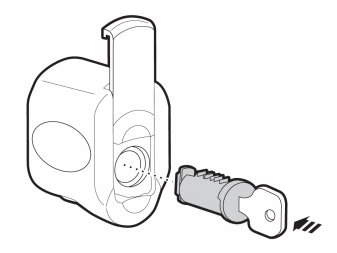

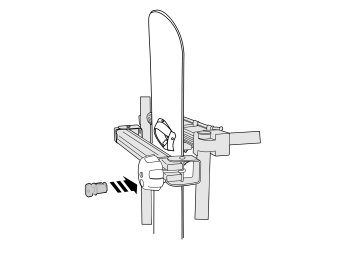

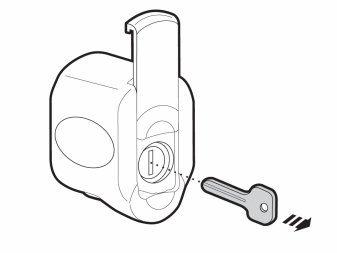

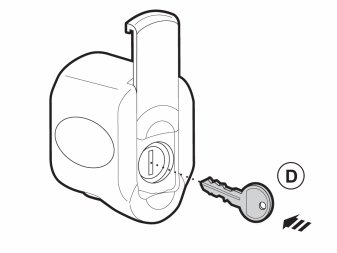

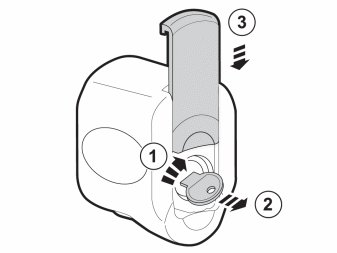

Illustrations A-D show installation of lock cylinders and locking the ski holder

Illustration A





Illustration B





Illustration C





Illustration D

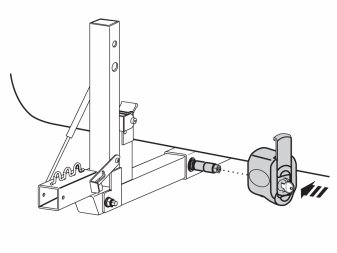

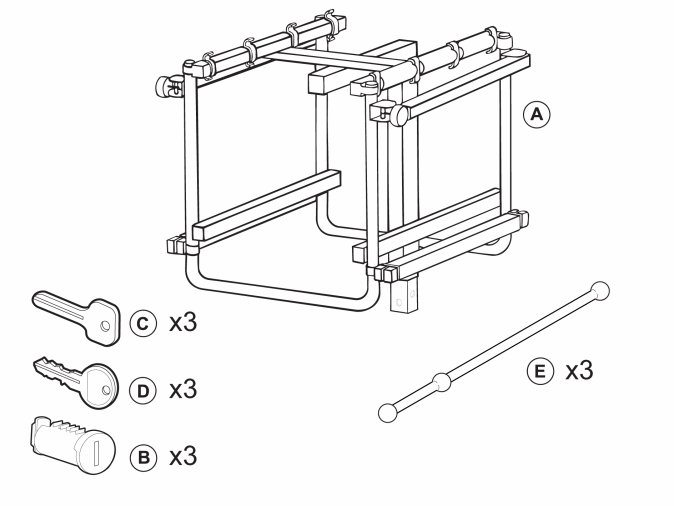

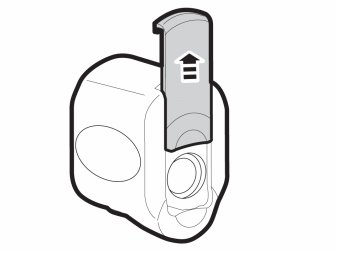

Illustrations A-H show locking the base unit with accessories for towbar hitch. Use the lock housing from the base unit kit as well as lock cylinder with keys from the accessory kit.

Illustration A





Illustration B





Illustration C





Illustration D





Illustration E





Illustration F





Illustration G





Illustration H






Undo the attaching brace

Illustration A

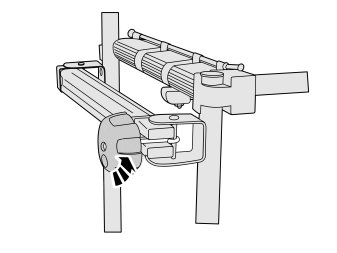

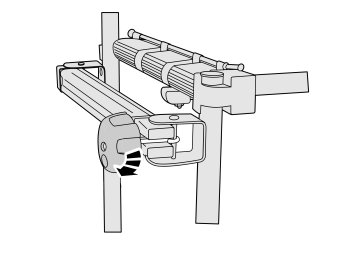

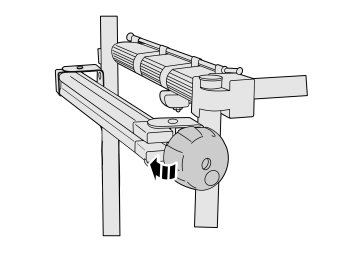

- Turn the locking wheel anticlockwise.

Illustration B




- Undo the ski holder's attaching brace by folding the locking wheel out from the brace.

Illustration C




- Fold out the attaching brace.


Illustration A shows the installation of a pair of skis

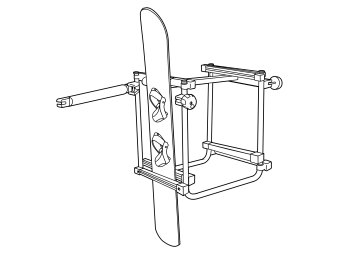

Illustration B shows the installation of one snow board

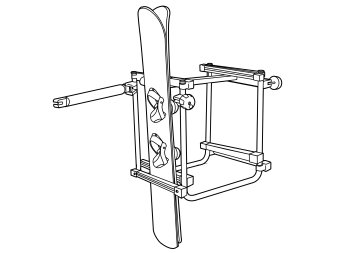

Illustration C shows the installation of two snow boards

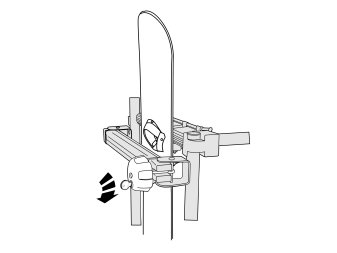

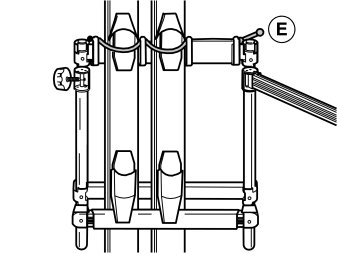

Illustration D shows tensioning with a rubber strap

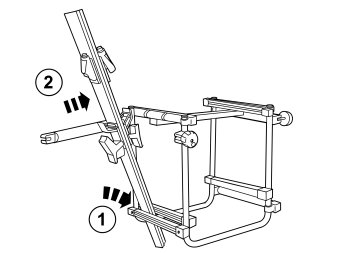

- Guide the skis or snow board down into the lower holder.
- Hold them in against the upper holder's rear section.
- Tension them in against the rear section using the rubber strap, (Illustration D), in order that they shall be held in place while more skis/snow boards are installed in the holder as well as when the attaching brace is closed.

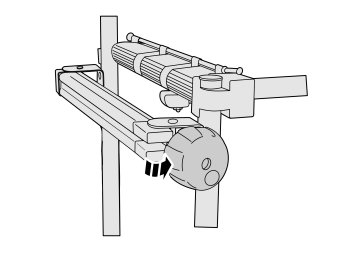

- Fold back the attaching brace and the locking wheel.




- Tighten the locking wheel.

Caution! Check that the load on the ski holder is well-tensioned so that there is no risk of it falling off. In addition, check periodically during the journey. The load must not obscure the number plate or lighting. Retighten all screws, nuts and locking wheels regularly to avoid the risk that any part of the accessory or load may fall off.

The ski holder must not be used when driving over terrain.
Damaged tensioning straps and mounting straps must be replaced with new ones.
Do not allow the load to shift outside of the ski holder.
Remember not to load too heavily and that the car's centre of gravity can be changed by carrying a hitch unit load.
If the car's number plate could be obscured by a loaded ski holder there is an extra number plate holder with lighting that is available as an accessory and which should then be used.
