Towbar, Hitch, License Plate Holder

Towbar, hitch, license plate holder























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Towbar, hitch, license plate holder

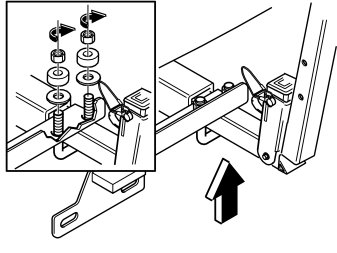

Image A applies when mounting on the holder's horizontal square tube

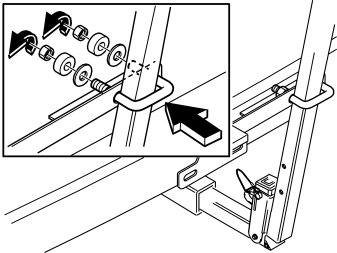

Image B applies when mounting on the holder's vertical square tube

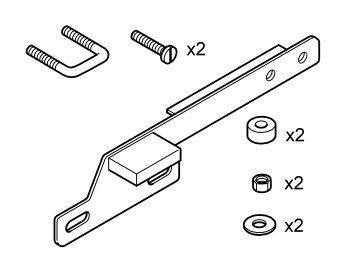

- Take the license plate holder and tighten it at the holder with the clamp, spacer sleeves and nuts from the kit as illustrated. Tighten the nuts to 7 Nm (5.2 lbf.ft).

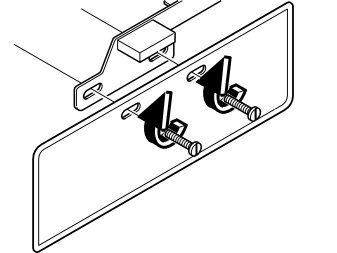

- Take the two screws from the kit and tighten the license plate into place.

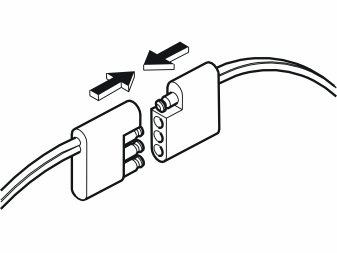

- Connect the connector for the license plate holder's lighting to the corresponding connector from the car.
