Rear Subframe Mount: Service and Repair

Operation number: 65261-2

Bushing sub-frame rear

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Rear end to service position. Refer to: Rear suspension, service position, B6324S5, TF-80SC, B6324S4, TF-80SC Service and Repair






Note! Note and mark the position of the components before removal.

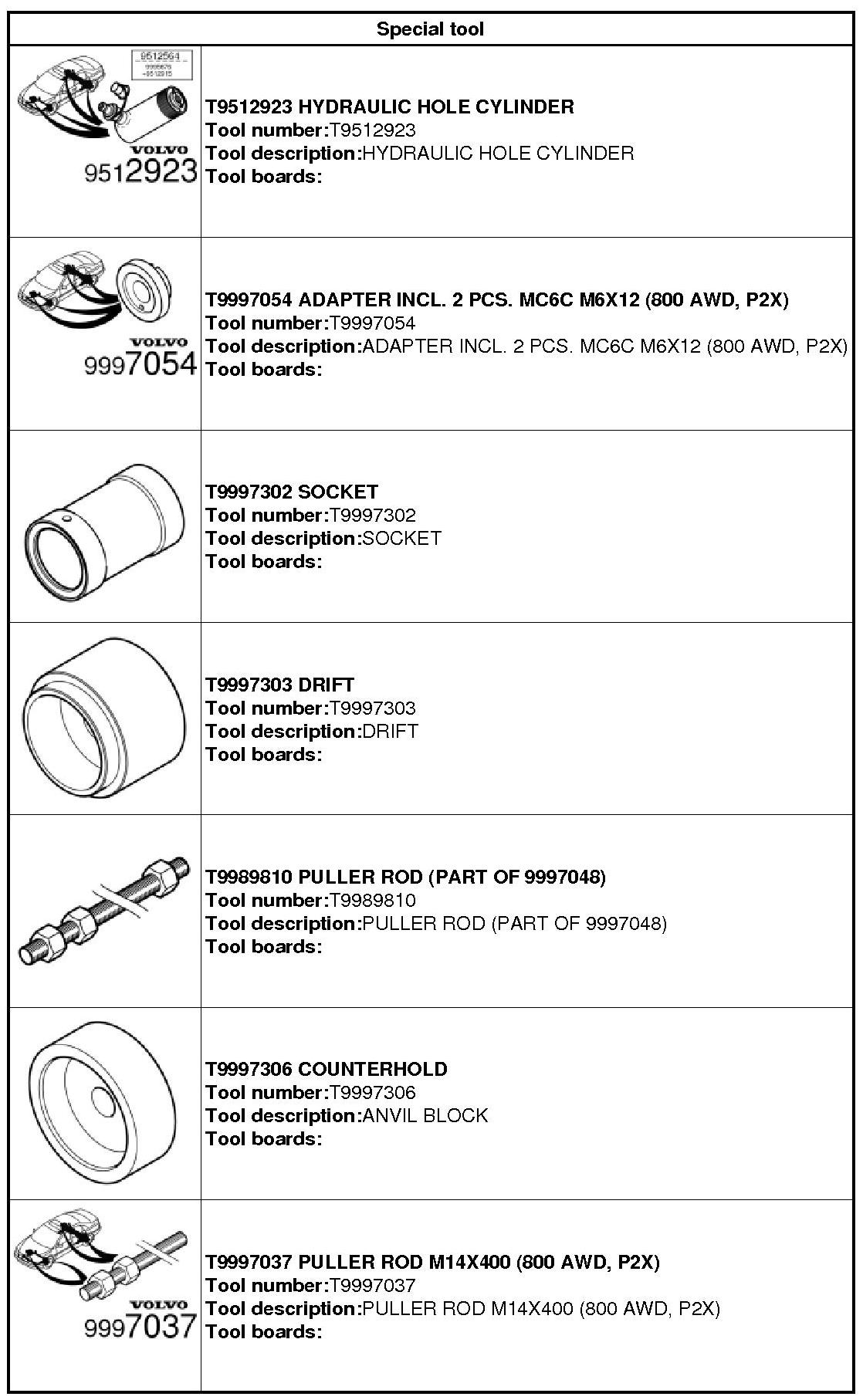

Attach the following items:
- 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder
- 999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter Incl. 2x MC6C M6X12
- 999 7302 Socket 999 7302 Socket
- 999 7303 Drift 999 7303 Drift
- 998 9810 Towbar 998 9810 Towbar

Installation











Attach the following items:
- 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder
- 999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter Incl. 2x MC6C M6X12
- 999 7306 Counterhold 999 7306 Counterhold
- 999 7037 Connecting rod M14X400 999 7037 Connecting Rod M14X400







Install in the reverse order.
