Front Cross-Member: Service and Repair

Collision member

Operation number: 86325-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove casing bumper front Refer to: Cover bumper front Service and Repair





Remove the following items:

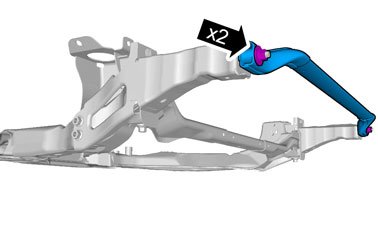

1. Torque: Collision member for subframe upper, 100 Nm

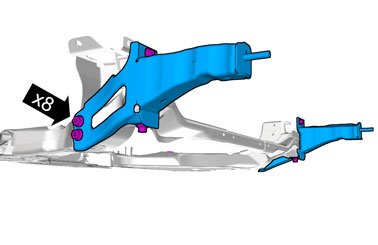

2. Torque: Collision member for subframe lower, 100 Nm





Installation

To install, reverse the removal procedure.
