Description and Operation
>>
Design
Design
Design
Tailgate system

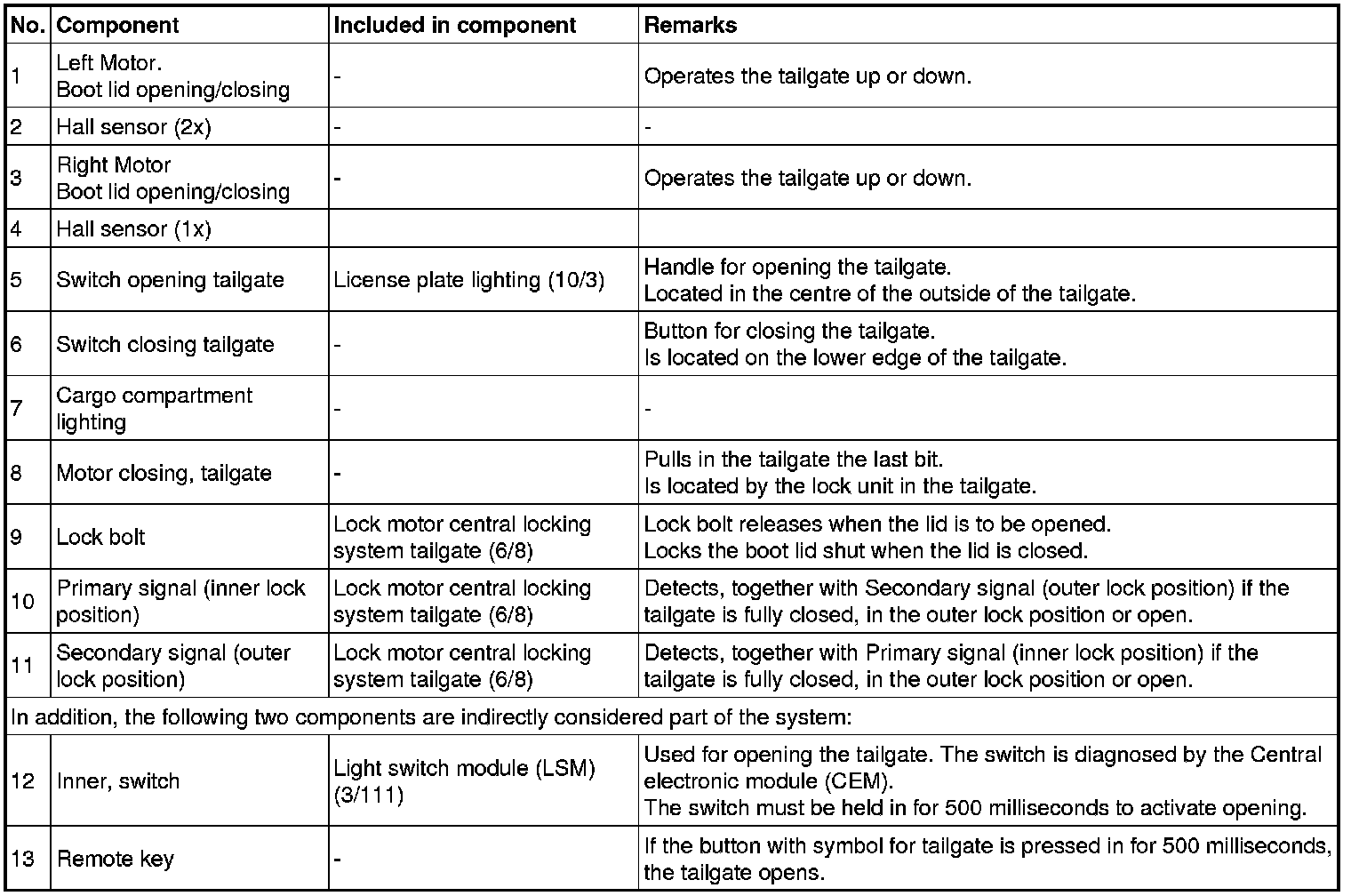

The task of the Power Operated Tailgate Module (POT) is to check the tailgate's automatic opening and closing mechanism. To achieve this, it is included in a system together with the following components:
