Hood Hinge: Service and Repair

Hood hinge

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing hinges hood





Remove:
- the hood

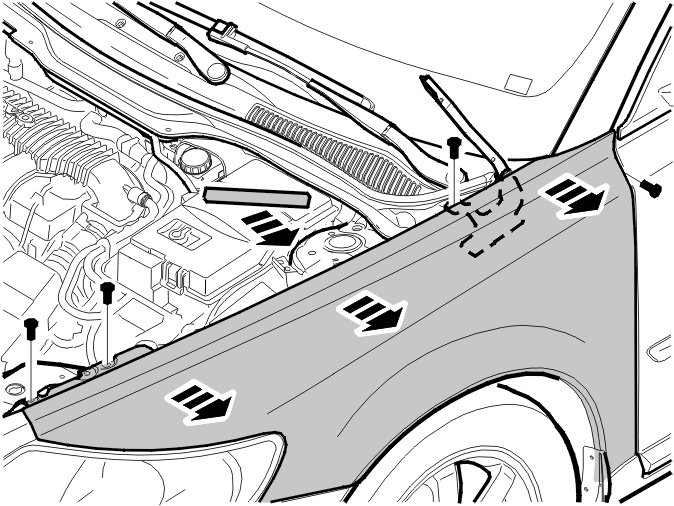

- the 4 M6 screws at the top edge of the front fender.
Carefully bend in the fender to access the 2 hinge screws.
Place a support against the fender to prevent it being damaged.

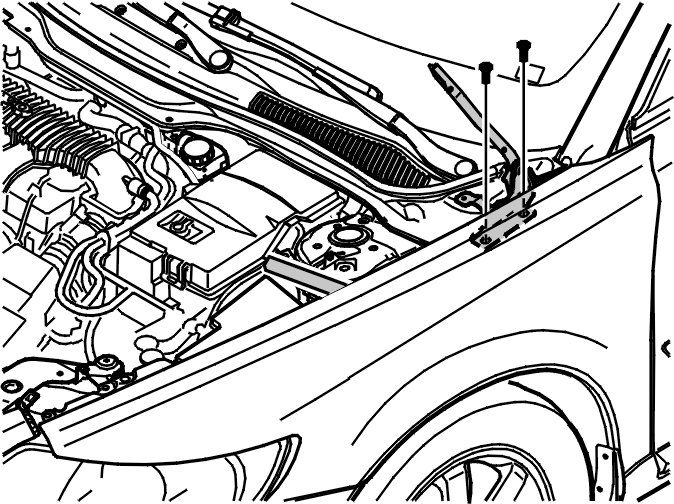

Remove the 2 M8 screws and remove the hinge.

Installation

Note! For tightening torques, see: Tightening torque, B6304T4, B6324S5, B6324S4 [1][2]Body and Frame.

Installing hinges hood





Install:
- the hinge together with the 2 M8 screws. Tighten
- the front fender using the 4 M6 screws. Tighten
- the hood.
