Rear Bumper Reinforcement: Service and Repair

Operation number: 86101-2

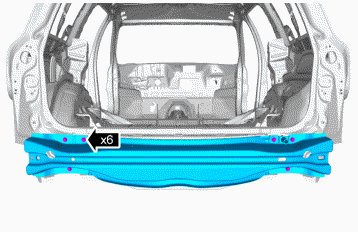

Rear bumper rail

Removal

Note! Removal steps in this procedure may contain installation details.

Remove casing bumper rear Refer to: Cover bumper rear Service and Repair

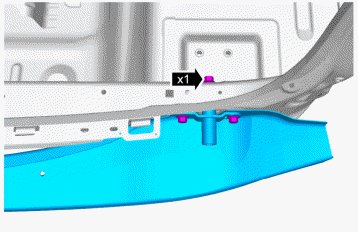

Follow the instructions regarding rear piece Refer to: Rear section




Torque: M10, 50 Nm





Installation

To install, reverse the removal procedure.

Perform collision protection unit from behind front seat check Refer to: Collision protection unit from behind front seat check Testing and Inspection
