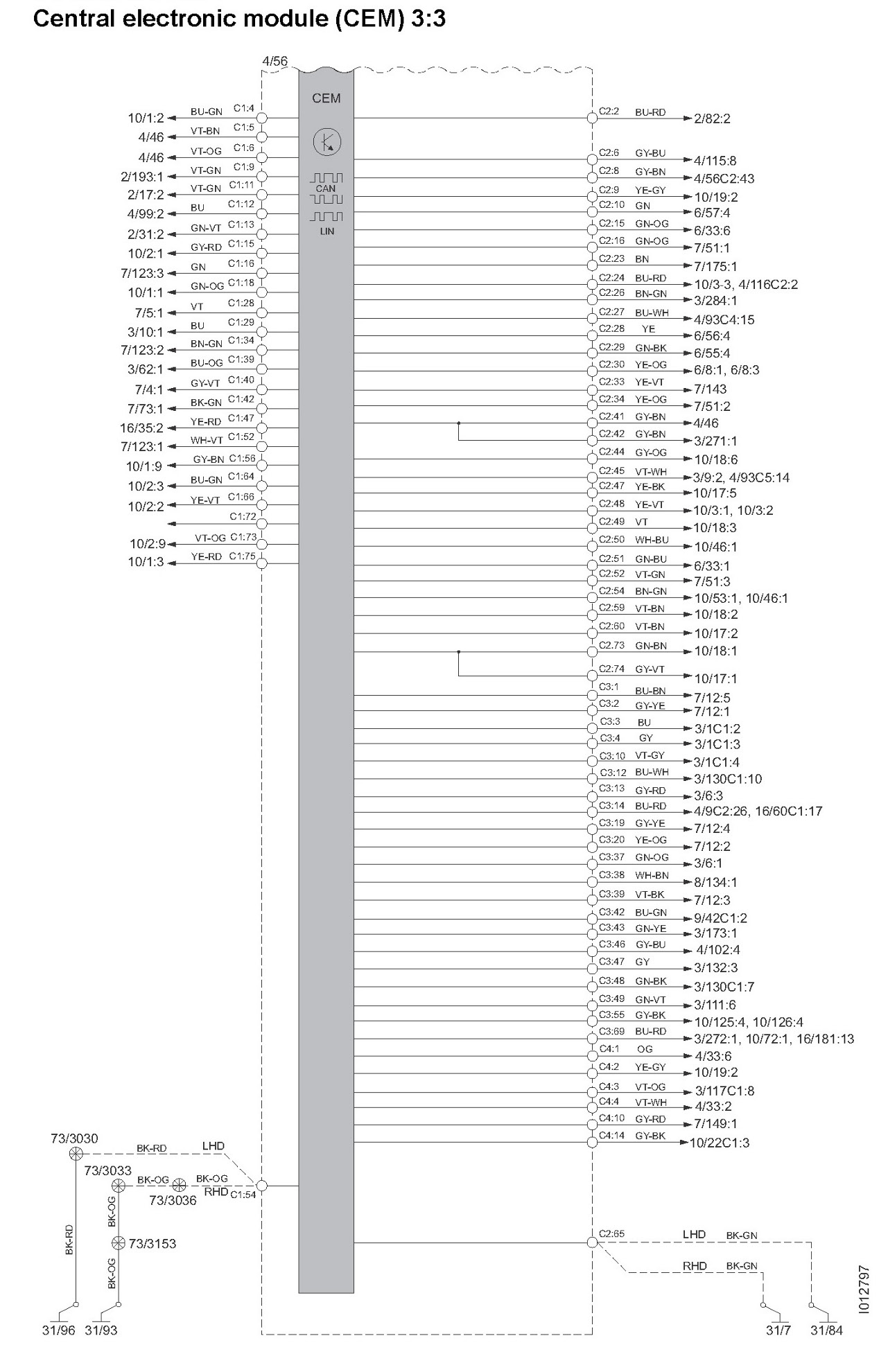

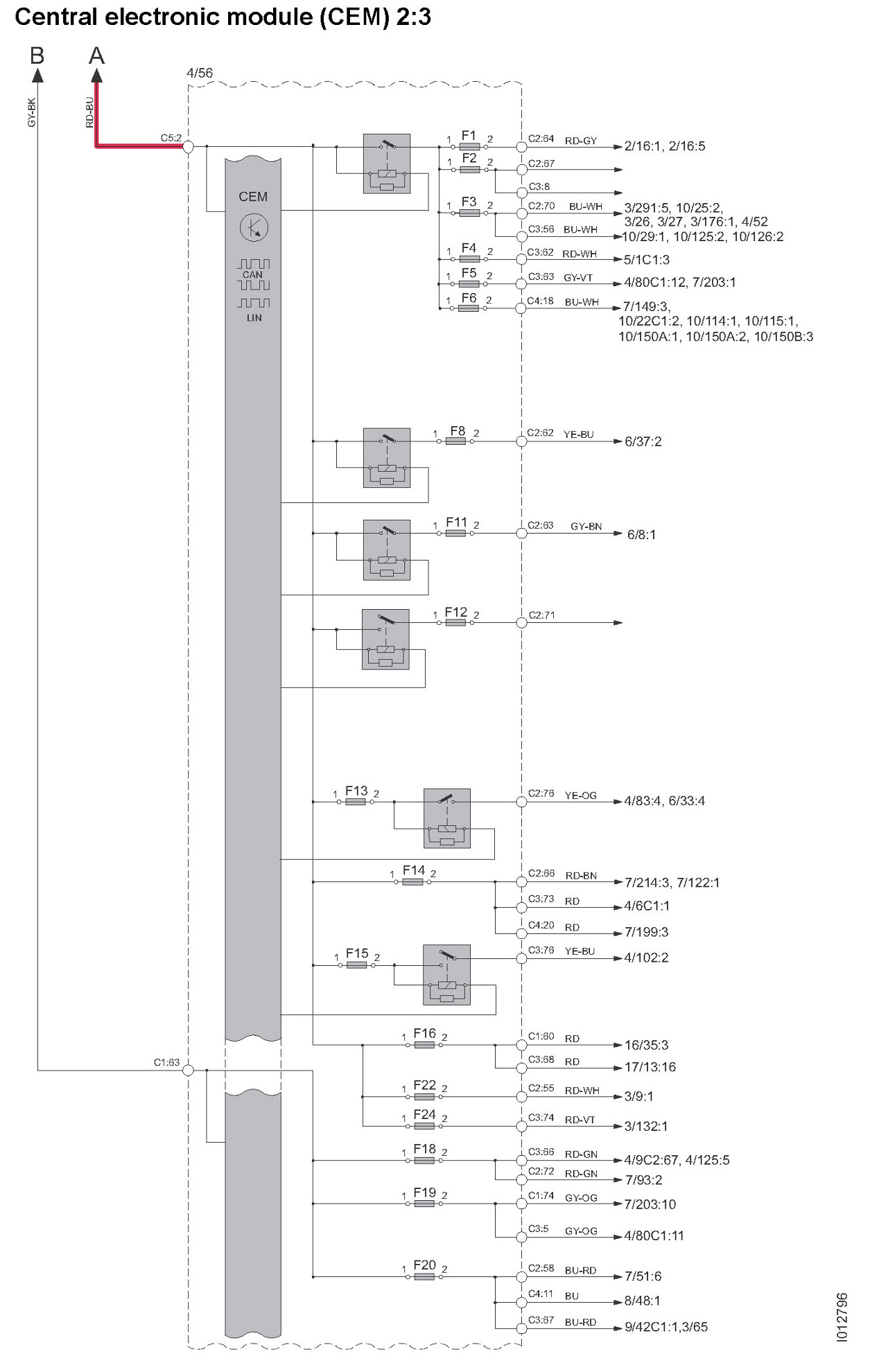

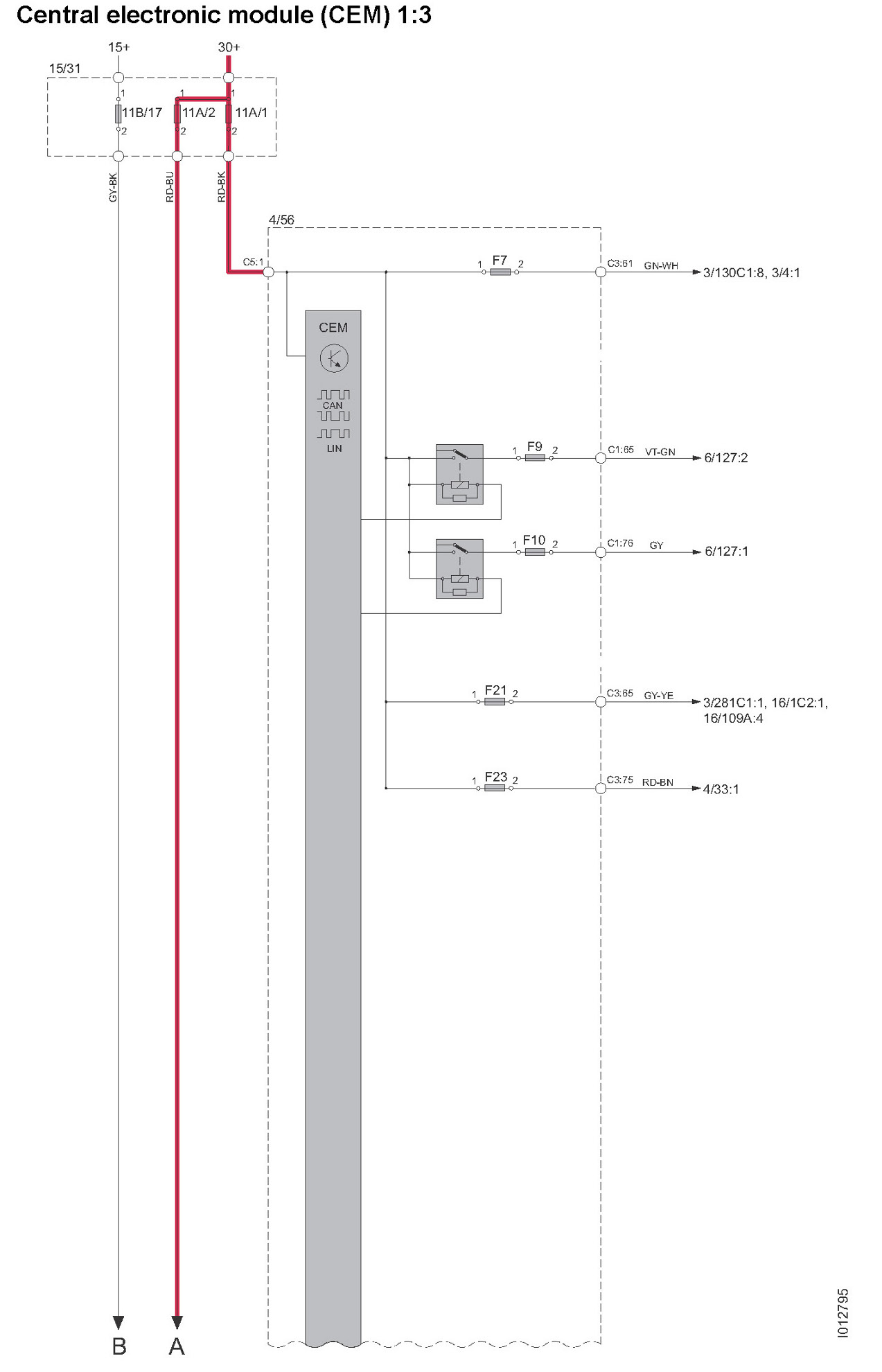

Central Electronic Module (CEM)

Central Electronic Module (CEM)













Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
