Navigation system, portable































































INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Navigation system, portable

Applies to the XC60 from and including chassis number 175379-

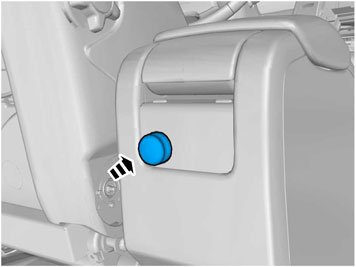

- Remove the panel.














- Push out the 12V cable.

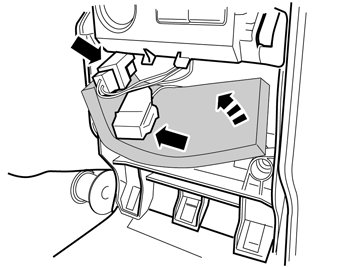

- Take the cable harness (F) out of the kit and place it on the left hand side of the tunnel console.
- Connect the 12V cable to the female connector on the cable harness.
- Insert the remaining male connector through the hole to where the cup holder was.
- Pull the cable forward inside the carpet for the centre console.

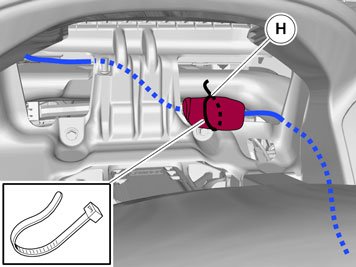

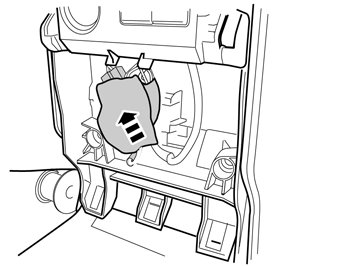

- Cut off the foam, remove the protective tape and wind the foam around the connector and fuse holder.

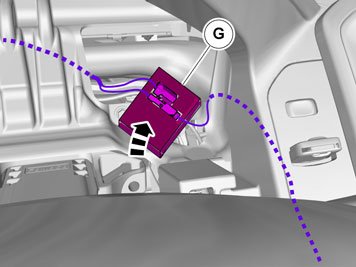

- Place the foam covered components as illustrated. Ensure that the cables do not come into contact with sharp edges.

Applies to the XC60 up to and including chassis number 175378-









- Use tape to protect the tunnel console.

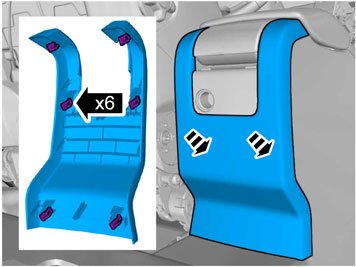

- Remove the rear end with cover.

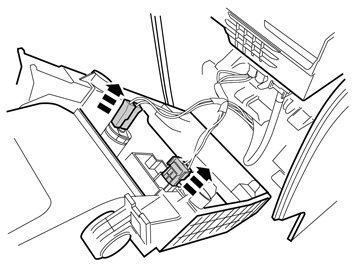

- Disconnect the connectors for the 12 V socket and seat heating,.

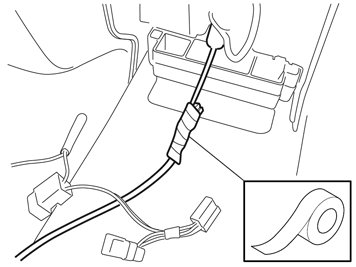

- Take a piece of curtain wire and insert it in the rear edge of the tunnel console, slide it forward on the left-hand side and out where the left side panel was located.
- Lift up the console at the rear edge to facilitate access.
- Use tension spring P/N 9512932.

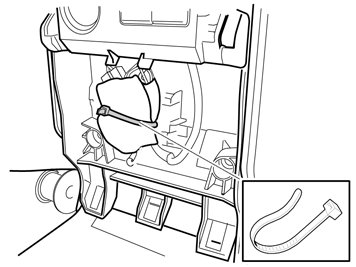

- Take the large cable harness from the kit and secure it to the end of the wire using a piece of masking tape.
- Route the cable harness. Raise the tunnel console at the rear edge to facilitate routing the cable harness through.
- Check that the cable harness is not trapped when the tunnel console is positioned.

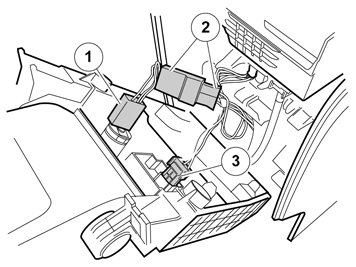

- Connect the male connector (1) in the new cable harness to the 12 V socket.
- Connect the disconnected connector (2) from the 12 V socket to the female connector (2) in the new cable harness.
- Reconnect the green connector (3).
- Insert the connectors and fuse holder down as far as possible.










- Wrap the connectors and fuse holder with foam tape.





- Position the connectors and fuse holder.























Applies to all models

Illustrations A and B

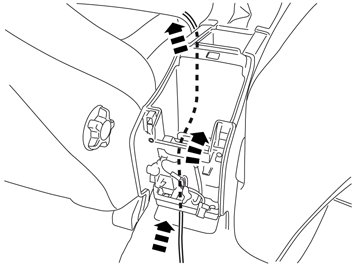

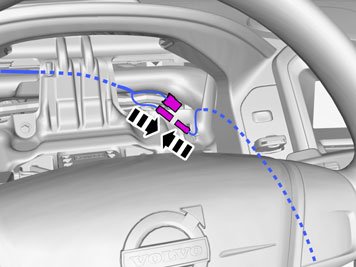

- Route the cable harness from the 12V socket through the centre console.
Use tension spring P/N 9512932.






Applies to right-hand drive vehicles









- Clamp the cable at the existing cable harness. Conceal any overlength cable inside the mat.

Applies to all vehicles

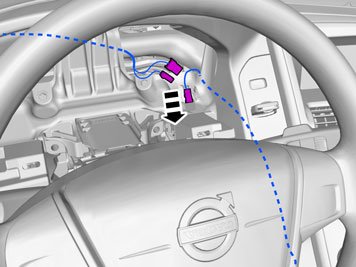

- Connect the small connectors.





- Wrap the connectors in foam tape.





- Clamp the foamed connectors and cable harness and any overlength at the existing cable harness.

Note! Divide the excess evenly, in order not to obstruct the combined instrument panel.





- Install the navigator.

- Reinstall the detached components in reverse order.
