Part 1

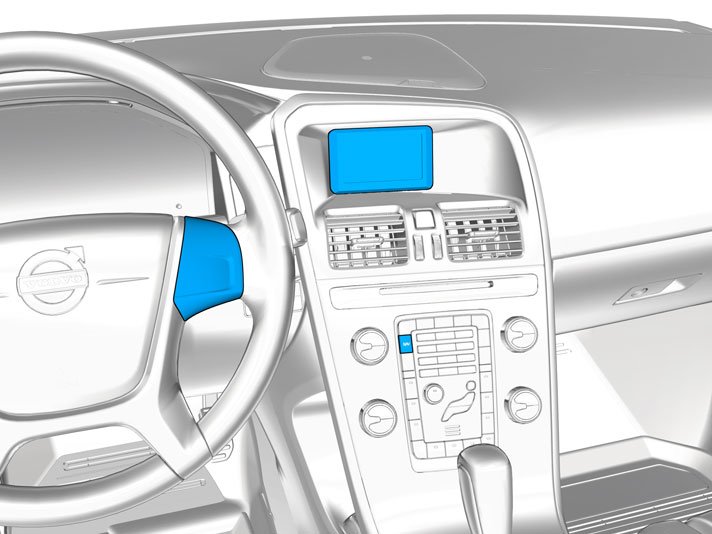

Navigation system, RTI

Equipment






















Kit contents













Operation number: 39702

Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions





Warning! The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 3 minutes before disconnecting or removing any SRS components.

Removal

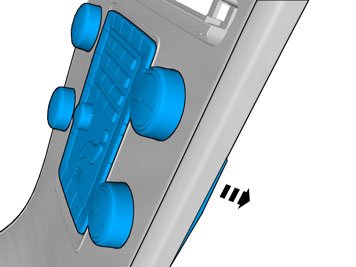

Remove the panel.




Remove the panel.

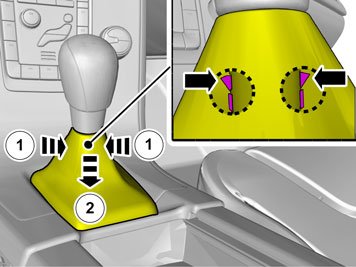

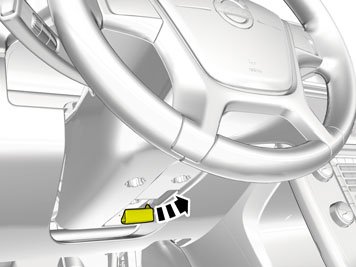

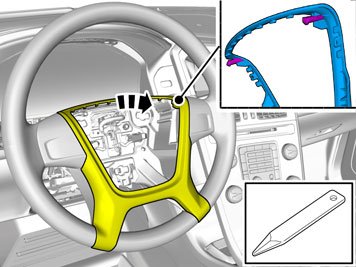

Release the lock.









Repeat the steps when removing on opposite side.

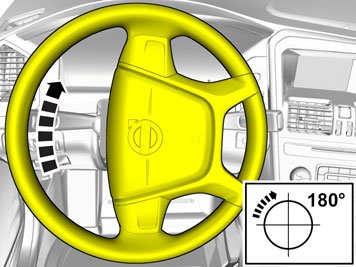

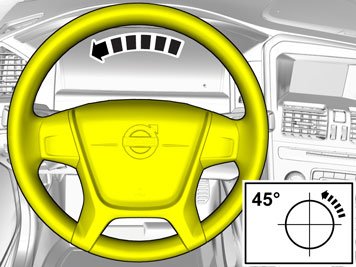

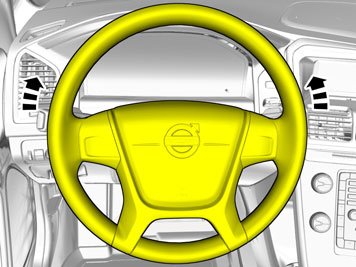

Turn the steering wheel into neutral position.




Disconnect the connectors.





Warning! Place the airbag module with the front side facing up in a safe storage area during work.





Note! This step requires considerable force.

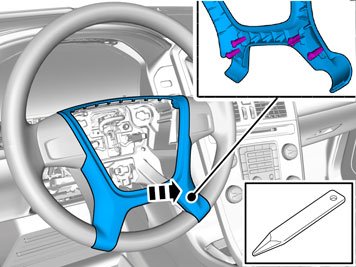

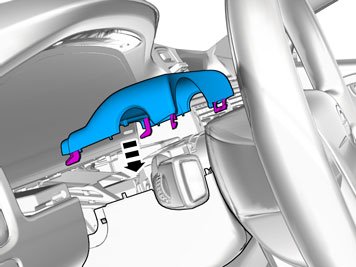

Detach the panel.





Note! This step requires considerable force.

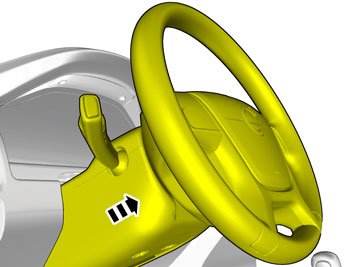

Remove the panel.








Disconnect any connector(s).

Installation




Connect the connector.








Install the panel.




Connect the connectors.

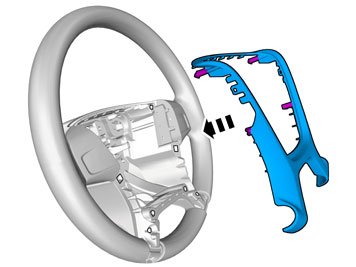

Install the panel.




Install the panel.

Removal




Remove the panel.




Disconnect the connector.

Vehicles with 5 inch ICM-display




The part(s) are not to be reused.





Installation





All vehicles

Removal




Remove the panel.




Remove the screws.




Remove the screws.

Cars with automatic transmissions

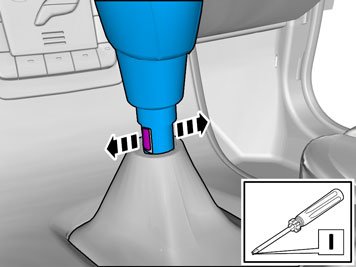

Release the shift-lock function.

Cars with manual transmissions













All vehicles




Remove the panel.

Vehicles with the 4C system.




Disconnect the connector.

All vehicles




Remove the panel.

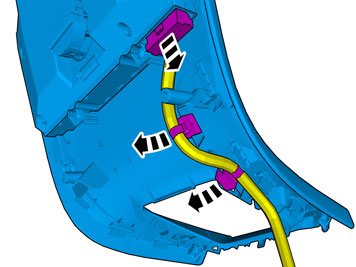

Unhook the cable harness clips.
Disconnect the connector.





Caution! Use suitable tape to protect the components.




Detach the panel.




Detach the panel.




Remove the panel.

Vehicles with the 4C system.





All vehicles




Remove the cable harness clips.
Disconnect the connector.




Remove the screws.




Remove the panel.
