Part 1

Navigation system, portable































INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

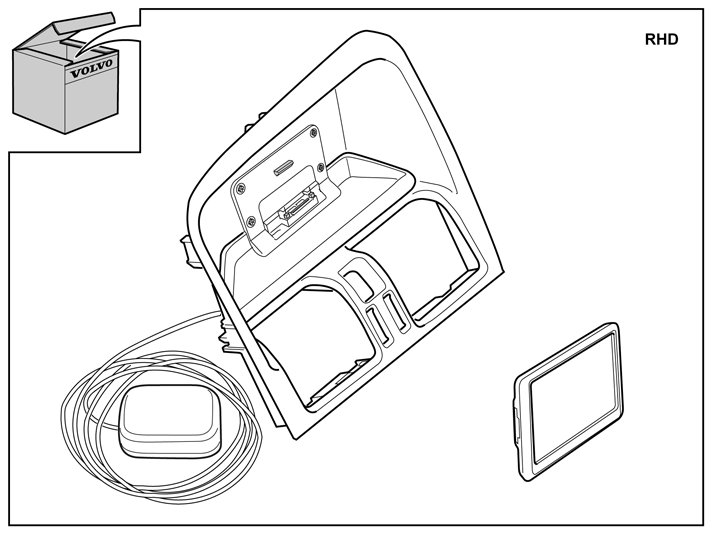

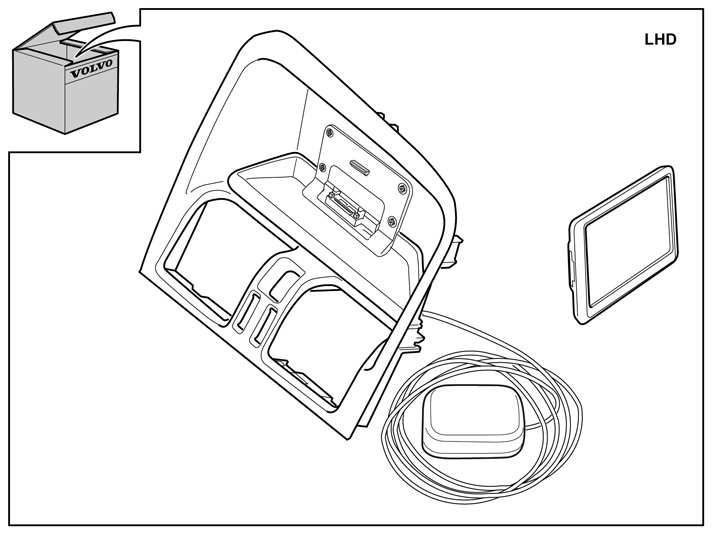

Navigation system portable


Note! Work is carried out the same way on left-hand drive cars as on right-hand drive cars (Mirrored). Left-hand drive car shown. In cases where there are differences between left and right-hand drive cars, both versions are shown.




- Turn the ignition switch to position 0.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

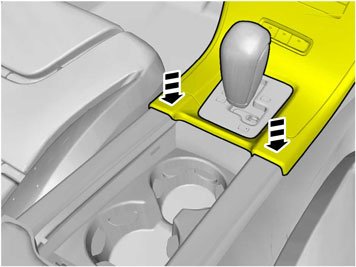

- Remove the tunnel console's panel on the left-hand side ( Also applies to right-hand drive cars). It is secured with seven clips on the inside.

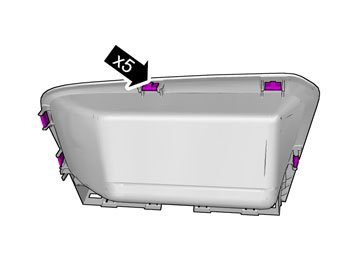

- Carefully pry loose the panel with air blower all round. The panel is secured by five clips on the sides and at the top and with four mounting springs on the lower edge.





- Pull out the panel and disconnect the connector for the hazard warning lights.


Illustrations A and B





Replacement of the panel for the air vent

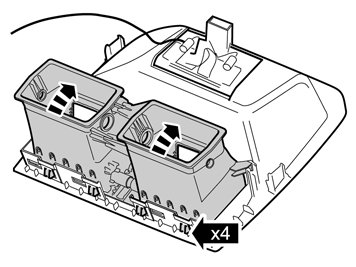

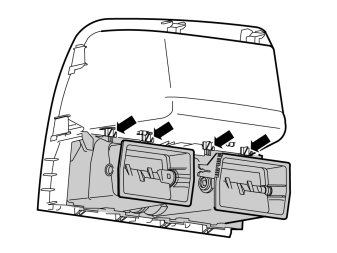

- Poke the catches downwards using a small screwdriver.

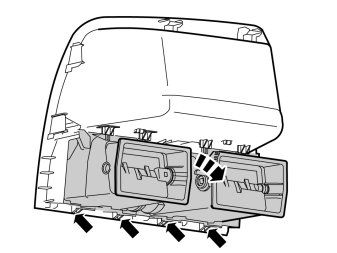

- Fold down the air nozzle and unhook it from the four mounting eyelets at the lower edge of the panel.

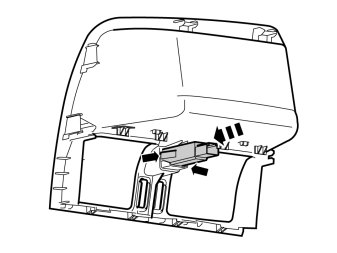

- Poke the catches on the hazard warning button in and push the button out.





- Remove and transfer the clips to the new panel, place the old one to one side.





- Install the button for the hazard warning lights in the new panel.





- Install the air vent in the new panel.










- Use tape to protect the tunnel console.






































- Remove the rear end with cover.
- Disconnect the connectors for the 12 V socket and seat heating.






Route the cable harness to the centre console in the same way on left-hand drive and right-hand drive cars
- Take a piece of curtain wire and insert it in the rear edge of the tunnel console and slide it forward on the left-hand side and out where the left side panel was located.
Lift up the console at the rear edge to facilitate access.

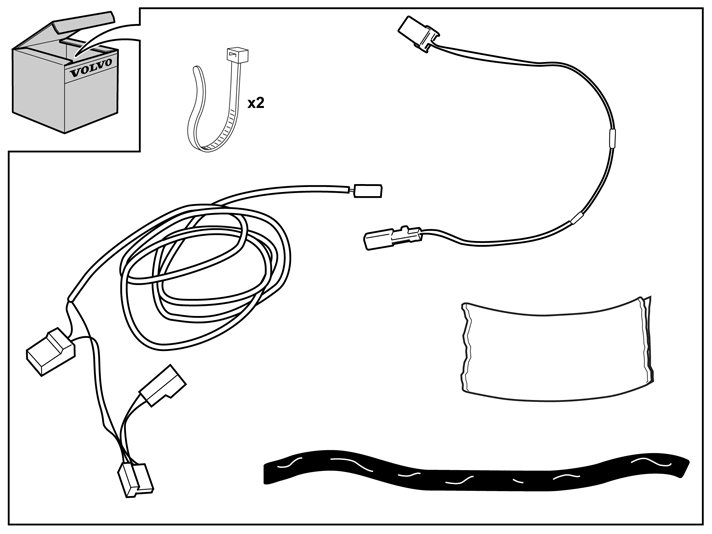

- Take the large cable harness from the kit and secure it to the end of the wire using a piece of masking tape.
- Pull the cable harness forward.
Lift up the tunnel console at the rear edge to facilitate pulling through.
- Check that the cable harness is not trapped when the tunnel console is positioned.

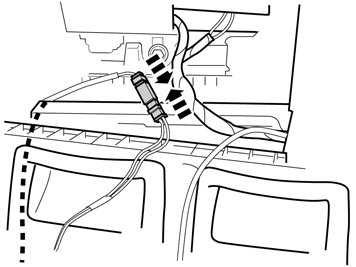

- Connect the male connector (1) in the new cable harness to the 12 V socket.
- Connect the disconnected connector (2) from the 12 V socket to the female connector (2) in the new cable harness.
- Reconnect the green connector (3).
- Insert the connectors and fuse holder down as far as possible.










- Wrap the connectors and fuse holder with foam tape.





- Position the connectors and fuse holder.

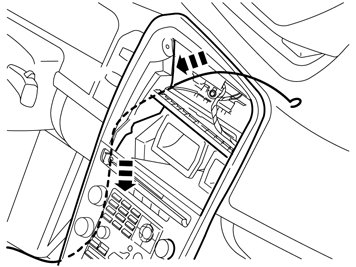

- Insert the wire through the centre console on the left-hand side and out where the side panel was located.

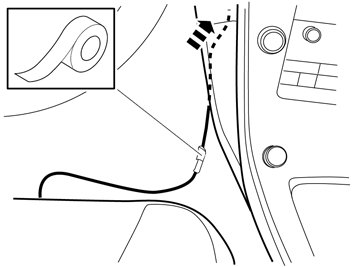

- Tape the routed cable using a piece of masking tape and pull up.





- Take the short cable from the kit and connect to the newly routed one.
