Antenna, Global Positioning System Module (GPS)

Operation number: 39414-239721-239728-2

Antenna, Global positioning system module (GPS)

Removal

Remove the B-pillar trim panel Refer to: B-pillar trim panel B-Pillar Trim Panel

Remove side panel cargo compartment Refer to: Side panel load space Side Panel Load Space

On both sides.

Caution! Take extra care not to crease the headliner.

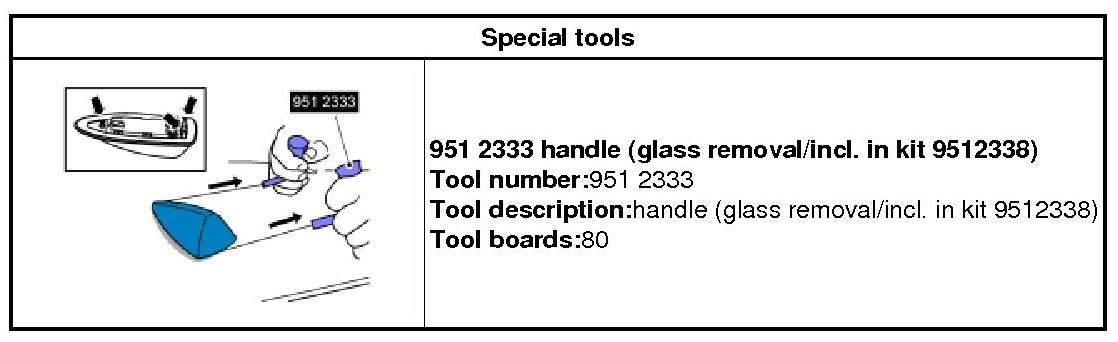

951 2333 handle 951 2333 Handle

Installation

Apply adhesive tape to antenna cover, navigation system (GPS) Refer to: Tape antenna cover navigation system (GPS) Tape Antenna Cover Navigation System (GPS)

See information about components with double-sided adhesive tape Refer to: Components with double-sided tape Removal and Replacement

Caution! Make sure that equal force is applied to the underside of the body panel.

To install, reverse the removal procedure.
