Part 2

Parking assistance, camera, rear

Equipment






























Kit contents













Disconnect the connectors.












Remove the screws.
Torque: M8, 24 Nm












Disconnect the connector.




Remove the screw.
Torque: M8, 24 Nm




Fold the carpet to the side.
Remove the screw.
Torque: M8, 24 Nm




Fold the carpet to the side.
Remove the screw.
Torque: M8, 24 Nm













Note! The screws are to be reused.

Remove the screws.





Vehicles with 5 inch ICM-display





Note! If the connection is missing the display must be replaced.

Vehicles with 7 inch display




Disconnect the connector, if applicable.
Attach the connector to the wiring harness.

Use: Wiring tape,





Note! The number of connectors, cables and cable ties can vary depending on the vehicle's equipment level.

Disconnect the connectors.




Remove the panel.




Remove the weatherstrip.




















On both sides.

Vehicles with heated rear seat




Disconnect the connector.
On both sides.

All vehicles




















Remove the weatherstrip.




Remove the panel.




Remove the weatherstrip.




Detach the panel.




Detach the panel.

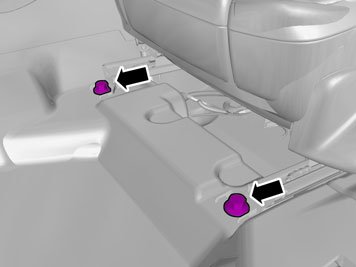

Remove the screws.
Torque: Front seat to body, 40 Nm








Remove the screws.
Torque: Front seat to body, 40 Nm




















Remove the panel.




1. Remove the screws.
2. Remove the panel.








999 5919 PULLER 999 5919 Puller




Remove the screws.
Torque: M8, 24 Nm




Remove the screw.




Remove the panel.








Remove the screw.
Repeat on the other side.

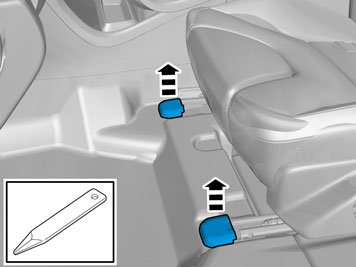

Detach the panel.
Repeat on the other side.

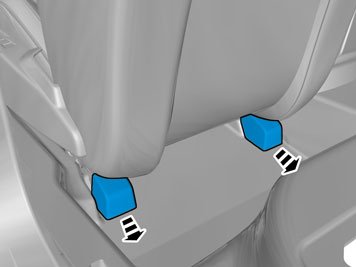

Detach the panel.
Repeat on the other side.




Detach the panel.








Remove the screws.








Disconnect the connector.
