Antitheft - Alarm System Service Required Displayed In DIM
Title Alarm system, service required displayed in DIMRef No US25669.2.0 en-US
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 3660
Func Desc automatic monitoring and control
Status Released
Status Date 05-01-2012
Issue Date 05-01-2012
Reference
Attachment

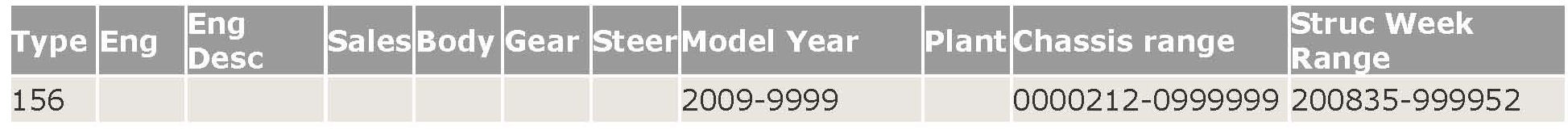

Vehicle Type

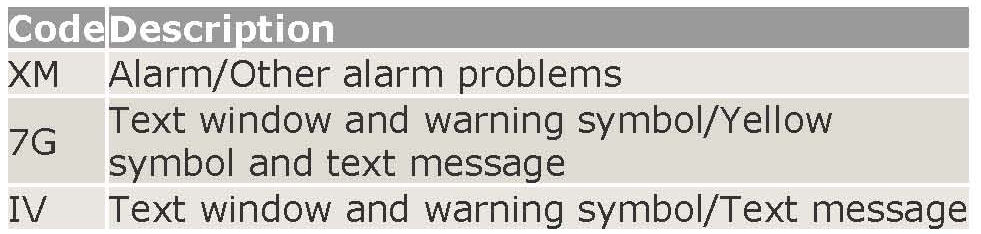

CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text
This document supercedes the previous one dated 2012-02-20. Changes to this document are:
There is a small batch of updated MMS's with new software available from parts stock in Gothenburg. See updates under Service.
If using a printed copy of this document, always check for the latest online version.
DESCRIPTION:
It may happen that a message, Alarm system service required, is shown in DIM. This is caused by an error in the communication between the CEM (Central Electronic Module) and the MMS (Mass Movement Sensor) where the MMS ends up in a faulty state. This is a known problem and we are developing a new MMS software, that automatically resets the MMS when it enters the locked state.
PRODUCT MODIFICATION:
The final production solution will be to replace the MMS with a MMS that has a new software. Estimated time plan for the final solution is 2012Q2.
MATERIAL RETURN:
*No
VEHICLE REPORT:
*Yes, if this TJ does not solve the problem. Issue a Vehicle Report with the sub category Support Needed, use function group 3660.
SERVICE:
*There is a small batch of updated MMS's with new software available from parts stock in Gothenburg.
*We will keep updating old MMS's with new software until a new MMS is available from the supplier.
*The updated MMS will have a green marking but the same P/N.
*NOTE: As we only have the possibility to update in small batches, only order the MMS case by case. Do not order for local stock storage.
VSTG OPERATION NUMBER:
36627-2 Mass movement sensor (MMS) front replace
