Antitheft Antenna: Service and Repair

Operation number: 39734-2

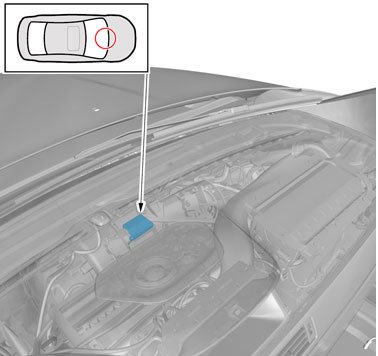

Antenna for recovery of stolen vehicle (ATSVR)

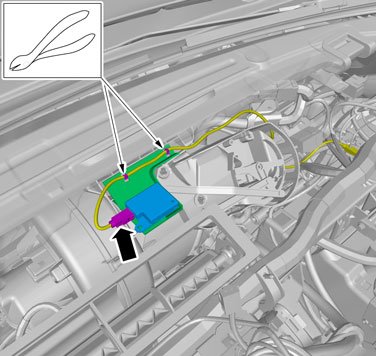

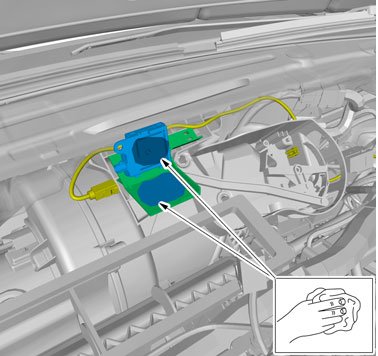

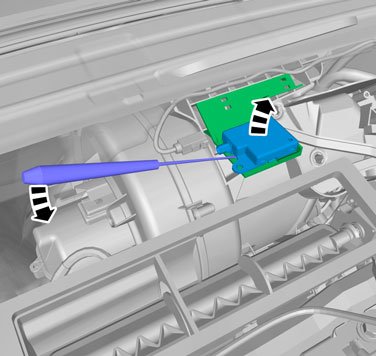

Removal

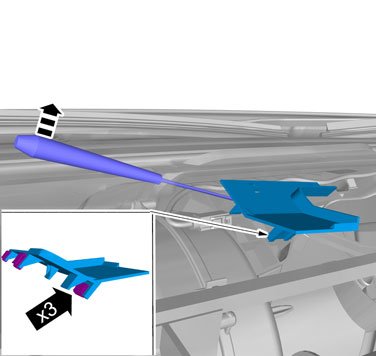

Remove the dashboard

















Installation

Follow the instructions regarding components with double-sided adhesive tape Refer to: Components with double-sided tape Removal and Replacement





To install, reverse the removal procedure.
