Rear Door Fixed Window Glass

Rear Door Fixed Window Glass

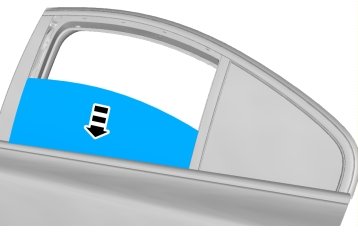

Removal

Note! Removal steps in this procedure may contain installation details.

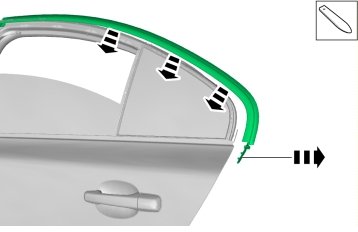

Remove panel side door rear Refer to: Panel rear door Service and Repair




































Torque: Window fixed, door rear to door , 3 Nm





Installation

To install, reverse the removal procedure.
