Transfer Case Vent

Operation number: 43334

Transfer Case Vent

Removal

Remove bevel gear Refer to: Bevel gear, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD Bevel Gear









Installation

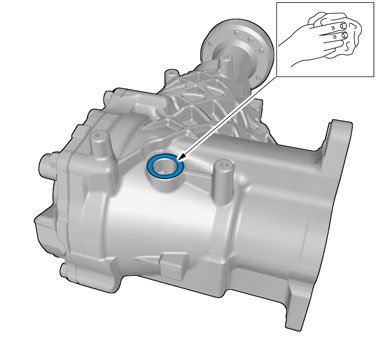

Caution! Make sure that the surface is clean and free of foreign material.

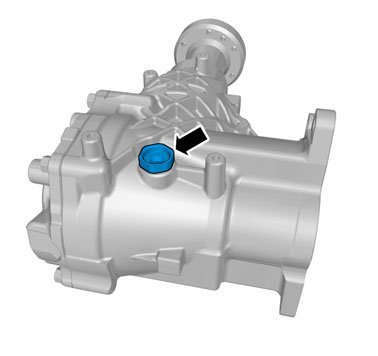

Note! Make sure that a new component is installed.

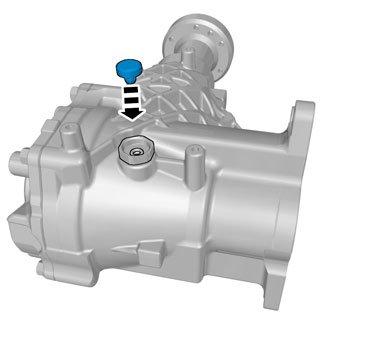

Torque: Transfer Case vent to Transfer Case, 6 Nm

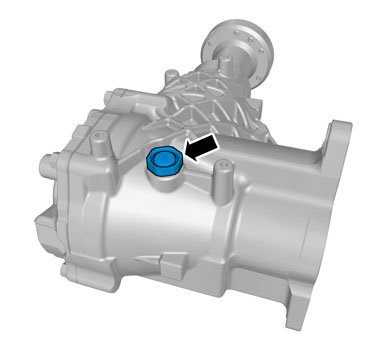

Note! Make sure that a new component is installed.




Torque: M6, 10 Nm

Install bevel gear Refer to: Bevel gear, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD Bevel Gear
