Sealing Ring, Driveshaft, Front Right

Operation number: 46625-2

Sealing ring, driveshaft, front right

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the drive shaft. Refer to: Drive shaft right, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S5, TF-80SC, B6324S5, TF-80SC AWD Driveshaft Right






Warning! Be prepared to collect escaping fluids.

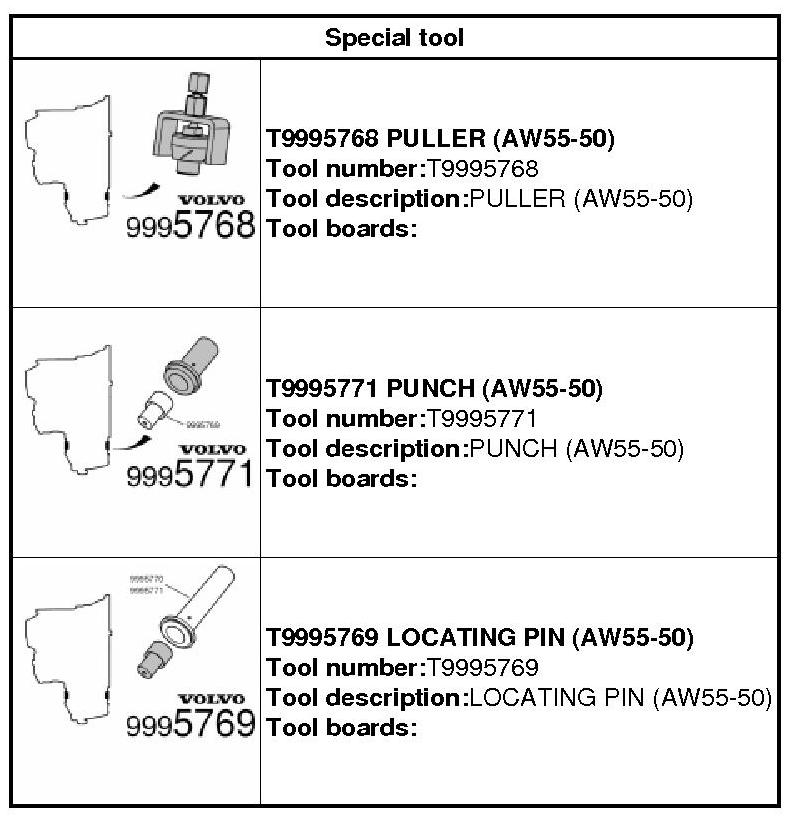

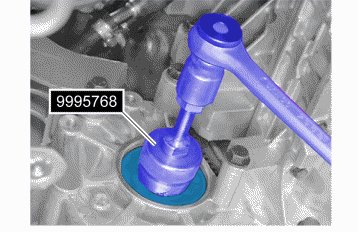

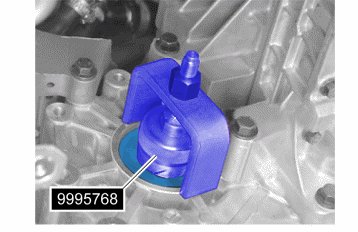

999 5768 Puller 999 5768 Puller





999 5768 Puller 999 5768 Puller

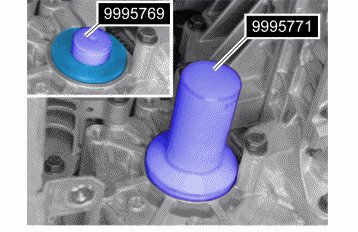

999 5771 Drift 999 5771 Drift
999 5769 Pilot 999 5769 Pilot

Installation

To install, reverse the removal procedure

Check the oil level. Refer to: Transmission oil level - checking, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S5, TF-80SC, B6324S5, TF-80SC AWD Checking Oil Level
