Support - Half Shaft/Short Shaft: Service and Repair






Operation number: 46631-346632-2

Halfshaft Bearing

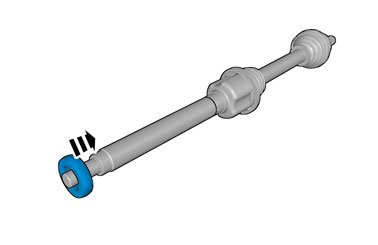

Removal

Remove the right drive shaft

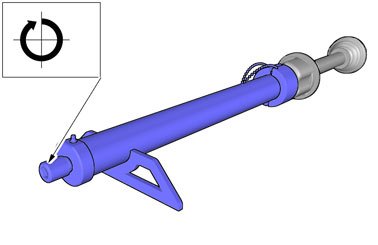

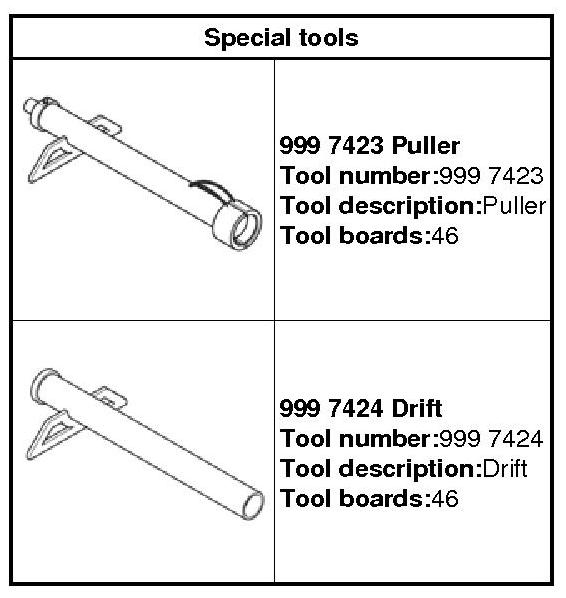

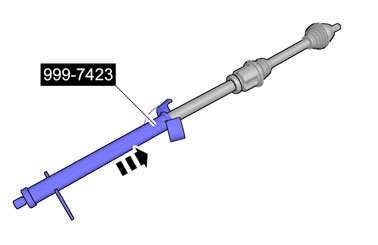

999 7423 Puller 999 7423 Puller









Warning! Wear ear protectors.

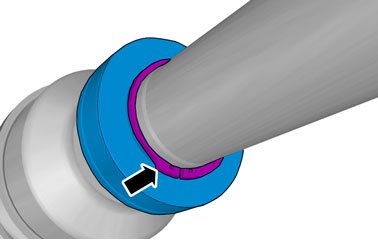

Installation

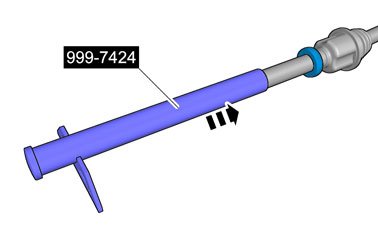

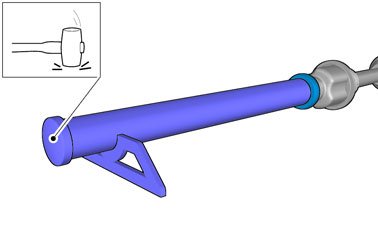

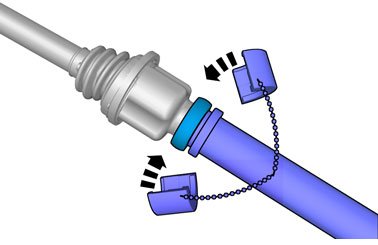

999 7424 Drift 999 7424 Drift





Warning! Wear ear protectors.

Install drive shaft right
