Airbag, Passenger Side

Operation number: 88428-2

Airbag, passenger side

Removal

Note! Removal steps in this procedure may contain installation details.

Perform battery disconnecting and connecting. Battery Disconnecting and Connecting





Follow instructions about safety information pyrotechnical system Refer to: Safety information pyrotechnical systems Service Precautions

Follow instruction for handling of non-deployed pyrotechnical part Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

Follow the instructions about positioning safety components. Refer to: Positioning safety labels

Remove glove compartment Refer to: Glove compartment Glove Compartment

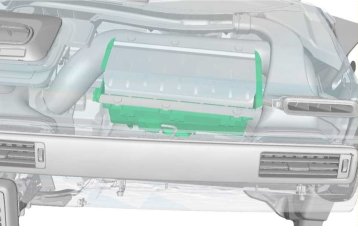

All vehicles

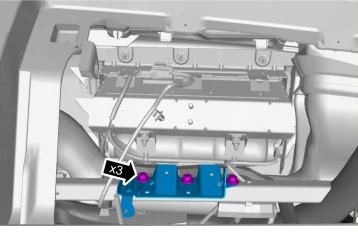

Torque: M6, 10 Nm

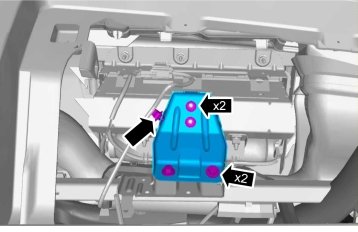

Torque: M6, 10 Nm

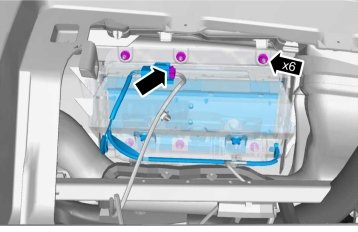

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Perform supplemental restraint system (SRS), post check Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
