Communications Control Module: Service and Repair

Operation number: 39405-2

Phone Module (PHM)

Removal

Note! Removal steps in this procedure may contain installation details.

Remove glove compartment Refer to: Glove compartment Glove Compartment

Vehicles with rear passenger entertainment system (RSE)

Remove the rear seat entertainment module (RSE) Refer to: Rear Seat Entertainment (RSE) Control Module Rear Seat Entertainment (RSE) Control Module

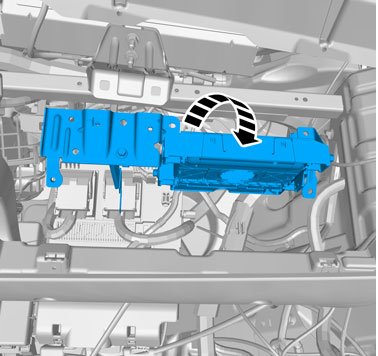

All vehicles

Caution! Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

Note! Make sure that the component terminals are not bent or damaged.

Torque: M6, 10 Nm

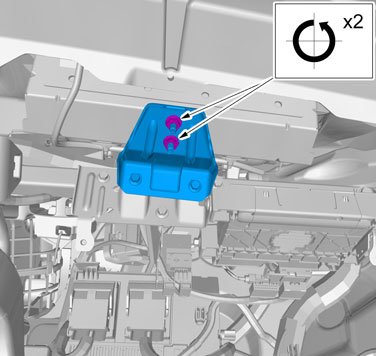

Vehicles with After Theft System for Vehicle Recovery (ATSVR)

Torque: M6, 10 Nm

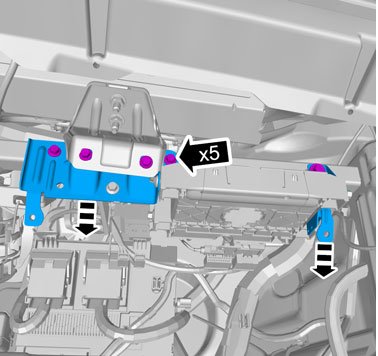

Caution! Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

Note! Note the position of each component before removal.

Note! Make sure that the component terminals are not bent or damaged.

Caution! Make sure that the component is secured with shear bolt (or bolts).

Torque: M6, 10 Nm

Note! Make sure that the component terminals are not bent or damaged.

Order and download appropriate software Programming and Relearning

Vehicles with Volvo On Call

Order and download appropriate software Programming and Relearning

Perform Volvo on call, activation Refer to: Volvo On Call, activation Volvo on Call, Activation

Perform Volvo on call, reactivation Refer to: Volvo On Call, re-activation Volvo on Call, Re-Activation

Perform Volvo on call, activation Refer to: Volvo On Call, activation Volvo on Call, Activation

All vehicles

Installation

To install, reverse the removal procedure.

Order and download appropriate software Programming and Relearning
