Procedures

Metal pedals



























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Metal pedals





- Clean if necessary.

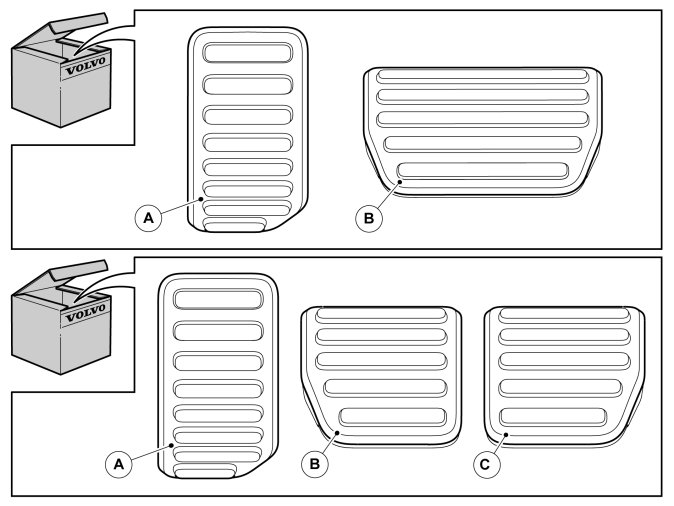

- Take the accelerator pedal cover (A) from the kit.
- Hook the cover onto the long side of the accelerator pedal.


A

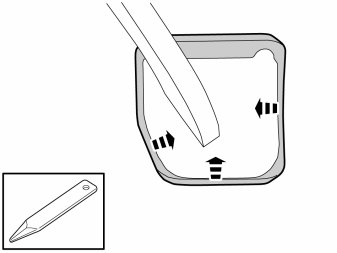

- Press the cover against the pedal at the same time as folding the cover's edges over using a weatherstrip tool.

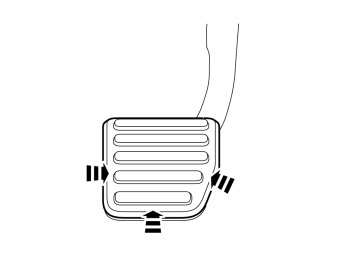

- Check, using a mirror, that the edges of the cover have covered the pedal.
- Pull at the cover and check that it is secure.

B






Applies to cars with an automatic transmission

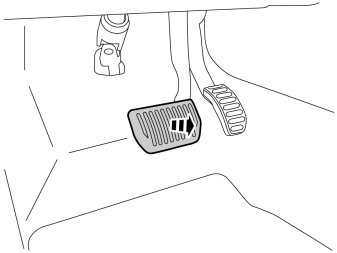

- Remove the pedal cover by grasping at the lower edge and pulling off at the rear edge.

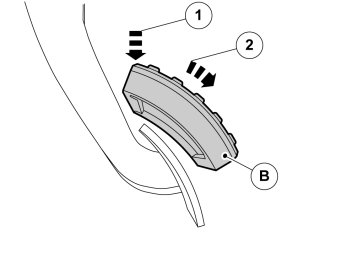

- Take the brake pedal cover (B) from the kit.
- Hook the cover on at the upper edge.


A




- Press the cover against the pedal at the same time as folding the cover's edges over using a weatherstrip tool.

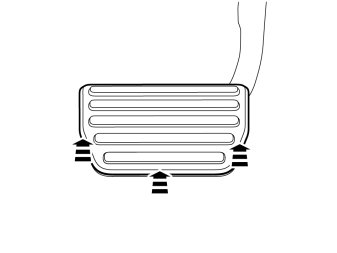

- Check, using a mirror, that the edges of the cover have covered the pedal.
- Pull at the cover and check that it is secure.

B






Applies to cars with manual gearbox

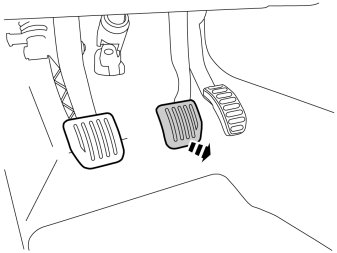

- Remove the pedal cover by grasping at the lower edge and pulling off at the lower edge.

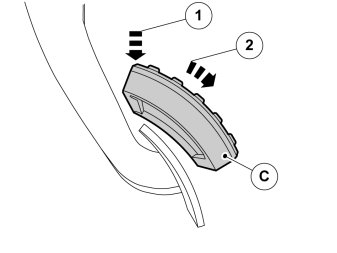

- Take the brake pedal cover (C) from the kit.
- Hook the cover on at the upper edge.


A

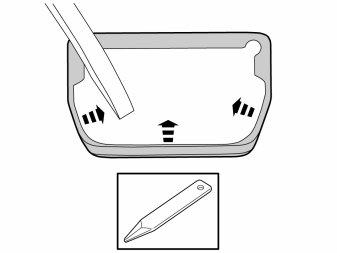

- Press the cover against the pedal at the same time as folding the cover's edges over using a weatherstrip tool.
- Check, using a mirror, that the edges of the cover have covered the pedal. Pull at the cover to check that it is secure.
- Repeat the steps for the clutch pedal.

B
