Tail Lamp: Service and Repair

Operation number: 35310-2

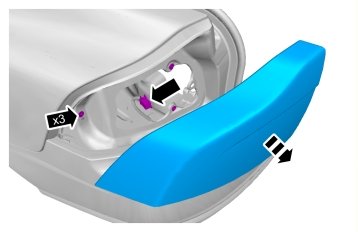

Tail lamp

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the side panel Refer to: Side panel loadspace Side Panel Loadspace

See the information regarding component location, tail lamp Refer to: Location of components, tail lamp. Locations




Torque: Tail lamp, 10 Nm

Installation

To install, reverse the removal procedure.
