Blower Motor: Service and Repair

Operation number: 87306-2

Blower motor passenger compartment






Removal

Note! Removal steps in this procedure may contain installation details.

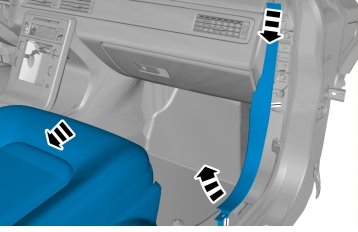

Remove the combined instrument panel Refer to: Combined instrument panel Combined Instrument Panel

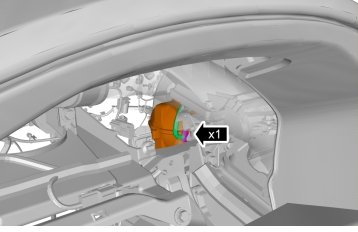

Remove control module relay box passenger compartment Refer to: Control module relay box passenger compartment Service and Repair








Torque: M8, 24 Nm

Remove air quality sensor Refer to: Air quality sensor, L.H.D Service and Repair













Caution! Take extra care when handling the component.

999 7284 Wrench 999 7284 Wrench




If necessary





Caution! Take extra care when handling the component.

Installation

To install, reverse the removal procedure.

Perform climate unit, checking Refer to: Climate control system, check Climate Control System, Check
