Home >> Volvo >> 2012 >> S80 AWD L6-3.0L Turbo VIN 90 B6304T4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> System Diagram >> Wiper/Washer Windshield

Wiper/Washer Windshield

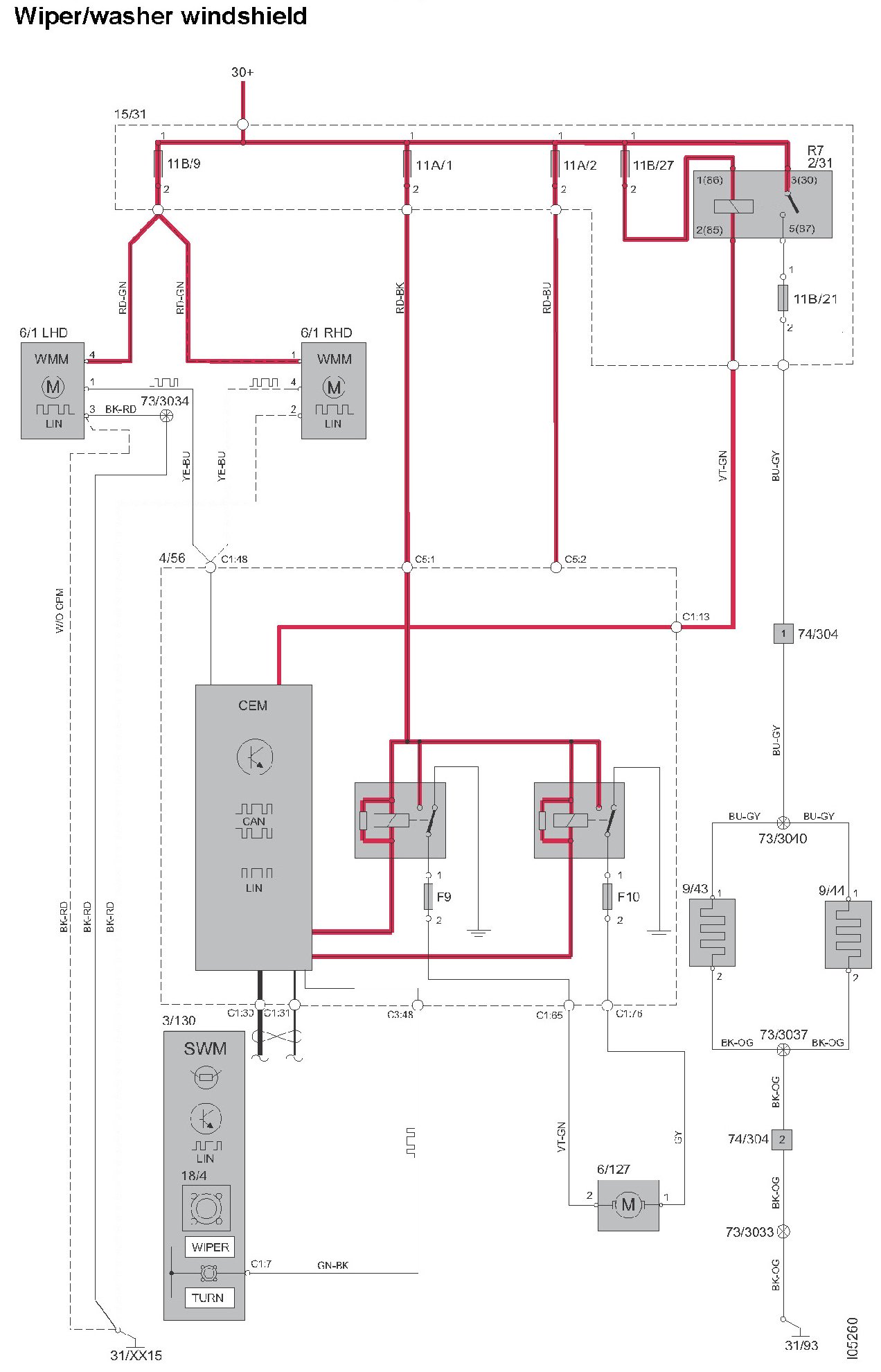

Wiper/washer Windshield







Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
