Mirrors, Auto Dimming With Compass

Mirrors, auto dimming with compass



























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Mirrors, auto dimming with compass

Note! Some steps in these installation instructions are presented with illustration only.





- Turn the ignition key to position 0.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

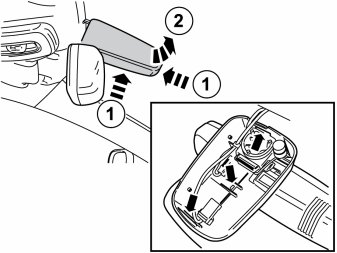

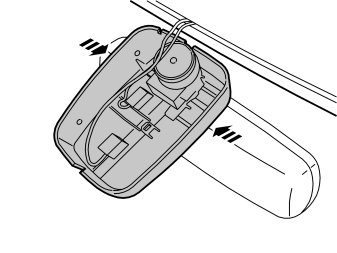

- Press the front edge and the underside of the cover, then carefully pull both sides loose from each other.

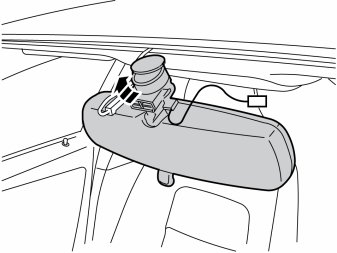

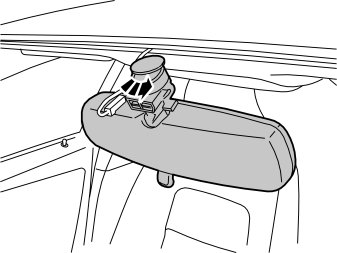

- Remove the rearview mirror from the windscreen by turning it anticlockwise until it releases from the mounting.

Note! Grip the mounting (not the mirror), and turn.

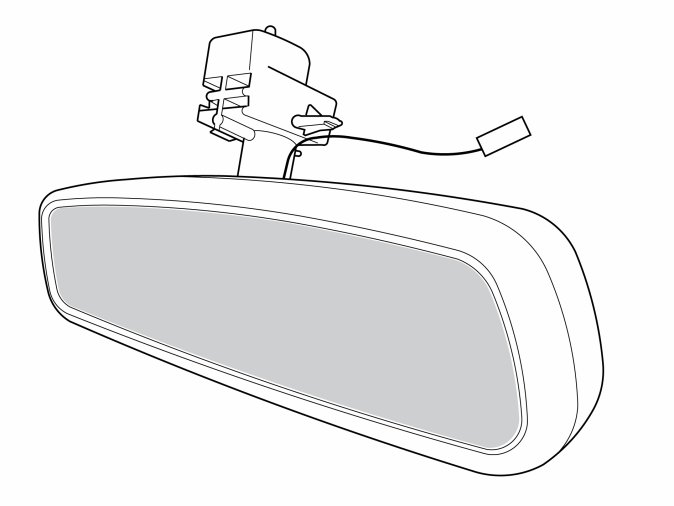

Place the mirror to one side, there is a new one in the kit.


















- Download the software for the accessory's function following the service information in VIDA.
- Calibrate the compass according to the car's instruction book.
