Part 2

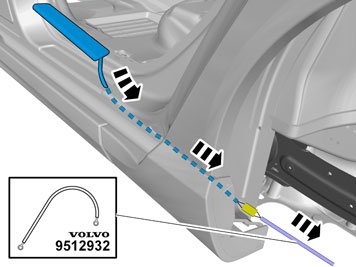

Install component that comes with the accessory kit.

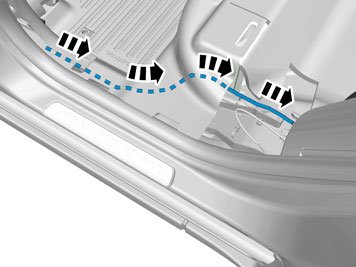

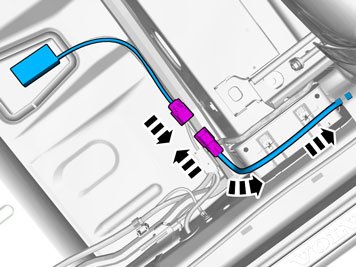

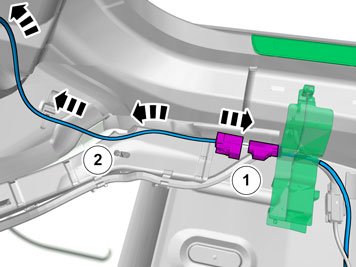

Route the cable harness to the existing cable harness.

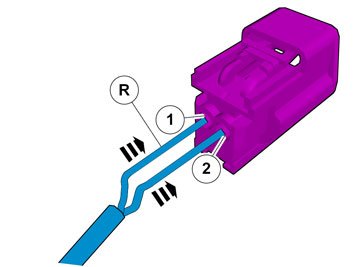

Connect the connectors.








Tear off the excess foam tape.

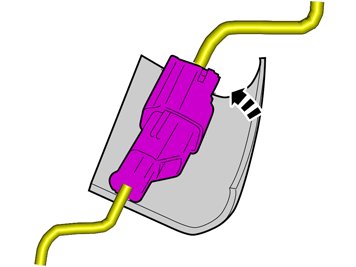

Connect the connector.
Route the cable harness to the existing cable harness.








Tear off the excess foam tape.




Route the cable harness to the existing cable harness.

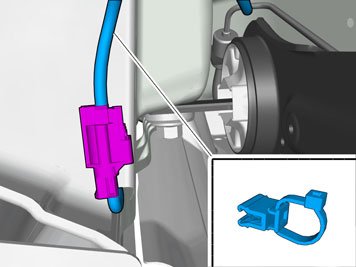

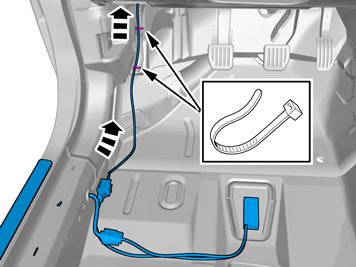

Attach the wiring, using clips.




Connect the cable harness.

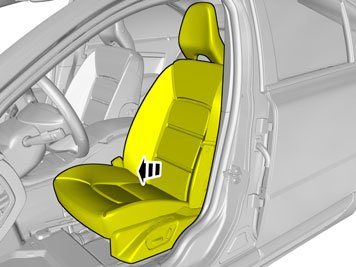

Applies to the driver's side

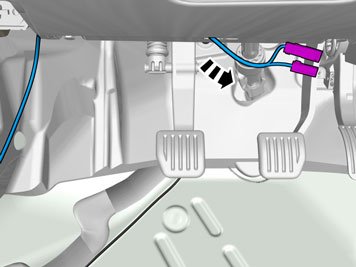

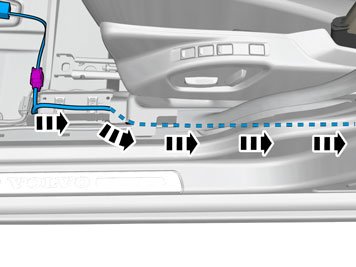

Route the cable harness to the existing cable harness.

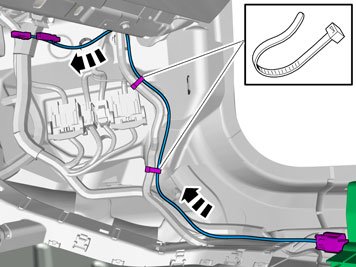

Attach the wiring, using clips.








Tear off the excess foam tape.




Pull the wiring through.

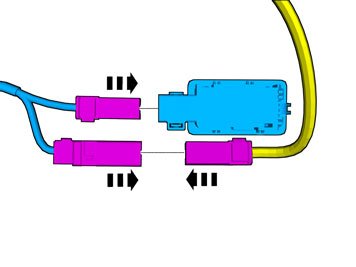

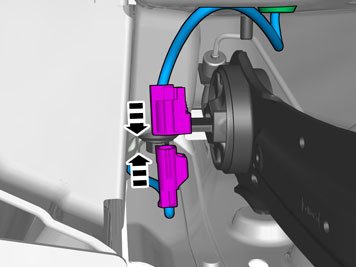

Connect the connectors.

Removal

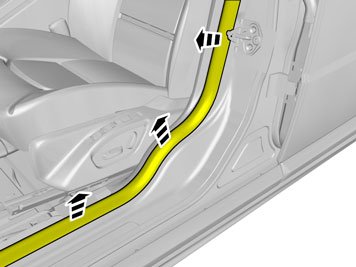

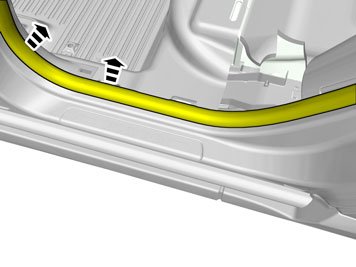

Remove the weatherstrip.




Disconnect any connector(s).

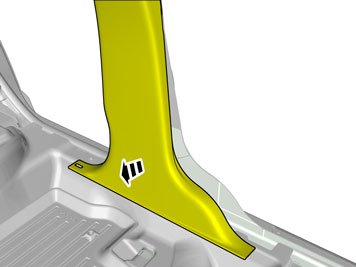

Remove the panel.




Remove the weatherstrip.

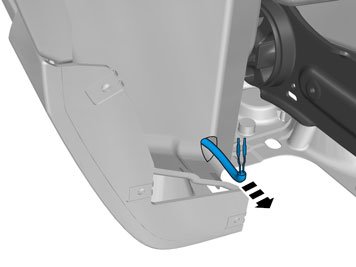

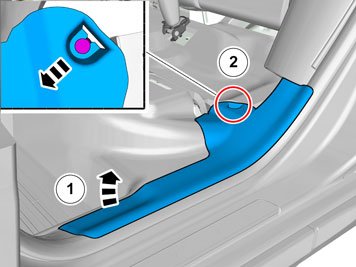

Detach the panel.








Clean the surface.

Use: Isopropanol, 1161721

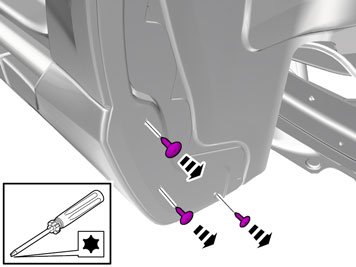

Remove the screws.

Installation

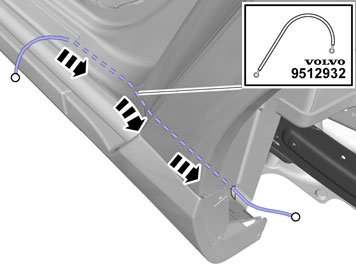

Pull the wiring through.

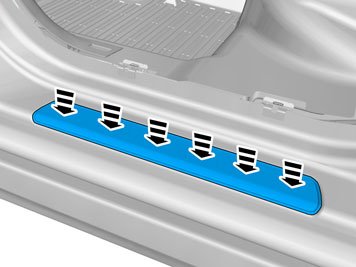

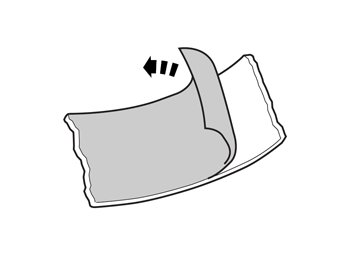

Partly fold back the transparent foil to expose the sticky surface.




Remove the protective film.




Remove the protective film.








Connect the connectors.




Route the cable harness to the existing cable harness.

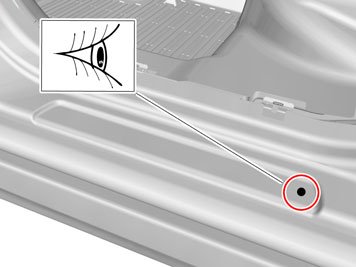

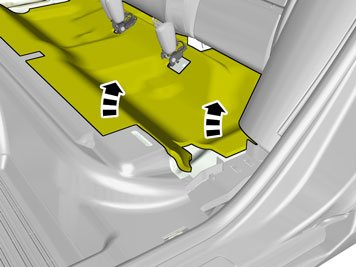

Fold the insulation to one side.

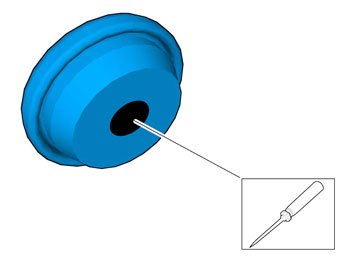

Use: Awl.

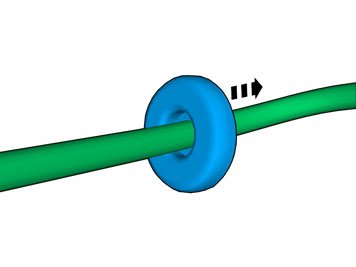

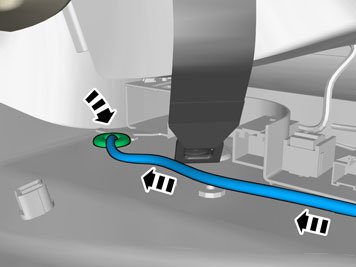

Pull the wiring through.

Use: Low temperature grease, 1161427




Pull the wiring through.








Connect the connectors.




Attach the wiring, using clips.

Caution! Make sure to locate the wiring in such a way that contact with any moving components is avoided.

Caution! Make sure to locate the wiring in such a way that any damage caused by heat or excessive wear is avoided.

Installation

Reinstall the removed parts in reverse order.
