Part 1

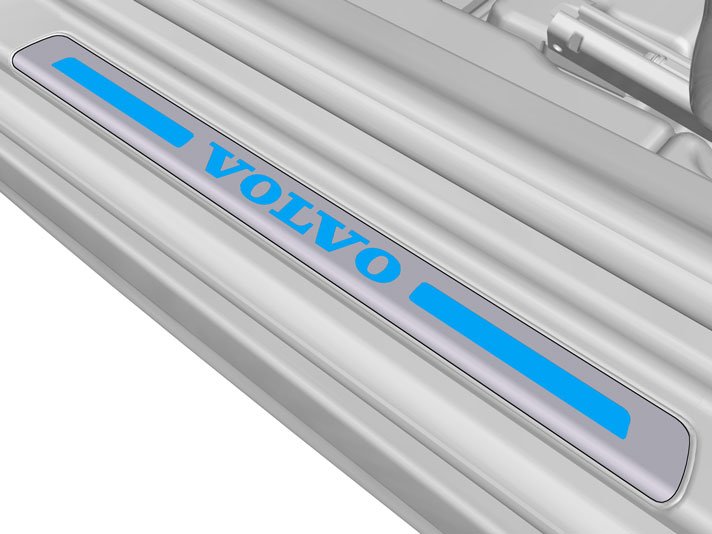

Sill molding, illuminated

Equipment

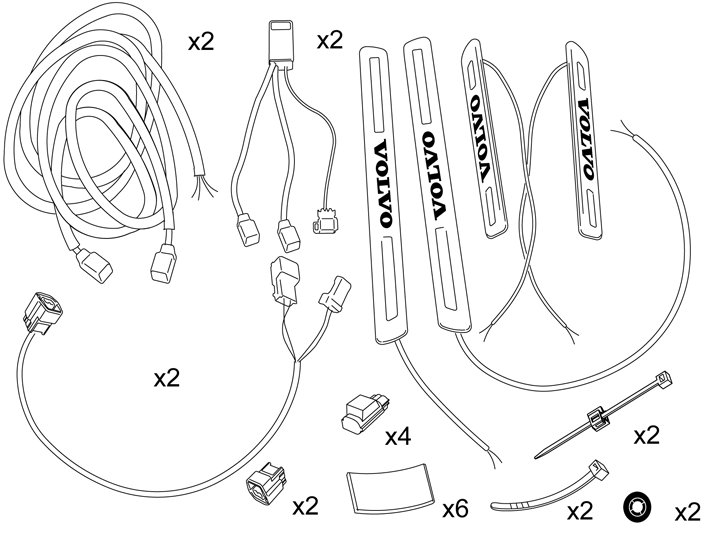

Kit contents









Operation number: 84502






Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions





Removal

When removing on right-hand drive cars, perform the procedures on the opposite side and/or mirrored.




Remove the panel.




Remove the weatherstrip.




Detach the panel.




Detach the panel.




Remove the panel.








Remove the screws.
Remove the panel.




Disconnect the connector.








Remove the panel.




Detach and fold back the floor covering.

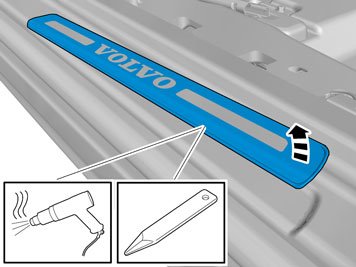

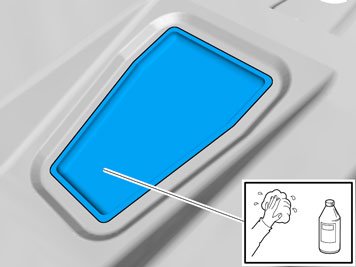

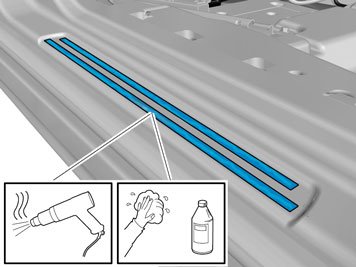

Clean the surface.

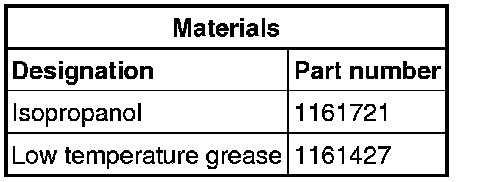

Use: Isopropanol, 1161721









Repeat the steps when removing on opposite side.

Applies to the left-hand side:

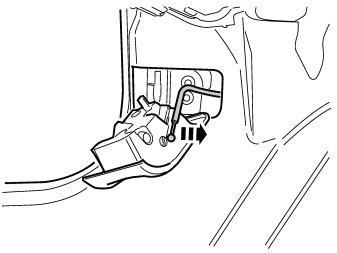

Remove the screw.





Applies to the driver's side








Disconnect the connector.

Installation

When installing on right-hand drive cars, perform the procedures on the opposite side and/or mirrored.

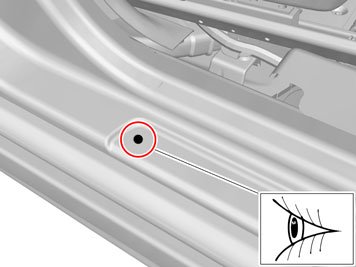

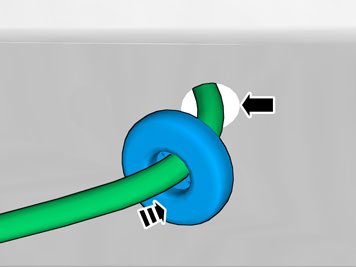

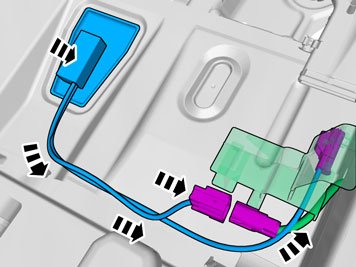

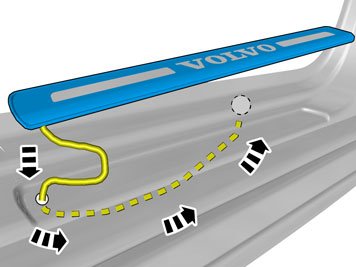

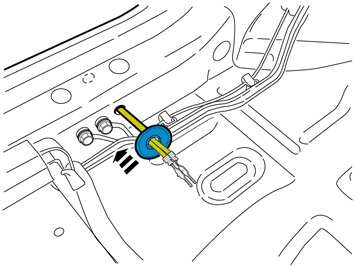

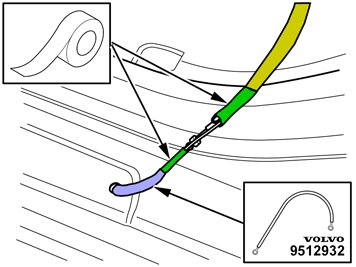

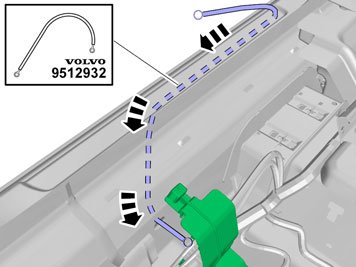

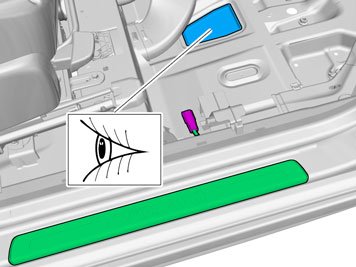

Pull the wiring through.

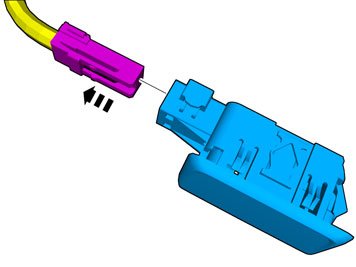

Connect the cable harness terminals in the connector as follows.

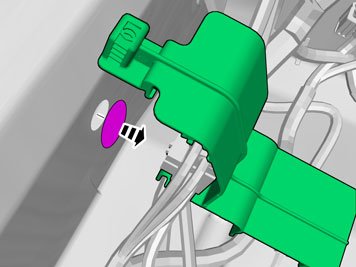

Depress the secondary lock.

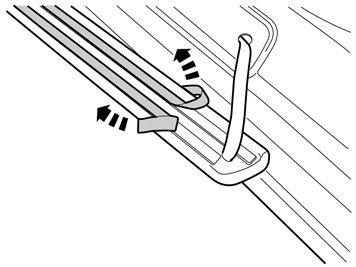

Partly fold back the transparent foil to expose the sticky surface.




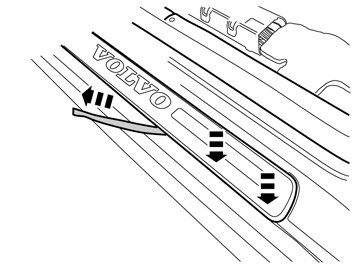

Remove the protective film.




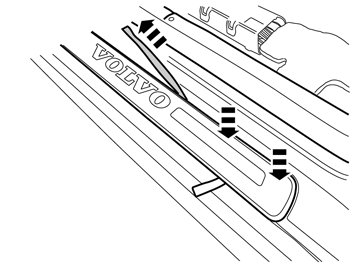

Remove the protective film.












Clean the surface.

Use: Isopropanol, 1161721




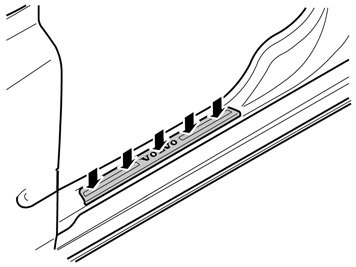

Remove the protective film.
