Headliner: Service and Repair

Headlining

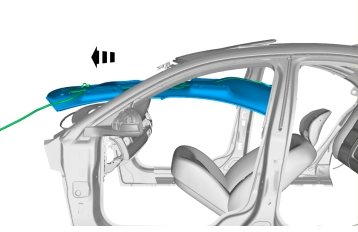

Removal

Note! Removal steps in this procedure may contain installation details.








On both sides.




On both sides.




On both sides.




On both sides.












On both sides.













Remove the following items:
- B-pillar trim panel Refer to: B-pillar trim panel B-Pillar Trim Panel

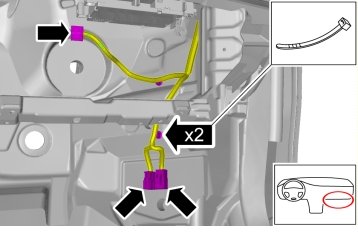

- the glove compartment Refer to: Glove compartment Glove Compartment

Vehicles with roof opening panel





All vehicles

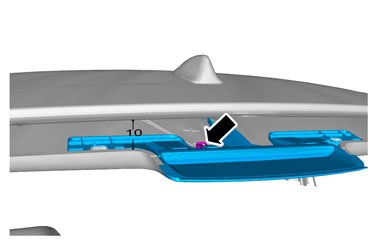

Torque: M6, 10 Nm

Vehicles with Headliner Cellular Phone Microphone





All vehicles




Torque: M6, 10 Nm

On both sides.

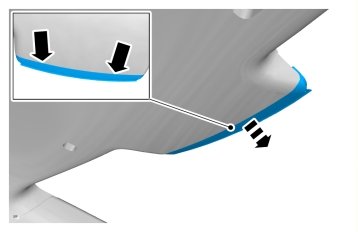

Caution! Take extra care not to damage the edges of the component.

Remove windshield Refer to: Windshield Windshield





Note! This step requires the aid of another technician.





Caution! Take extra care not to crease the headliner.

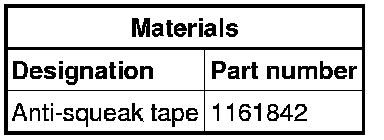

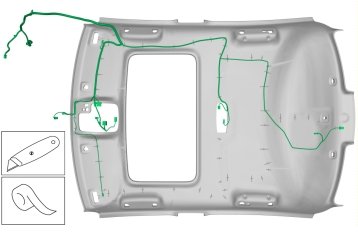

Use: Anti-squeak tape, 1161842

Installation

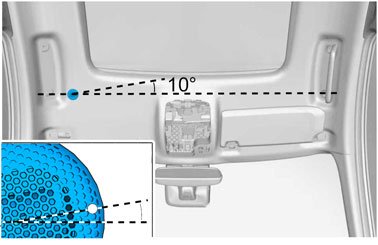

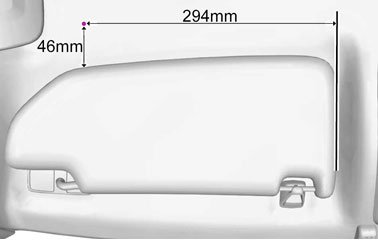

Vehicles with Headliner Cellular Phone Microphone

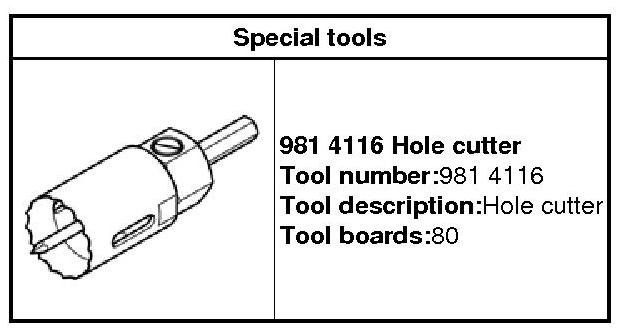

981 4116 Hole saw 981 4116 Hole Saw

















All vehicles

To install, reverse the removal procedure.
