Trim Panel Centre Stack

Trim panel center stack



























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

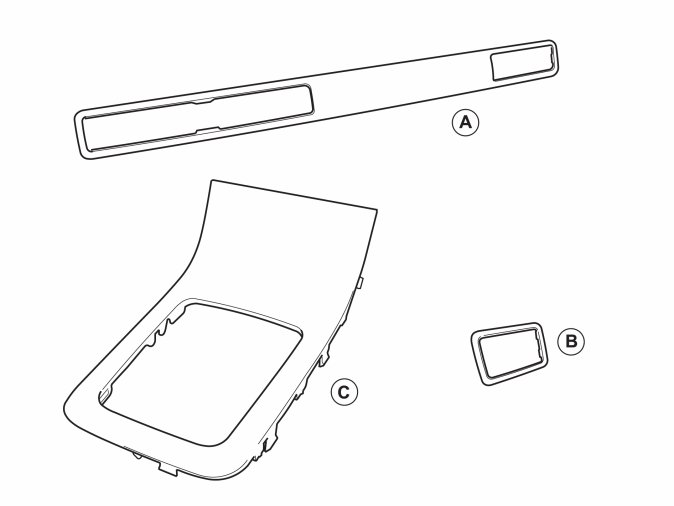

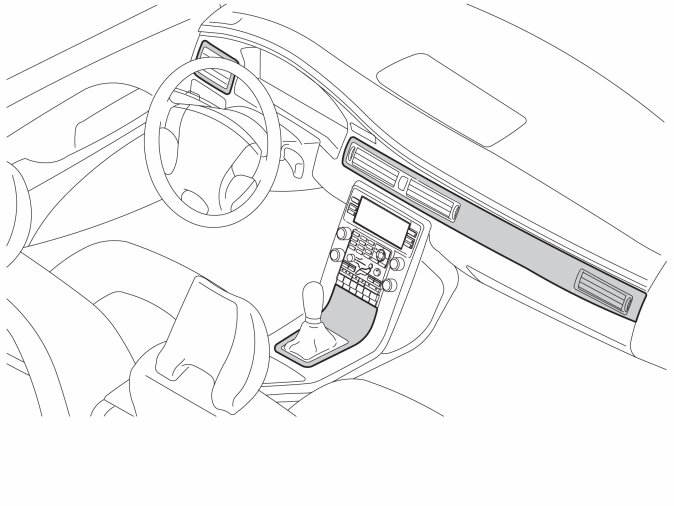

Trim panel center stack

Installing the right-hand trim panel

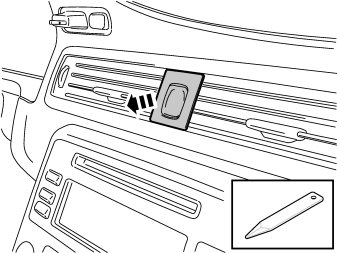

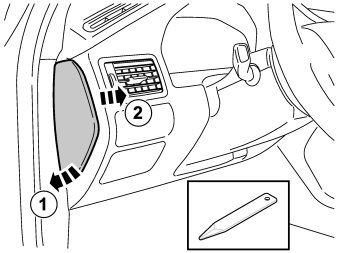

- Prize away the holder for the switch at the lower edge.
- Then prize at the upper edge while coaxing and pulling it out.

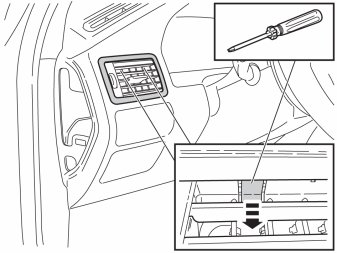

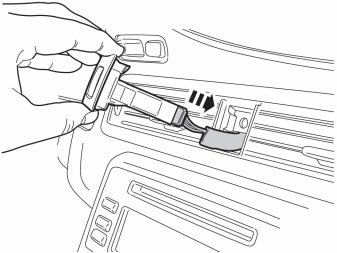

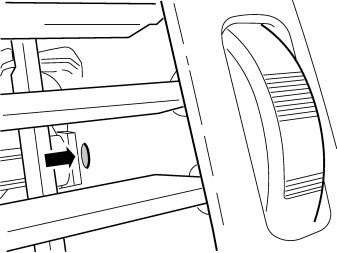

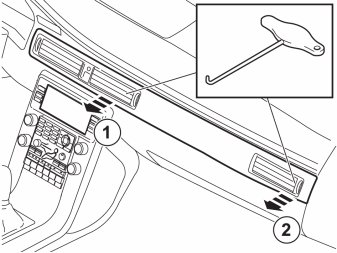

- Locate the holes. Pull the panel with air vents straight out.





- Use special tool P/N 9512943.

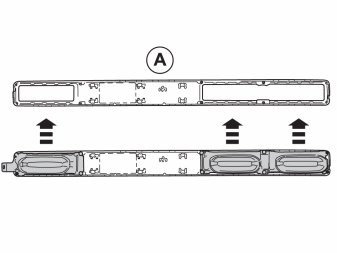

- Transfer the air vents and screws over to the new trim panel.

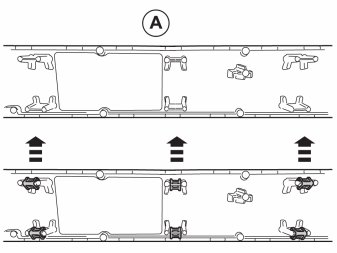

- Transfer the clips over to the new trim panel.

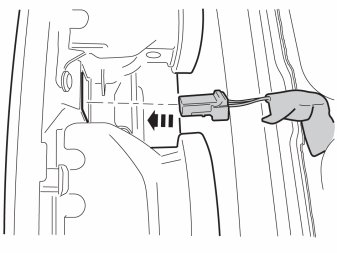

- Thread the connector through the trim panel.

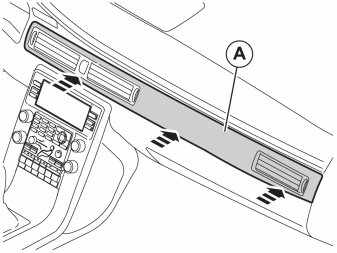

- Press in the trim panel.

Install:

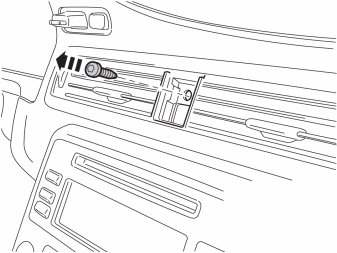

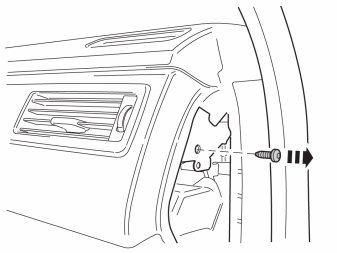

- the screws
- the end face panel
- the switch with holder.

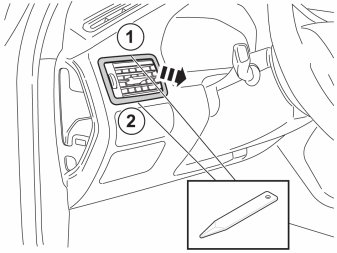

Installing the left-hand trim panel

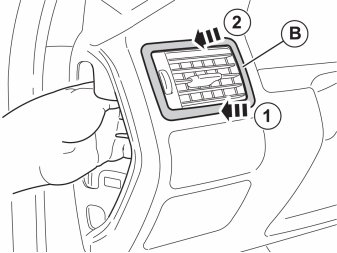

- Firmly hold the air vent from inside when installing the new trim panel.

Installing the gear lever panel.

Applies to cars with manual gearbox

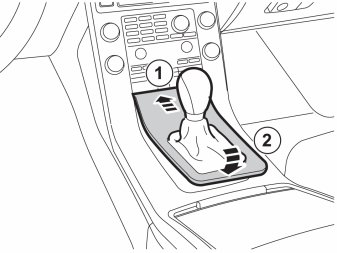

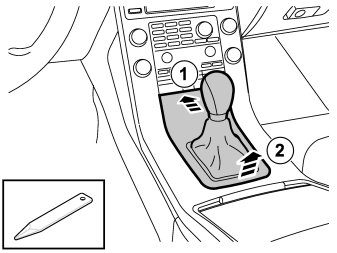

- Press in the front edge of the panel to increase the space at the rear edge.





- Using a weatherstrip tool, prize so that the catches loosen from the gaiter and press the gaiter's inner frame at the same time. Remove the panel.

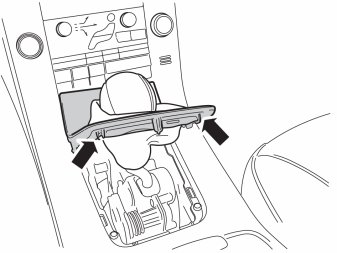

- Take the new gear lever panel, make sure that the four catches fasten on the gaiter's inner frame.





- Install the gear lever panel.

Applies to cars with automatic gearbox

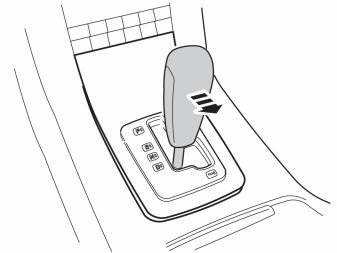

- Move the gear selector to position D.

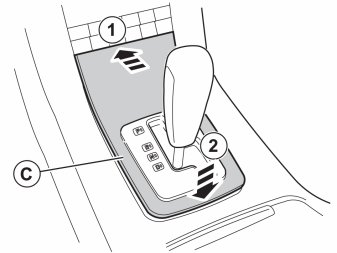

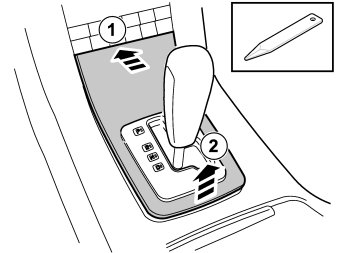

- Press in the front edge of the panel to increase the space at the rear edge. Remove the panel.





- Install the new gear selector panel.
