Decor Panel Kit

Decor panel kit

Equipment

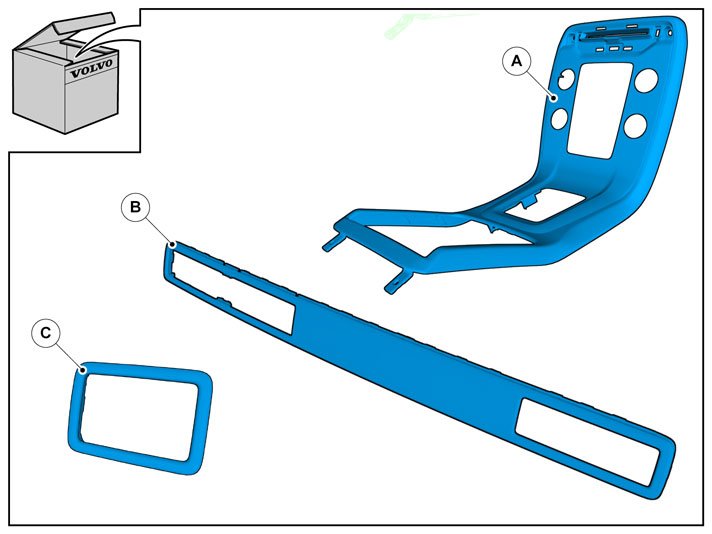

Kit contents









Operation number: 88131

Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Removal

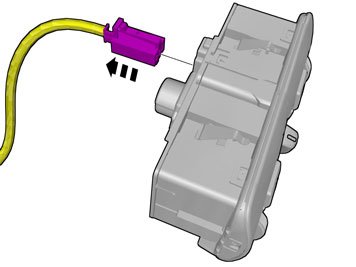

Disconnect the connector.

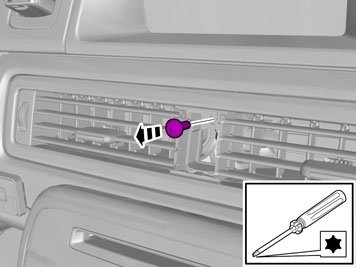

Remove the screw.

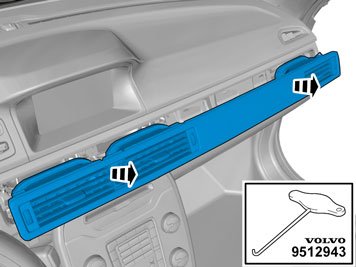

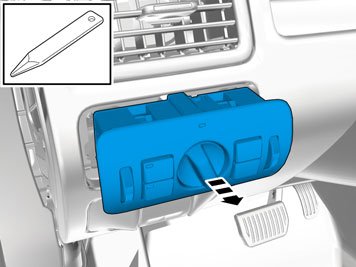

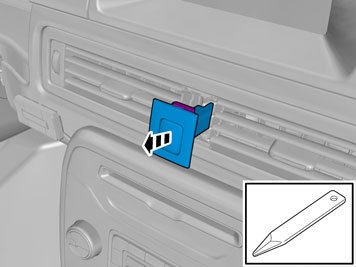

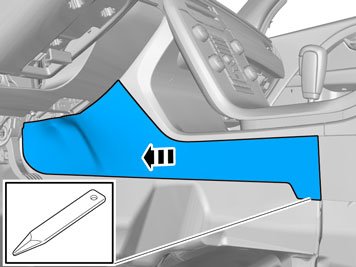

Remove the panel.

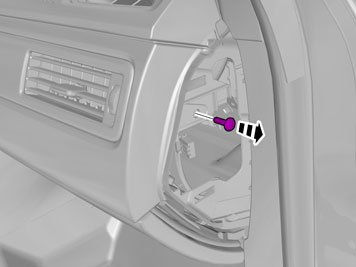

Remove the screw.

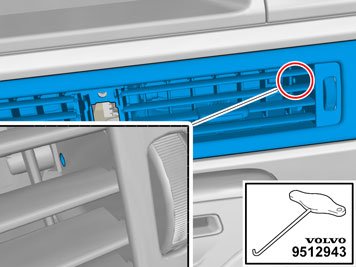

Detach the panel.

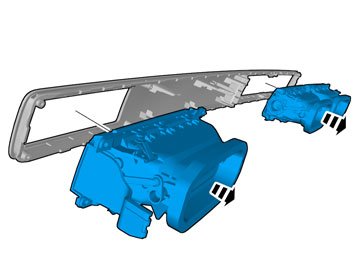

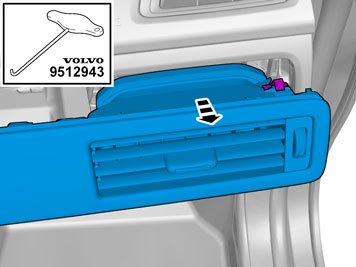

Remove the panel.




Remove the screws.





Installation





Reinstall the removed parts in reverse order.

Removal

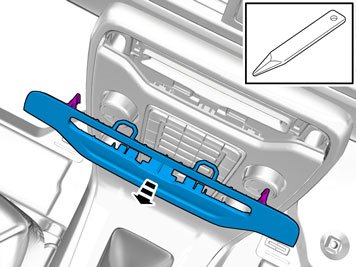

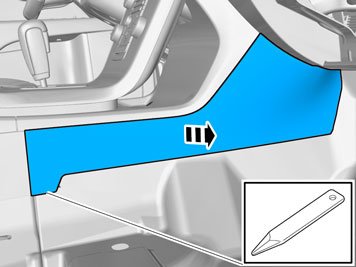

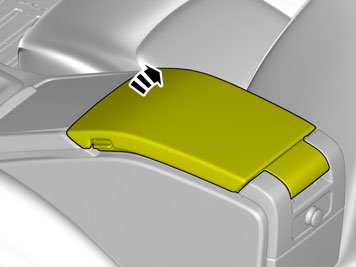

Remove the panel.

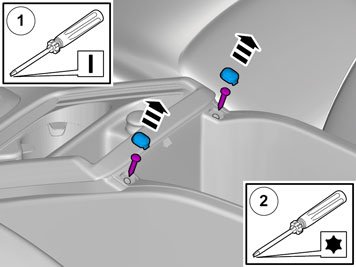

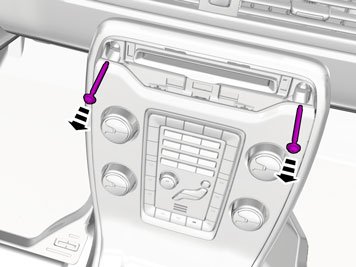

Remove the screws.




Remove the screws.

Cars with manual transmissions




Release the lock ring which is located inside the gear lever boot.




Release the lock.

Cars with automatic transmissions








Release the shift-lock function.

Vehicles with the 4C system.




Remove the panel.




Disconnect the connector.

All vehicles

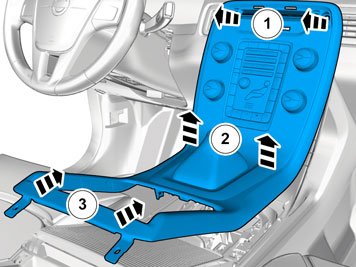

Remove the panel.





Detach the following items:
1. Fold the carpet to the side.

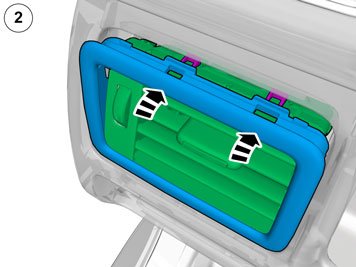

2. Remove the cable harness clips.
3. Disconnect the connector.








Remove the screws.





Caution! Be careful not to damage the catches.

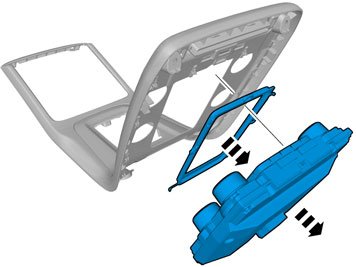

Remove the panel.




Unhook the cable harness clips.
Disconnect the connector.

Vehicles with the 4C system.





All vehicles

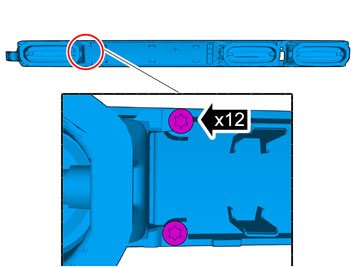

Remove the screws.





Installation





Reinstall the removed parts in reverse order.

Removal

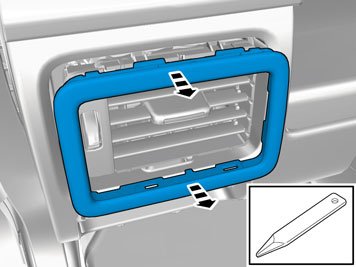

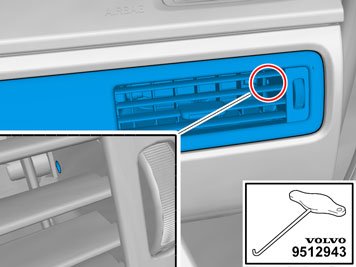

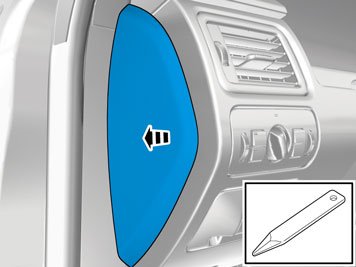

Remove the panel.

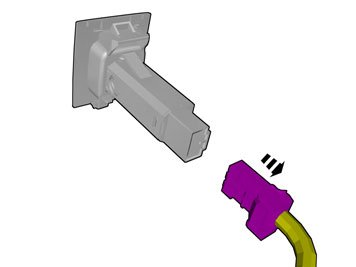

Disconnect the connector.

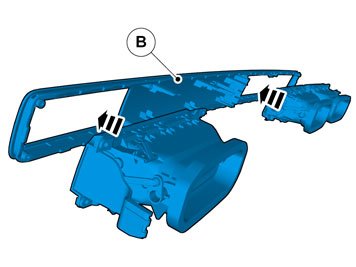

Remove the panel.

Installation

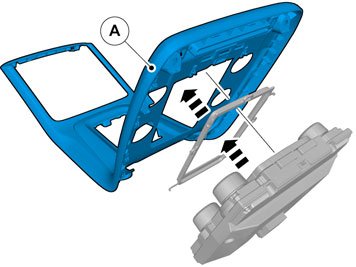

Install the panel.




Install the panel.

Reinstall the removed parts in reverse order.
