Rear Door: Service and Repair

Operation number: 83112-2

Side door rear

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Lift mechanism, rear door Refer to: Lift mechanism, rear door Service and Repair
- Side window fixed, rear
- Door stop front side door Refer to: Door stop front side door Service and Repair
- Window, rear door Refer to: Window, rear door Window, Rear Door
- lower trim strip, rear door Refer to: Lower trim strip, rear door
- weatherstrip, side door, rear Refer to: Seal strip side door rear Service and Repair

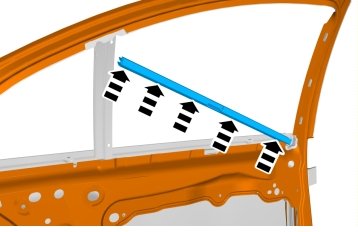

Caution! Make sure that the component is not bent.

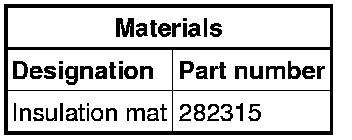

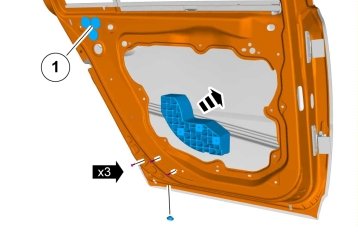

Use: Insulation mat, 282315

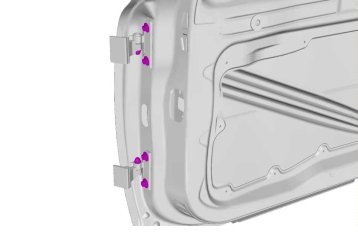

Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.

Follow the instructions regarding corrosion protection Refer to: Rustproofing
