Radio, Stereo, and Compact Disc: Service and Repair

Satellite radio























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Satellite radio

Note! This accessory requires software unique to the car.





- Lift out the cargo compartment carpet.

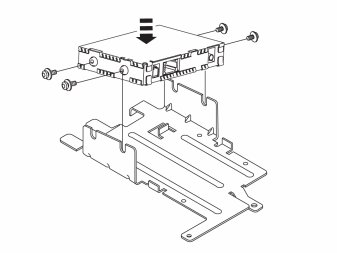

- Install the Sirius unit on the bracket with four screws and washers from the kit.

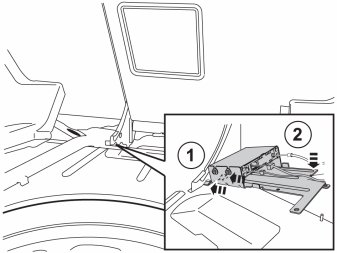

- Insert the two legs of the bracket in the corresponding recesses in the backrest bracket and lower it over the retaining pin in the floor.

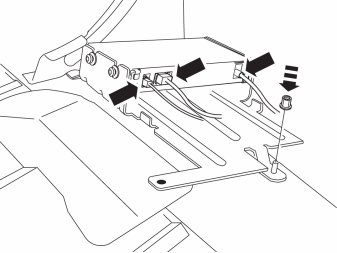

- Secure the bracket using a plastic nut from the kit.
- Plug the connectors of the pre-routed cables into the Sirius unit. The pre-routed cables are located near the bracket.





- Reinstall the cargo compartment carpet.





- Programme the software.
