Part 2

Note! Ensure that the part is correctly positioned against the panel's surface.

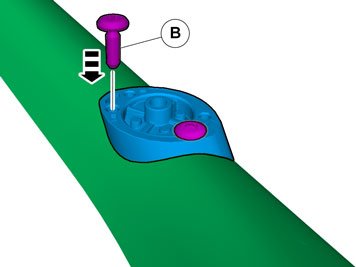

Install the screw.





Note! Ensure that the part is correctly positioned against the panel's surface.

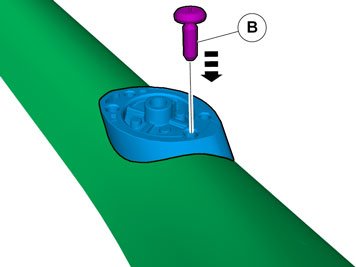

Install the screw.








Remove the screws.

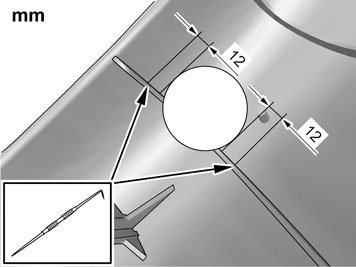

Scribe/mark up








Adjust the cable length so that the marking ends up as displayed in the image.

Right-hand drive vehicles




Adjust the cable length so that the marking ends up as displayed in the image.

All vehicles

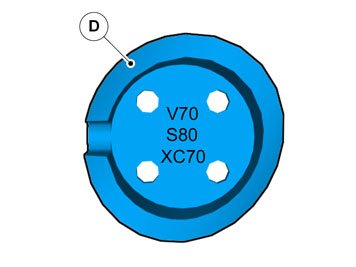

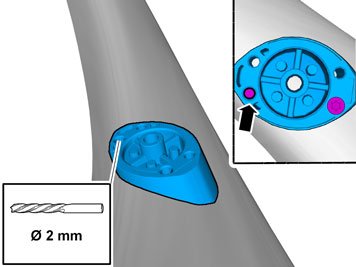

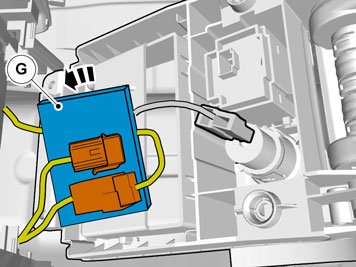

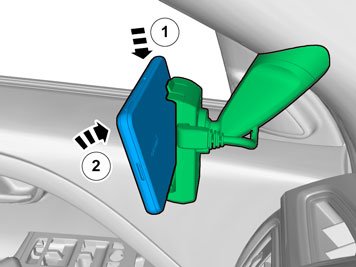

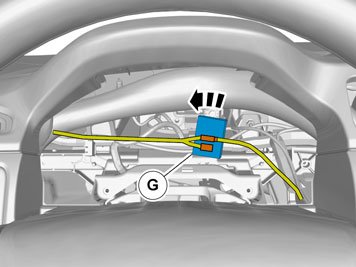

Install component that comes with the accessory kit.




Install the screws.

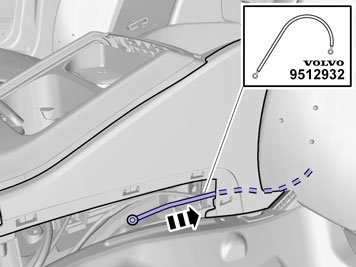

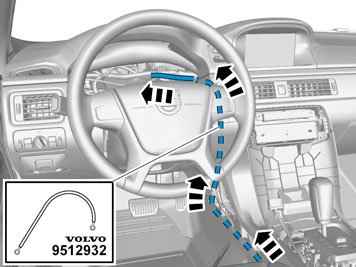

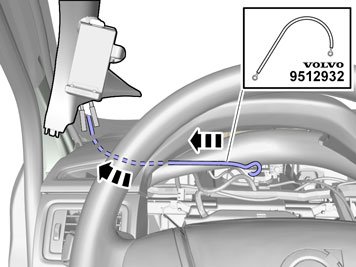

951 2932 Tension spring 951 2932 Tension Spring








Pull the wiring through.

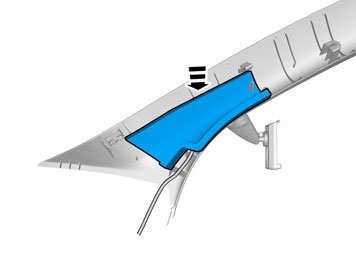

Install the panel.




999 8081 TORQUE GAUGE 0-6 Nm 999 8081 Torque Gauge 0-6 NM
Install the screw.

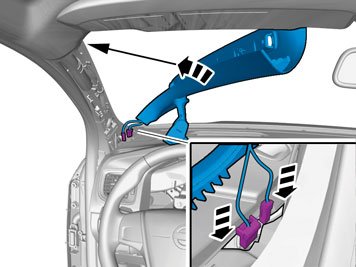

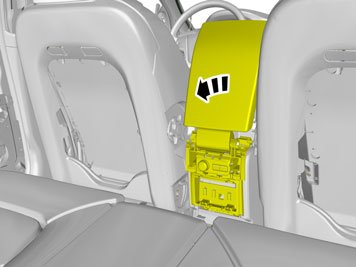

Remove the panel.




Remove the panel.

Right-hand drive vehicles

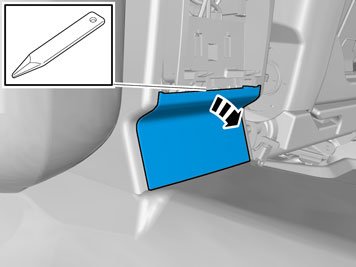

Remove the panel.

All vehicles

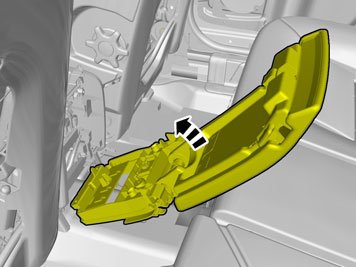

Remove the panel.

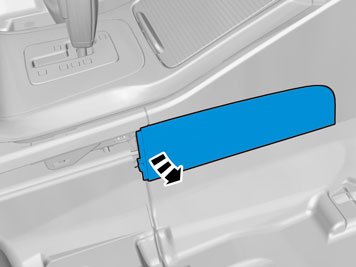

Remove the panel.

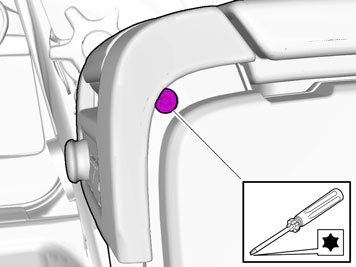

Remove the screw.
On both sides.

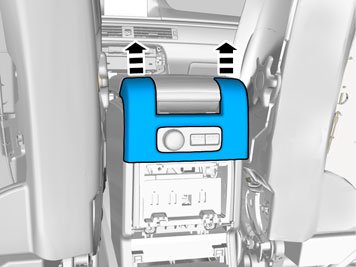

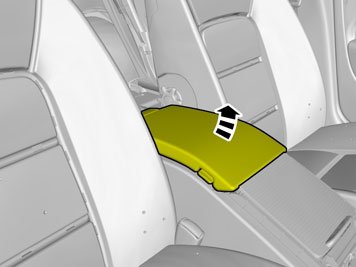

Remove the panel.

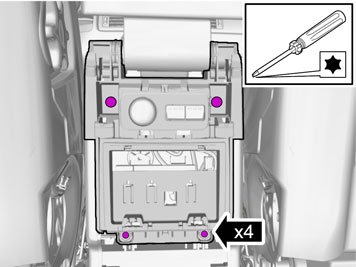

Remove the screws.

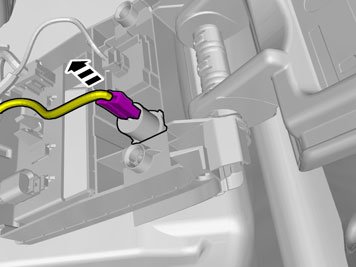

Disconnect the connector.




951 2932 Tension spring 951 2932 Tension Spring

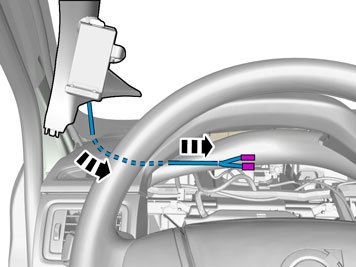

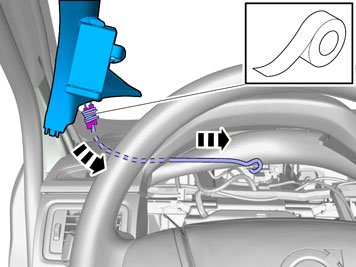

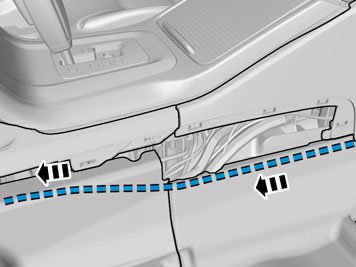

Pull the wiring through.

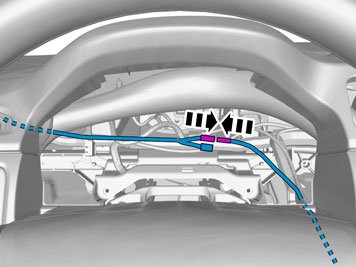

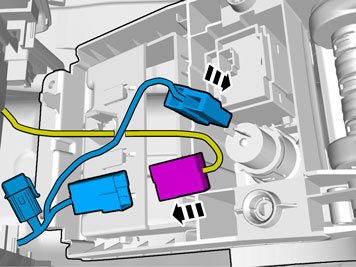

Connect the connectors.

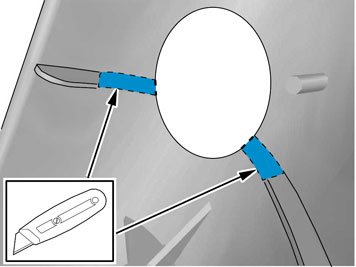

Tear off the excess foam tape.












Reinstall the screws.








951 2932 Tension spring 951 2932 Tension Spring





Right-hand drive vehicles




951 2932 Tension spring 951 2932 Tension Spring





All vehicles




Place any excess inside the floor carpet.




Connect the connectors.

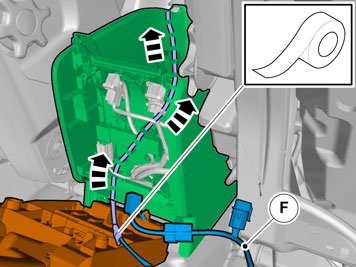

Tear off the excess foam tape.

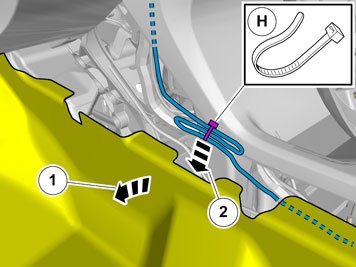

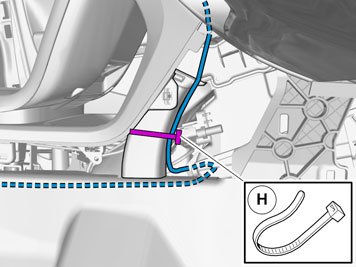

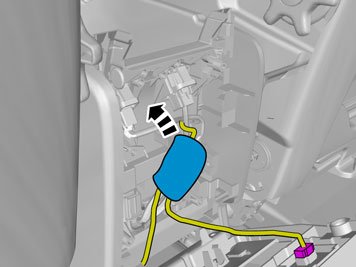

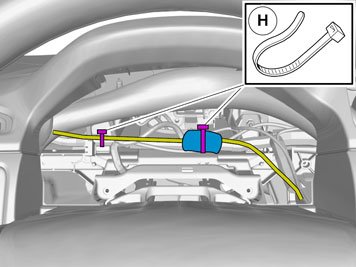

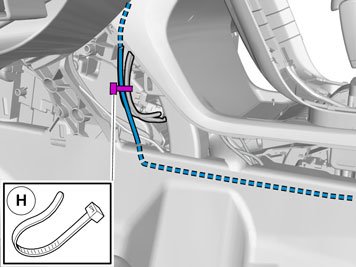

Attach the wiring, using clips.
Reinstall the removed parts in reverse order.
