Part 1

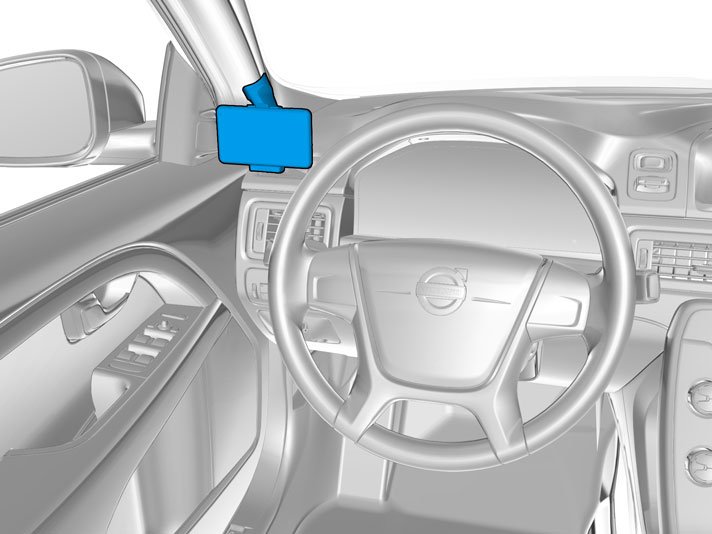

Navigation system, portable

Equipment










































Kit contents









Operation number: 39730






Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.

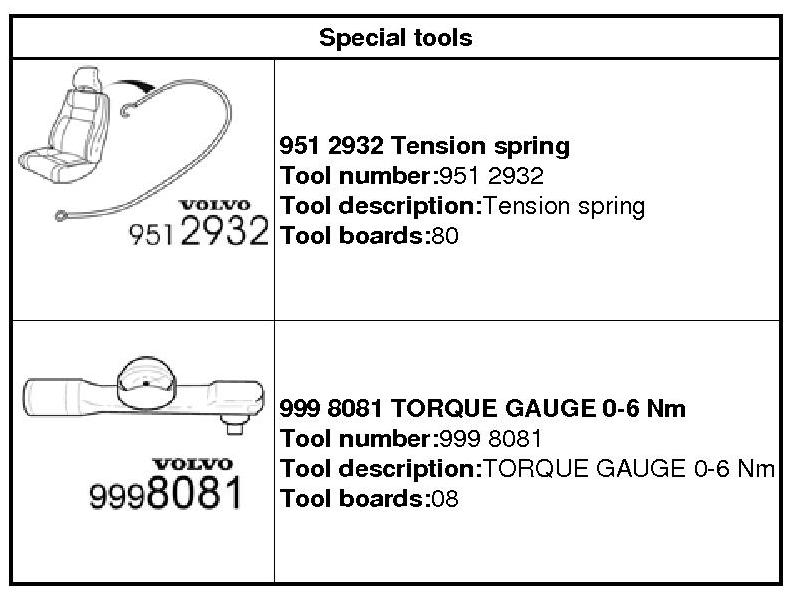

- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions

Where the procedure differs, the right-hand version is also shown with text and image.




Set the ignition key to position 0.

Removal




Remove the panel.




Release the lock.








Remove the panel.




Remove the screws.




Disconnect the connector.








Remove the screw.

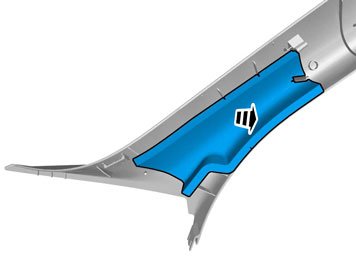

Remove the panel.

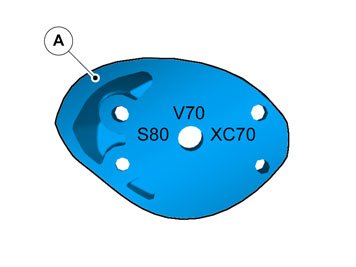

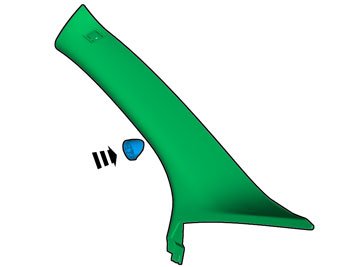

Install component that comes with the accessory kit.

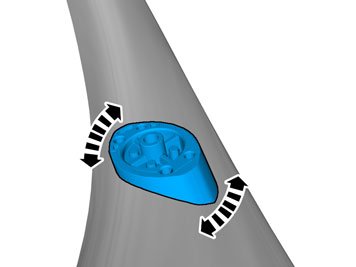

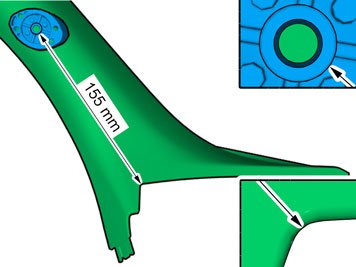

Note! Ensure that the part is correctly positioned against the panel's surface.
