Portable Navigation System Installation Kit
Navigation system, portable, installation kit TMC
Equipment

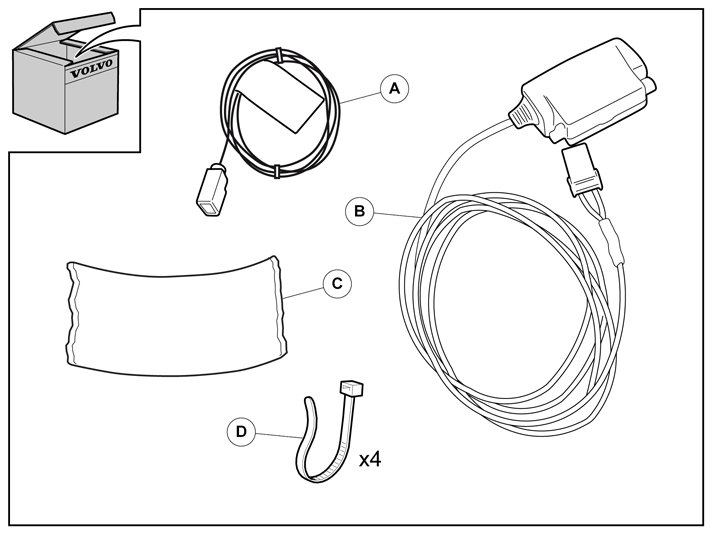

Kit contents
Operation number: 39732
Information
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Conditions
Set the ignition key to position 0.
Removal

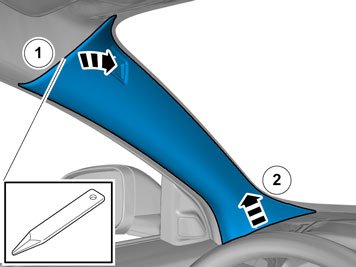

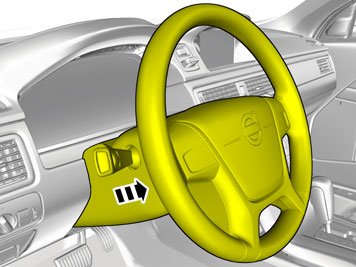

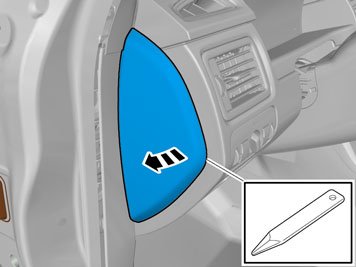

Remove the panel.

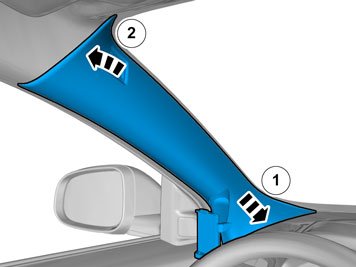

Release the lock.
Remove the panel.

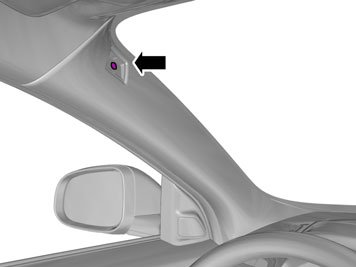

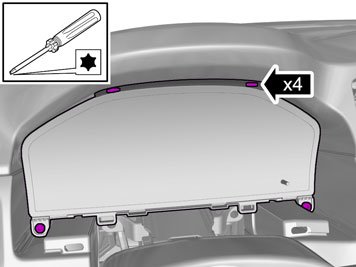

Remove the screws.

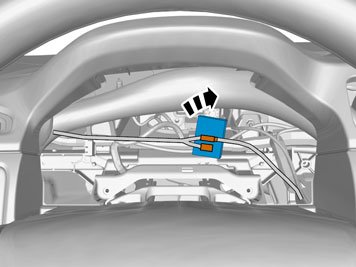

Disconnect the connector.

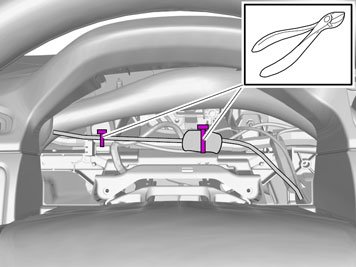

Remove the cable tie(s).
Disconnect the connectors.
Remove the screws.

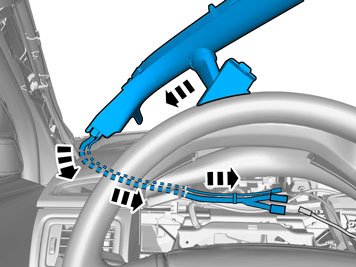

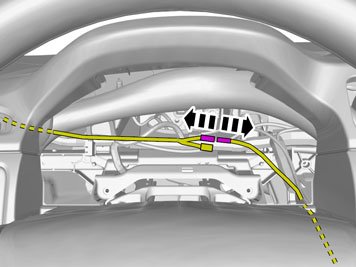

Pull the wiring through.

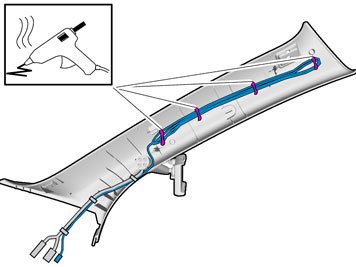

Use: Melting adhesive, 1161656

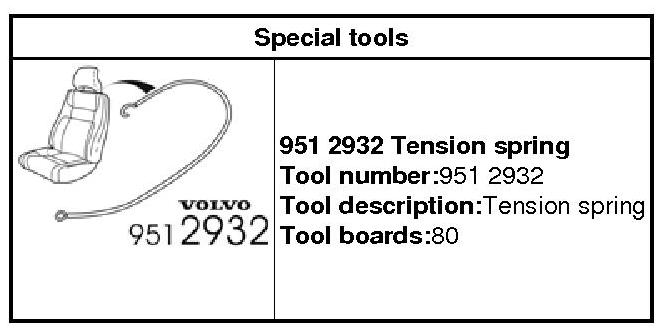

951 2932 Tension spring 951 2932 Tension Spring

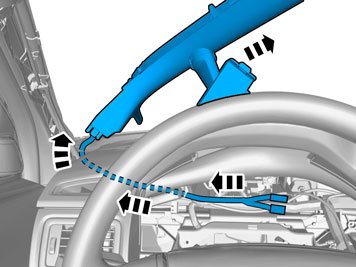

Pull the wiring through.
Reinstall the screw.
Connect the connectors.

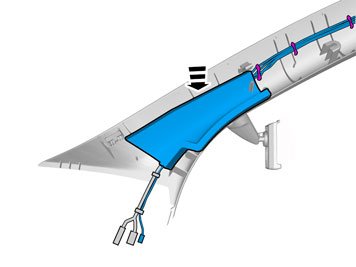

Tear off the excess foam tape.
Clamp the cables and connectors to the existing cables to prevent noise.
Reinstall the removed parts in reverse order.
