Navigation System, RTI

Navigation system, RTI

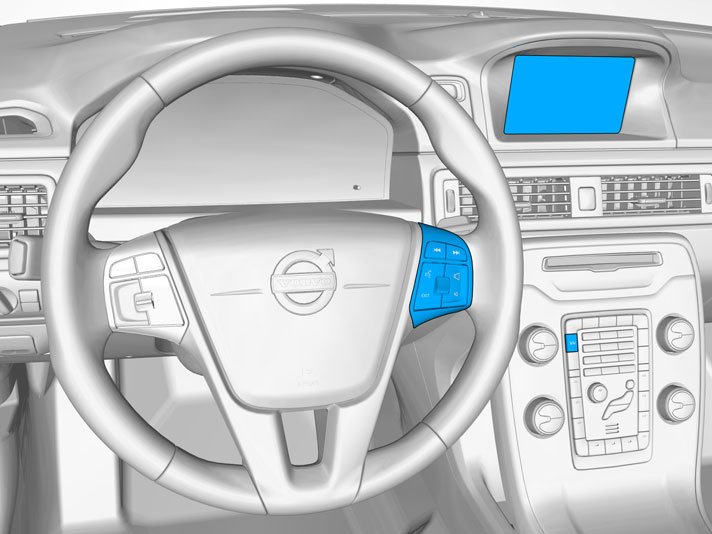

Equipment

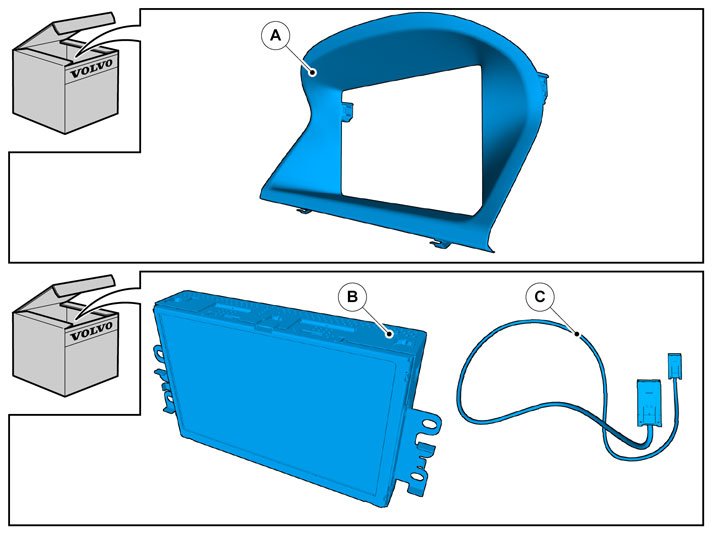

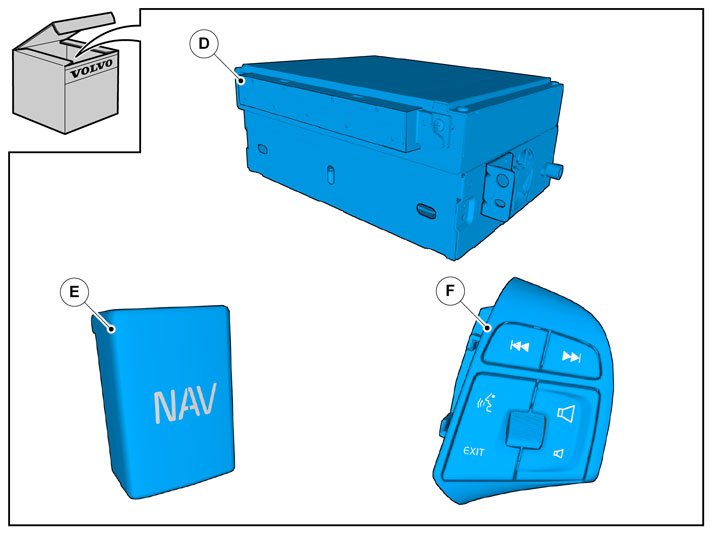

Kit contents

Operation number: 39702

Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions

Warning! The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 3 minutes before disconnecting or removing any SRS components.

Set the ignition key to position I.
Remove the battery's negative cable.

Removal

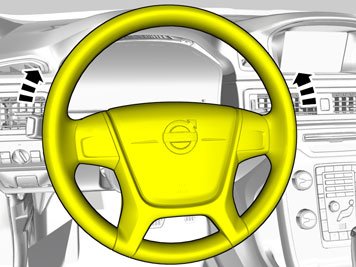

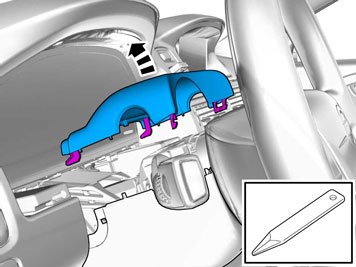

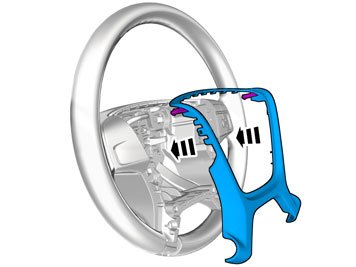

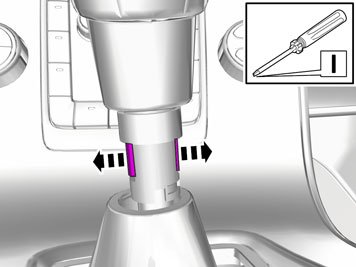

Remove the panel.

Repeat the steps when removing on opposite side.

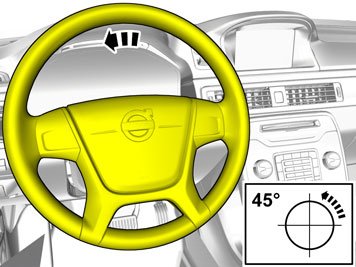

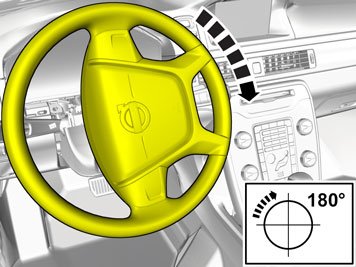

Turn the steering wheel into neutral position.

Disconnect the connectors.

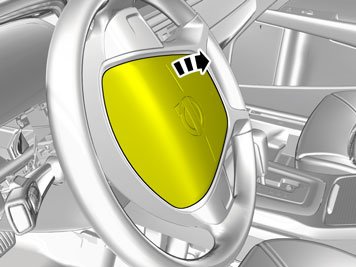

Warning! Place the airbag module with the front side facing up in a safe storage area during work.

Note! This step requires considerable force.

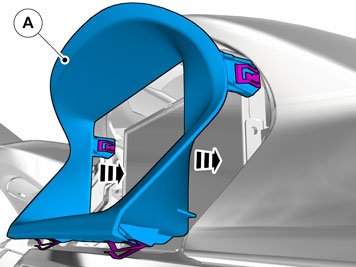

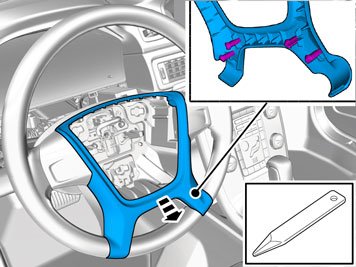

Detach the panel.

Note! This step requires considerable force.

Remove the panel.

Note! This step requires considerable force.

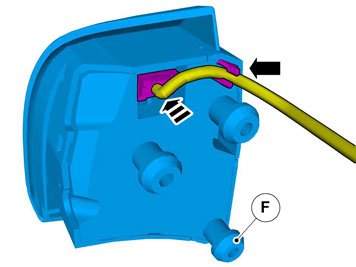

Disconnect the connector.

Installation

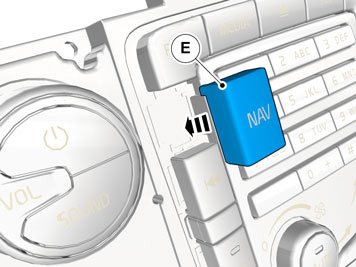

Connect the connector.

Installation

Install the panel.

Connect the connectors.

Install the panel.

Install the panel.

Removal

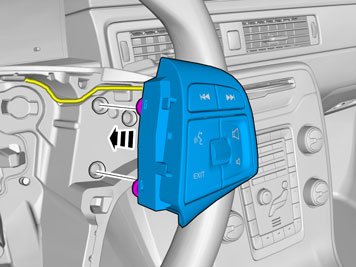

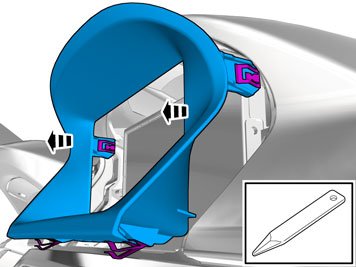

Remove the panel.

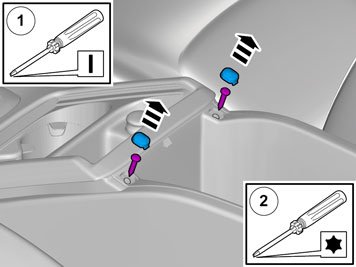

Remove the screws.

Remove the screws.

Cars with manual transmissions

Cars with automatic transmissions

All vehicles

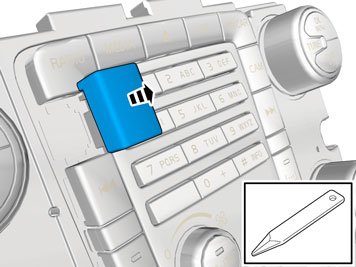

Remove the panel.

Detach the following items:

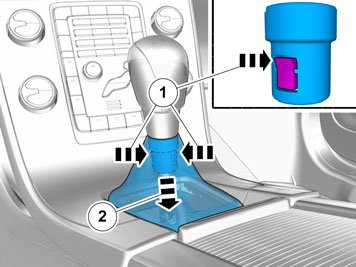

1. Fold the carpet to the side.
2. Unhook the clip(s).
3. Disconnect the connector.

Remove the screws.

Vehicles with the 4C system.

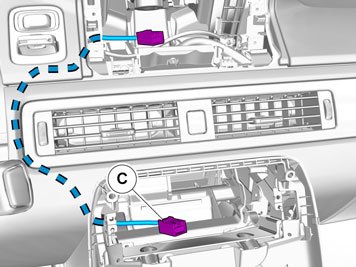

Disconnect the connector.

All vehicles

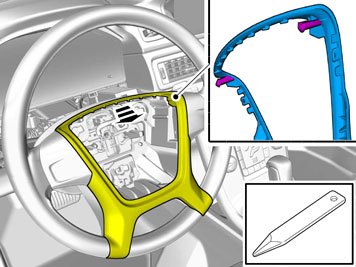

Remove the panel.

Installation

Removal

Remove the screws.

Caution! The number of connectors can vary depending on the vehicle's equipment level.

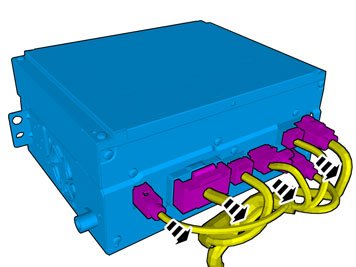

Disconnect the connectors.

Vehicles with 5 inch ICM-display

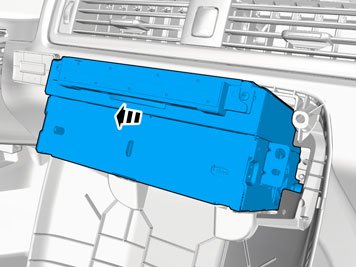

Remove the panel.

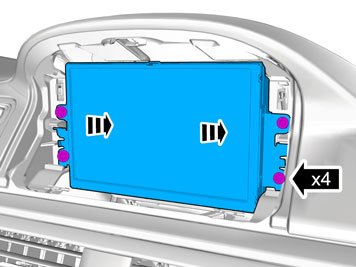

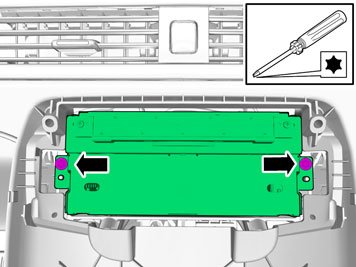

Remove the screws.
Remove the panel.

Caution! The number of connectors can vary depending on the vehicle's equipment level.

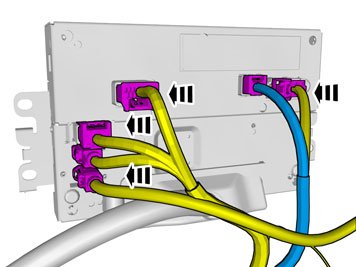

Disconnect the connectors.

Installation

Connect the connectors.

Install the panel.
Reinstall the screws.

Installation

Install the panel.

All vehicles

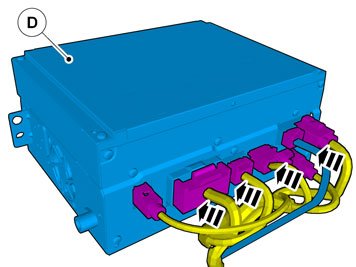

Connect the connectors.

Install the screws.

Reinstall the removed parts in reverse order.
Reinstall the battery's negative cable.

Warning! When switching the ignition on first time after a battery disconnect and connect, stand outside the vehicle and reach into the vehicle keeping clear of the air bags operating areas.

Download software (application) for the accessory's function. See the accessories catalogue for software part number.
