Garage Door Opener Transmitter: Service and Repair

Home Link























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Home Link

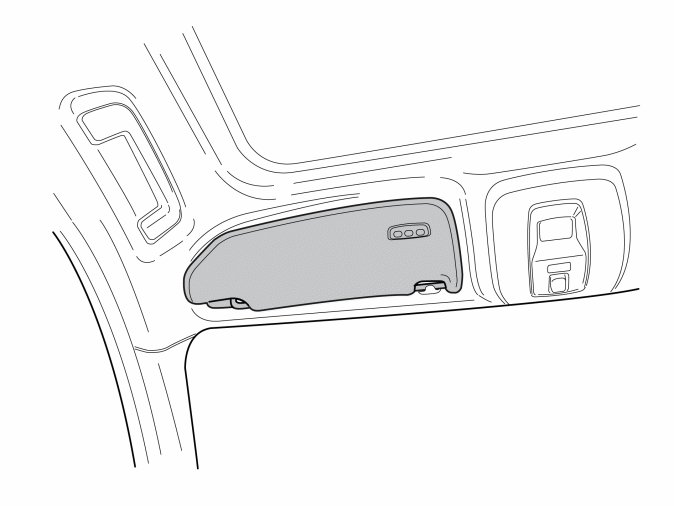

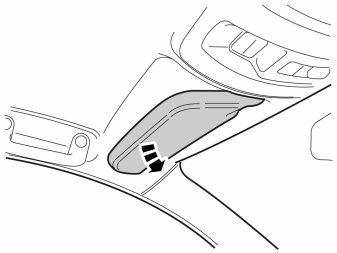

- Fold the sun visor down.

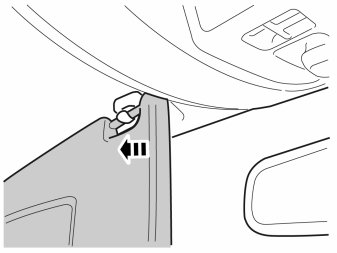

- Unhook the sun visor from its mounting.

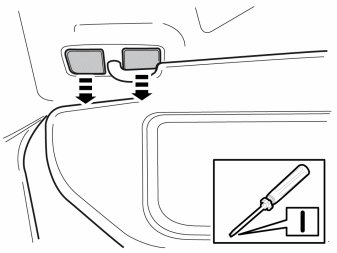

- Remove the two covers.

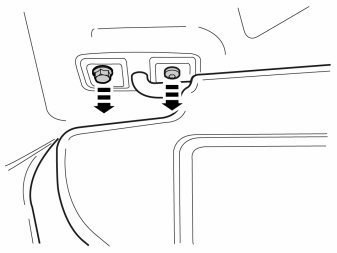

- Remove the two screws.





- Detach the sun visor.

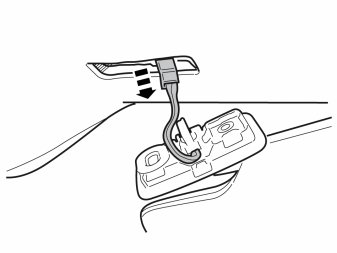

- Pull out the cable and disconnect the connector.

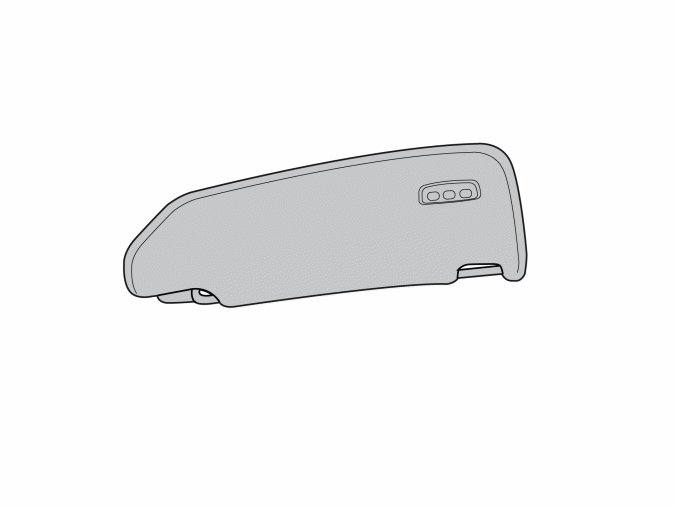

- Take the sun visor from the kit.

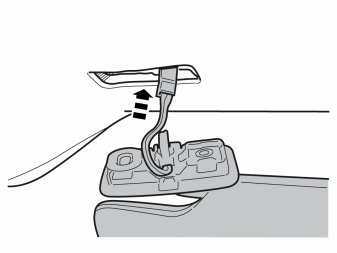

- Plug in the connector.
- Insert the connector and cable backwards, inside the headlining.

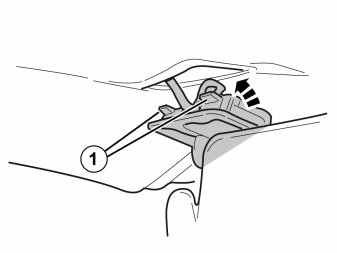

- Insert the two catches in the mounting inside the headlining.
- Reinstall the screws and covers

Hint: If it is difficult to get the catches inside the headlining, pull the headlining down carefully at the side window to increase the distance between the roof and headlining.
