TV Receiver, Replacing

Operation number: 39330-2

Receiver TV

Removal

Note! Removal steps in this procedure may contain installation details.

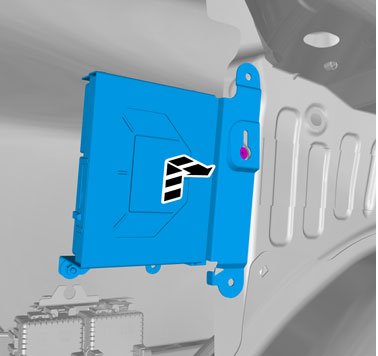

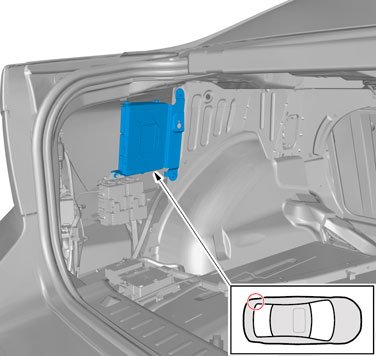

Remove the left-hand side panel in the cargo compartment Refer to: Side panel loadspace Side Panel Loadspace

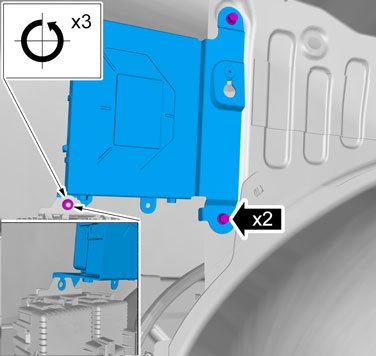

Torque: M6, 10 Nm

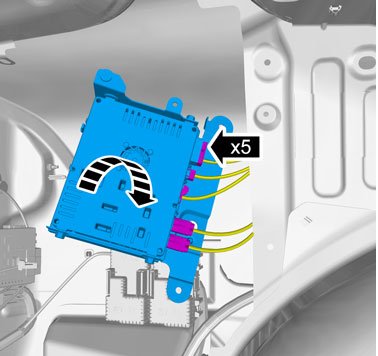

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Order and download appropriate software Programming and Relearning
