Part 3

Connect the connectors.

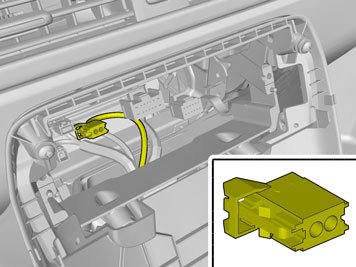

Connect the connector.

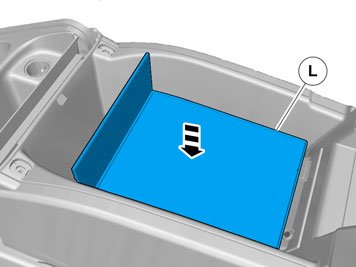

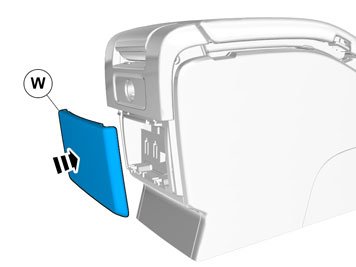

Install the panel.
Install the screws.








Locate the connector.

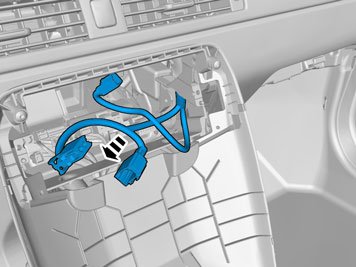

Connect the cable harness.

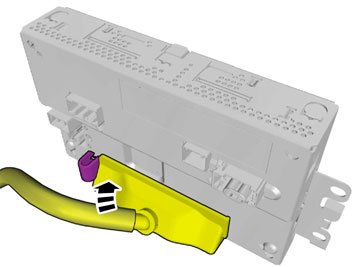

Connect the connectors.




Connect the connectors.

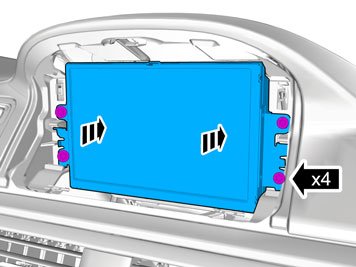

Install the screws.









Removal




Remove the panel.








Remove the screws.

Installation




Facilitate cable routing by temporarily raising the floor bracket using a socket or similar.








Install the screws.












Connect the connector.

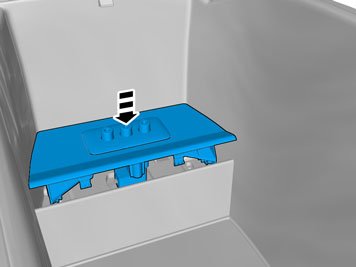

Install the panel.





Vehicles with headset sockets

Removal

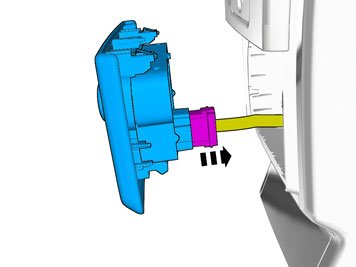

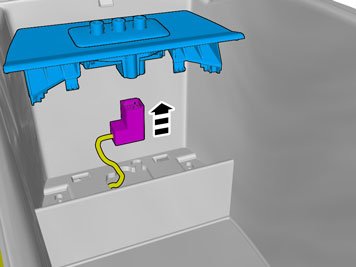

Disconnect the connector.

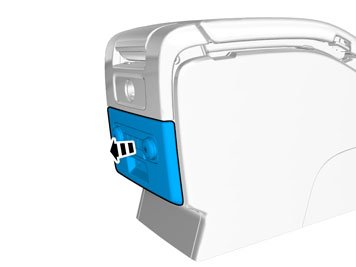

Remove the panel.




Remove the screws.
On both sides.




Remove the screws.

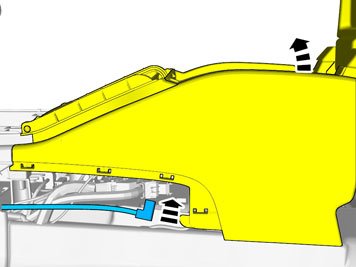

Detach the panel.

Installation




Connect the connector.
Reinstall the removed part.

Installation

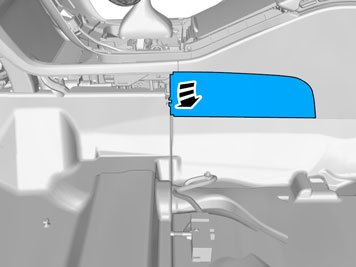

Install the panel.

All vehicles

Removal




Remove the screws.

Installation








Ground connection

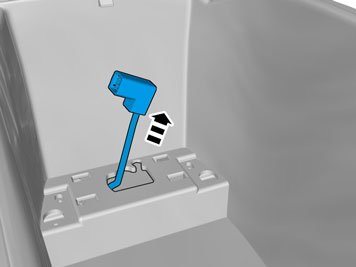

Pull the wiring through.

Removal




Fold the carpet to the side.




Remove the screw.

Installation




Ground connection
Reinstall the screw.

Installation




Install the screws.




Repeat on the other side.

Installation




Connect the connectors.
Repeat on the other side.

Installation




Connect the connector.
Repeat on the other side.




Reinstall the battery's negative cable.




Set the ignition key to position II.




Download software (application) for the accessory's function. See the accessories catalogue for software part number.

Reinstall the removed parts in reverse order.
