Part 2

Caution! The front and upper sill panel must be removed and installed as one unit.

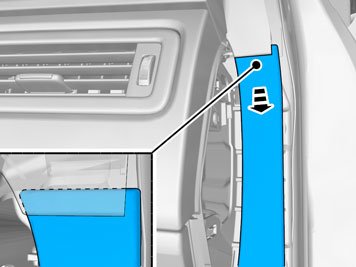

Remove the panel.

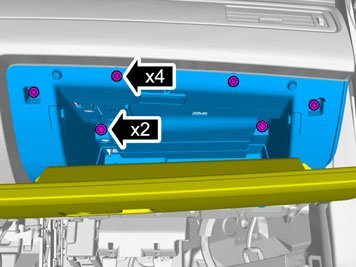

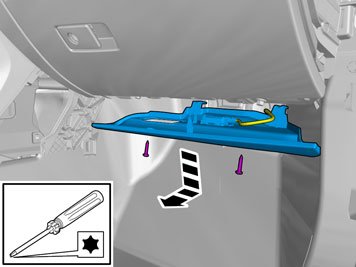

Remove the screws.
Remove the panel.

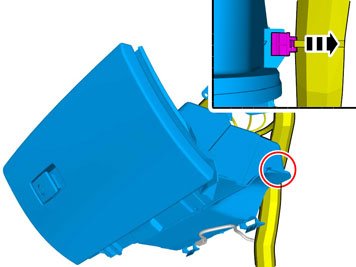

Disconnect the connector.

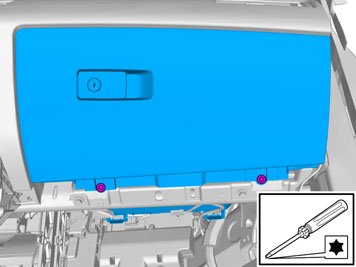

Remove the screws.




Remove the screws.




Disconnect the connector.

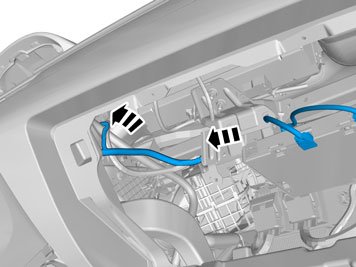

Unhook the cable harness clips.

Installation

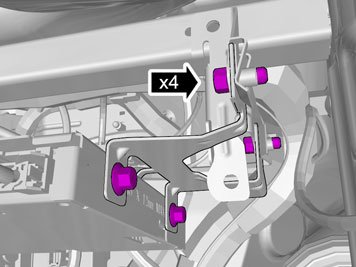

Note! Only tighten the bolts finger tight at this stage.

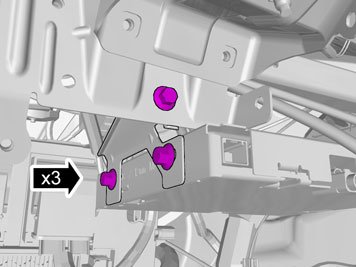

Note! Only tighten the bolt finger tight at this stage.

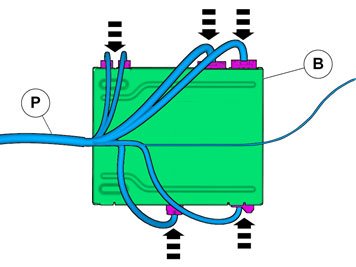

Connect the connectors.

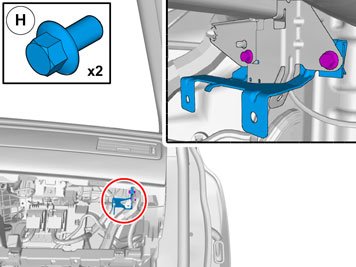

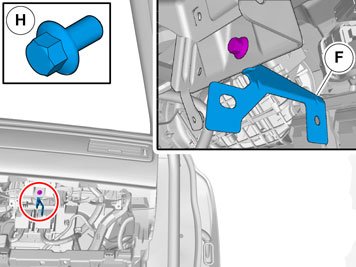

Note! Only tighten the bolts finger tight at this stage.




Torque: M6, 10 Nm




Torque: M6, 10 Nm




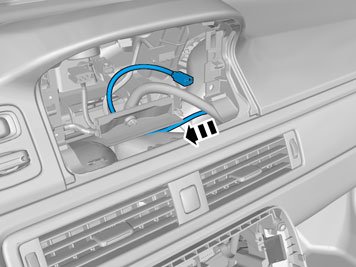

Route the cable harness to the existing cable harness.

Removal




Fold the carpet to the side.

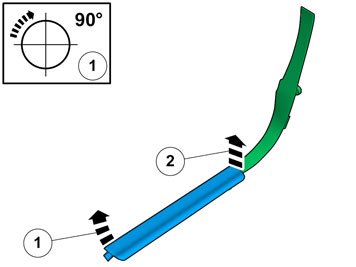

Detach the panel.








Locate the connector.




Release the lock.

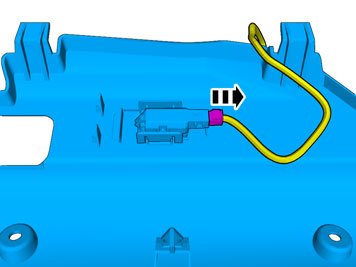

Disconnect the connector.




Release the lock.
Use: Electrician's screwdriver.




Release the connector's secondary lock.
Use: Electrician's screwdriver.

Installation




Connect the cable harness.
Depress the secondary lock.




Connect the connector.




Install the panel.




Route the cable harness to the existing cable harness.




Route the cable harness to the existing cable harness.
