Part 1
Mobility Connection Package
INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Mobility Connection Package
Note! These installation instructions show installation on a left hand drive car. For installation on a right hand drive car, perform the steps on the opposite side and/or mirrored. Where the operations differ, the right hand version is also shown with text and image. When installing Velcro strips/tape, the surface must be at a temperature of at least +20°C (68° F).
Note! Navigation system, portable: For information regarding the GARMIN device, see www.garmin.com.

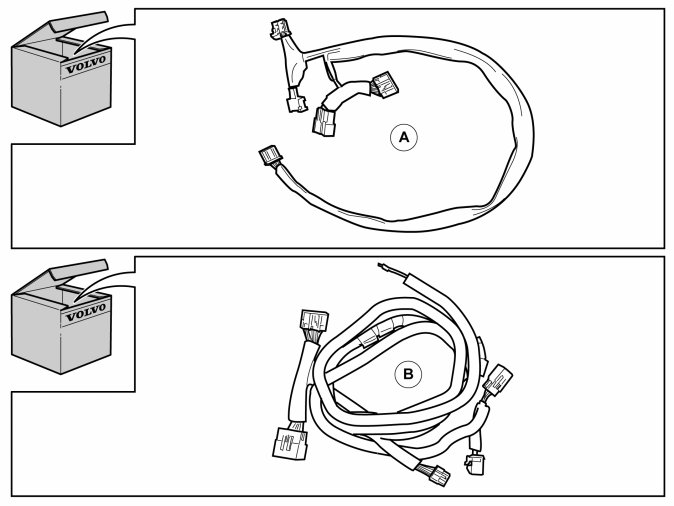

Note! The disc marked A in the kit image is used on cars with central loudspeaker grilles.
Note! Bluetooth handsfree: This accessory requires software unique to the car. There may be parts in the accessories kit that do not need to be used for this installation. Keep the manual for this accessory in a convenient place in the car.
Note! USB/iPod Interface: This accessory requires software unique to the car.
Note! Take care when handling the components, they are fragile and are easily damaged.
- Take the three screws M5x25 part no. 986957 and nuts from the kit.
- To prevent excessive resistance when the nut for the holder is tightened, hold the screw and screw the nut on and off the threaded part of the screw. Carry this out on all screws and nuts.
- Take special tool 9814104 (torx driver, torx 6), and unscrew the two screws holding the connector in the holder.
- Carefully push the connector to one side with the cable to expose the bottom of the holder.
- Take the kit with the four spacers from the installation kit.
Applies to left and right hand drive cars without center loudspeaker grille
- Carefully pry off the spacer using P/N 31212788. The part number (1) is on the bottom of the spacer.
Applies to left hand drive cars with center loudspeaker grille
- Carefully pry off the spacer using P/N 31212534. The part number (1) is on the bottom of the spacer.
Applies to right-hand drive cars with center loudspeaker grille
- Carefully pry off the spacer using P/N 31212787. The part number (1) is on the bottom of the spacer.
- Take the three screws and insert them in the spacer fully.
- Apply pieces of butyl tape to the screws so that the screw heads do not protrude outside the spacer when installing it.
- Install the spacer in the bottom of the holder.
- Ensure that the holder's two screw turrets align between the small pins in the oblong holes in the spacer. A click should be heard when the spacer is securely in position.
- Place the connector in the bottom of the hole. The guide hole (1) in the connector's circuit board must align in the corresponding pin at the bottom of the holder and the holes (2) in the circuit board must be over the holder's screw turret.
- Take the small torx screws and carefully tighten the connector to the holder. Ensure that the connector's circuit board is properly against the screw turret and that there is no play.
- Remove the butyl tape from the screws.
- Turn the ignition key to position 0.
Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.
Sections 11-15 apply to cars without center loudspeaker grilles
- Take the template from the kit and cut along the outer lines LHD/RHD
Note! It is important to carefully measure for the location of the template. Incorrect positioning of the hole group can cause problems in tightening the holder.

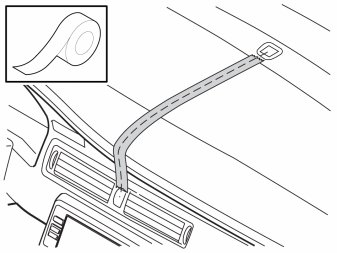

- Apply a piece of tape on the dashboard between the LED and button for the hazard warning lights, centered in the middle of these.

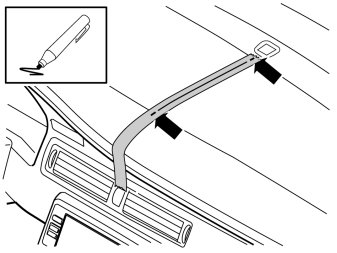

- Mark out the middle of the piece of tape in two places as illustrated, and draw a line between these marks.

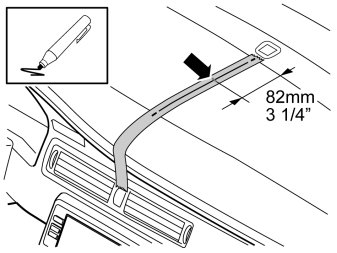

- Measure a distance of 82 mm (3 �") from the joint between the dashboard and grille and rearwards on the dashboard.
- Take the template and position the arrow point by the marking for 82 mm (3 �"). Position the template so that the central line follows the line on the piece of tape.

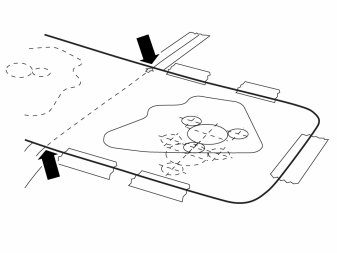

- Tape the template to the dashboard.
Applies to all models
- Prize away the holder for the switch at the lower edge.
- Then prize at the upper edge while coaxing and pulling it out.
- Unplug the connector.
- Remove the screw.
Illustrations A and B

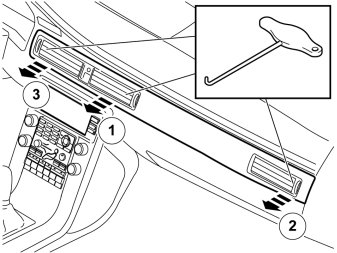

- Locate the holes. Pull the panel with air vents straight out.
- Use special tool 9512943.
- Remove the bolts of the panel underneath the glovebox and remove it.
- Remove the two screws.
- Remove the six screws.
- Pull out the glove box in one piece.
- Disconnect the connector at the rear edge.
- Remove the connectors on top and disconnect them.
- Remove the glovebox.

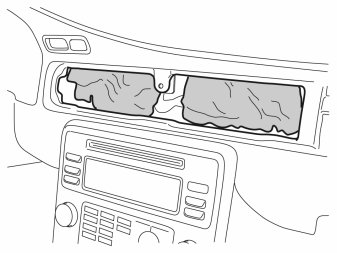

- Cover the ventilation openings with a paper towel to prevent drill swarf from entering.
- Place a paper towel in the dashboard underneath where the holes are to be drilled.
Sections 29-36 apply to cars without center loudspeaker grille
- Mark the holes in the center using a scriber.
Note! Select the correct version LHD or RHD and without loudspeaker grille.

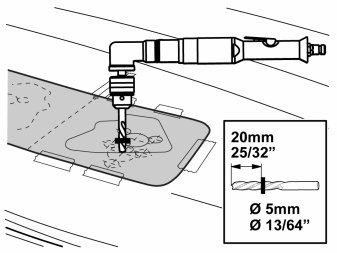

- Pre-drill the holes according to the template using a -5 mm (13/64") drill bit. Fit a 20 mm (25/32") drill stop. Drill square to the dashboard where the holes are to be positioned.
Note! Do not damage the dashboard.
Illustration A

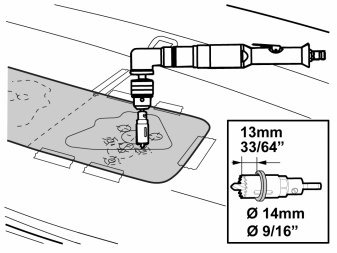

- Select a -14 mm (9/16") hole saw.
- Swap the central drill bit in the hole saw for a -5 mm (13/64") drill bit. The hole in the holder is larger than the diameter of the drill bit. Therefore, wrap tape around the end of the drill bit to make sure it sits firmly in place in the hole. Do not lock the central drill bit with the lock screw. The drill bit must only be used for guiding the hole saw because the holes in the dashboard's lower part cannot be larger than -5 mm (13/64").
