Infotainment Levels Upgrade

Infotainment levels upgrade

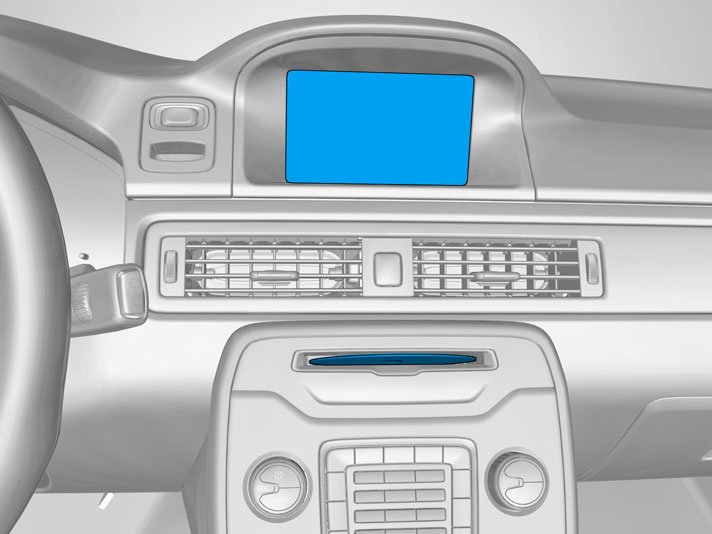

Equipment

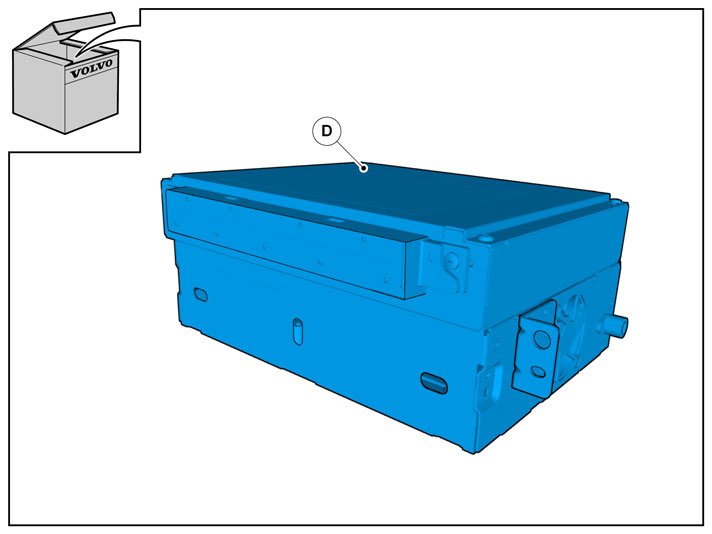

Kit contents

Operation number: 36660

Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions

Set the ignition key to position 0.
Remove the battery's negative cable.

Removal

Remove the panel.

Remove the screws.

Remove the screws.

Cars with manual transmissions

Cars with automatic transmissions

Release the shift-lock function.

All vehicles

Remove the panel.

Detach the following items:
1. Fold the carpet to the side.
2. Unhook the cable harness clips.
3. Disconnect the connector.

Remove the screws.

Vehicles with the 4C system.

Remove the panel.

Disconnect the connector.

All vehicles

Caution! Be careful not to damage the catches.

Remove the panel.

Remove the screws.

Caution! The number of connectors can vary depending on the vehicle's equipment level.

Disconnect the connectors.

Vehicles with 5 inch ICM-display
