Collision Avoidance and Parking Assist Systems: Service and Repair
Parking assistance, rear
INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Parking assistance, rear
Note! Some steps in these installation instructions are presented with illustration only.

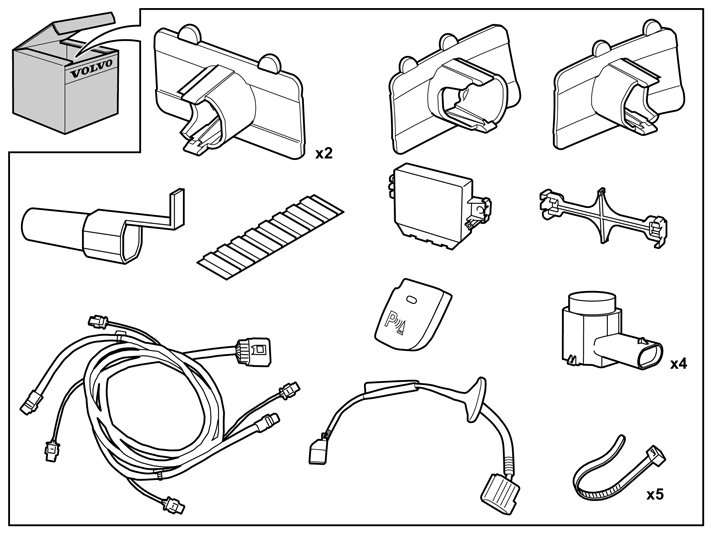

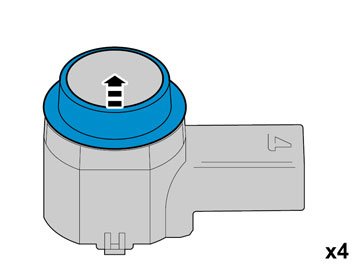

- Clean the sensors. Use: Isopropanol.
- Allow to dry.
- Carefully mat down the surface. Use Glasspaper, grade P1000.
- Clean the sensors again.
- Use: Isopropanol
- Allow to dry.
- Avoid contact with the cleaned surfaces.
Caution! Protect the connections' contact surfaces against paint.
- Paint the sensors in the same color code as the vehicle.
- Use Volvo Touch-up paint (only use base coat).
- Use: Volvo 2-K Varnish, P/N: 31335447
Note! Also read the instructions on the spray can.
Caution! The paint must have dried after the first application.
- Set the ignition key to position 0.
Note! Wait at least one minute before unplugging the connectors or removing other electrical equipment.

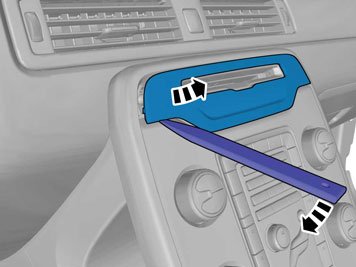

- Remove the panel.
- Remove the screws.
- Remove the screws.
Applies to vehicles with manual transmissions
Applies to vehicles with automatic transmissions
- Release the shift-lock function
Applies to all vehicles
- Remove the panel.
1. Fold back the mat.
2. Unhook the cable harness clips.
3. Unplug the connector.
- Remove the covers.
- Remove the screws.
Applies to vehicles with the 4-C system
- Remove the panel.
- Unplug the connector.
Applies to all models
Caution! Do not damage the hooks.

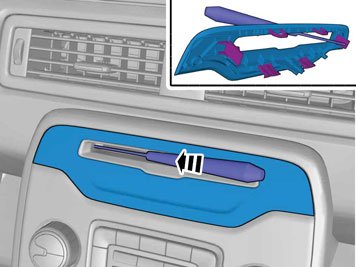

- Remove the panel.
- Remove the cover plug.

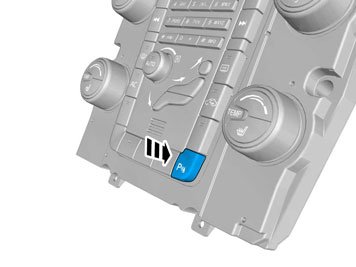

- Install the switch.
- Reinstall the detached components in reverse order.

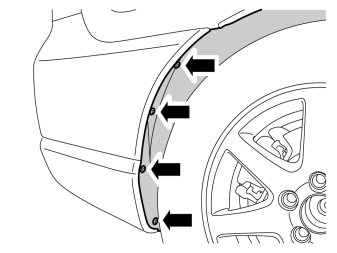

- Remove the four screws holding the end of the rear bumper.
- Repeat the operation on the other side.

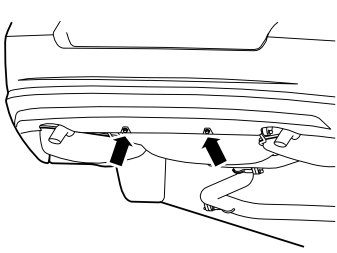

- Remove the two nuts at the lower edge of the bumper cover.

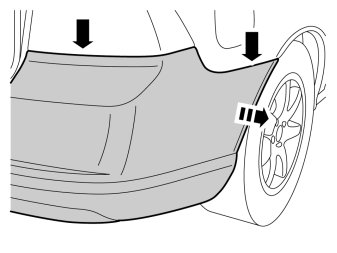

- Pull the corner straight out, continue to pull the bumper cover backwards until the five clips at the upper edge release.
- Repeat the operation on the other side.
- Open the boot lid/tailgate.

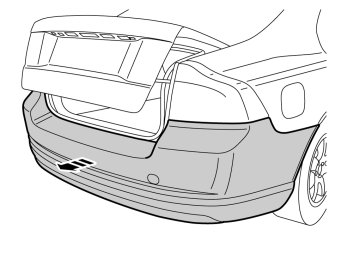

- Remove the bumper cover by pulling it backwards until the three catches opposite the tailgate opening have released.

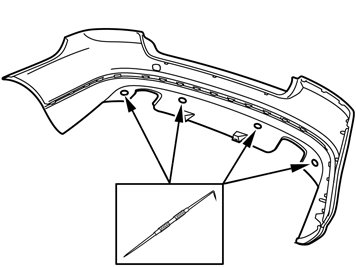

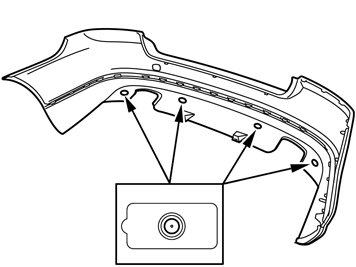

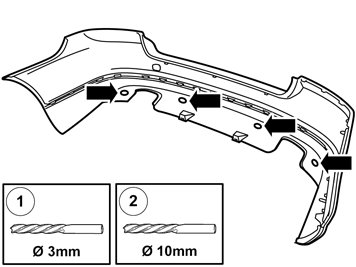

- Locate the 4 markings on the inside of the bumper cover.
- Mark the center, use a scriber.
- Drill out the markings using a - 3 mm (1/8") diameter drill bit.
- Drill out the holes. Use a - 10 mm (13/32") diameter drill bit.

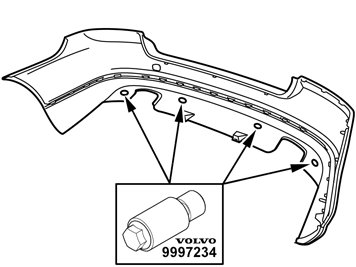

- Enlarge the holes in the bumper cover.
Use special tool: 9997234 Hole tool
Caution! The cutting part of the tool must be on the outside of the cover.

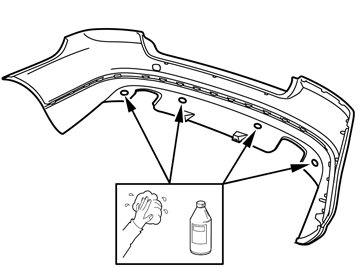

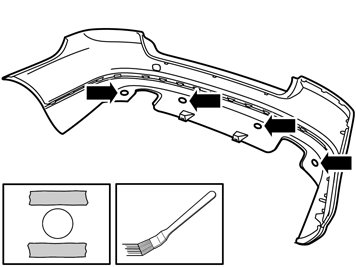

- Clean around the holes and markings.
- Use: Isopropanol.
- Allow to dry.

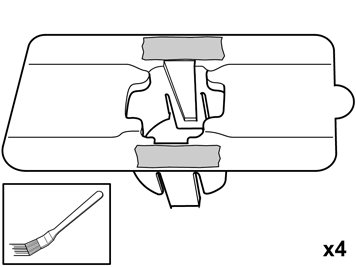

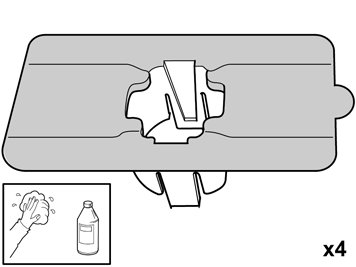

- Take four holders from the kit.
- Clean the holders on the surface as illustrated. Use: Isopropanol.
- Allow to dry.
- Apply a thin and even layer of activator to the cleaned surfaces where the tape is to be attached. Let dry for at least 1 minute. Use: 8637076Activator.
- Apply a thin and even layer of activator to the cleaned surfaces where the tape is to be attached. Let dry for at least 10 minutes. Use: 8637076Activator.
- Lift out the cargo compartment carpet.
- Remove the sill trim panel by first pulling it forward until the clips in the front edge release. Then pull it upward until the clips in the top edge release.

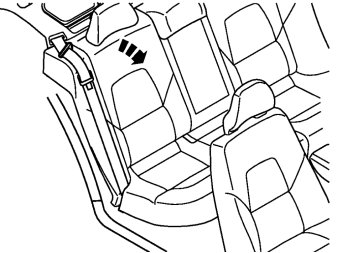

- Fold forward the right backrest in the backseat.

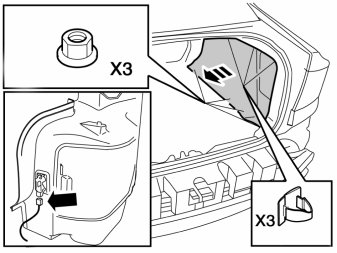

Remove:
- the clips
- the plastic nuts
- Connector to the cargo compartment lighting
- Side panel
Unplug connector for 12V outlet, if installed.

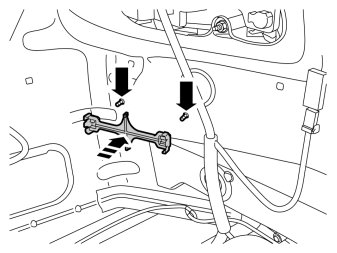

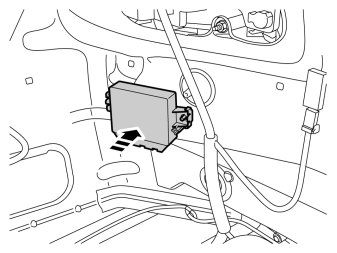

- Locate the two studs positioned on the right-hand side underneath the tail lamp in the cargo compartment. Press the control module's holder on the studs.

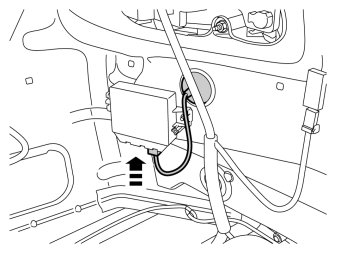

- Press the control module on the holder.
- Remove the rubber seal.

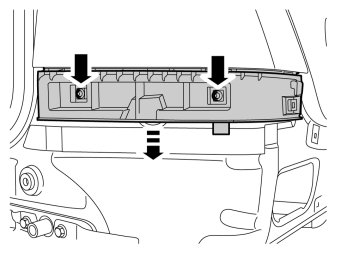

- Remove the support under the left-hand tail lamp by removing the two screws.

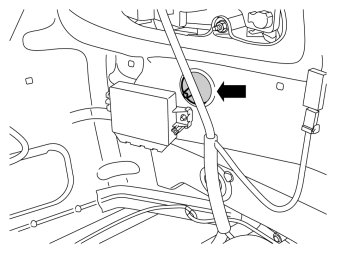

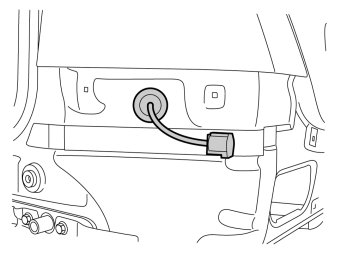

- Take the short cable harness and thread the end with the black connector through the hole in the body.
- Install the rubber seal.
- Reinstall the support under the left-hand tail lamp.
- Hook the connector onto the rail.

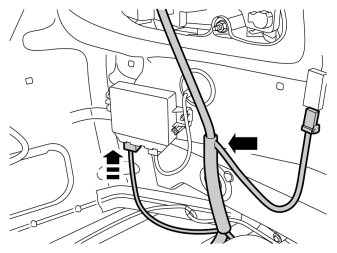

- Connect the newly routed cable harness to the control module.
- Locate the light brown connector. It originates from the same cable harness as the connector for cargo compartment lighting.
- Connect the connector to the control module.
Reinstall:
- the side panels
- the sill trim panel
- the floor carpet
- Fold up the backrest.
Installing sensors
- Check which holder is to be positioned where before installing. The two middle holders are the same whilst the two outer holders are specific.

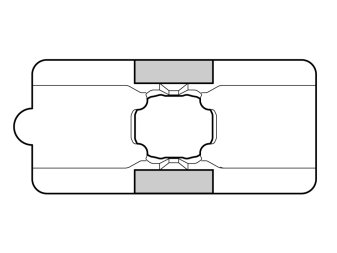

- Apply two pieces of tape to each holder.
- Remove the protective film from the tape.

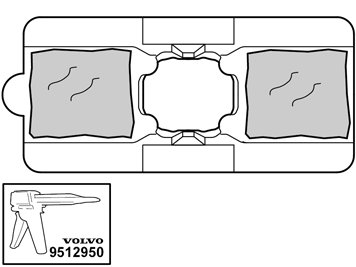

- Apply a thin layer and even layer of adhesive.
Note! The adhesive must be above the level for the tape.
Caution! The adhesive must not come into contact with the tape.
Use special tool: 9512950 Adhesive gun.
Use: 1161730 Mixing pipe.
Use: 9511027 Adhesive.

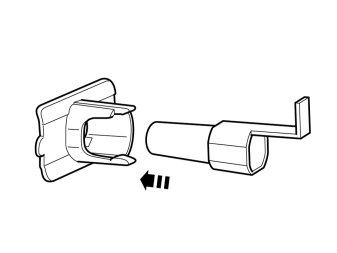

- Install the centering tool in one holder.

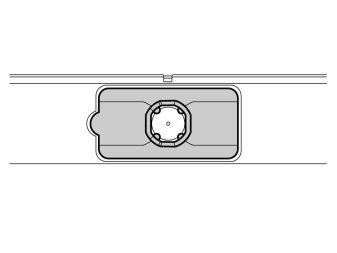

- Install the holder on the bumper cover.
- Hold the holder securely when removing the centering tool. The holder must be installed horizontally and in line with the bumper cover.
- Repeat the steps until all four holders are in place.

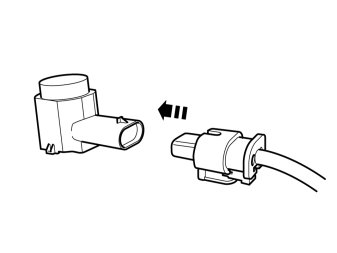

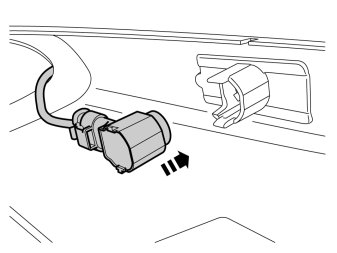

- Connect the cable harness connectors to the sensors.
- Install the sensors in their holders. Take care when installing so that the holder does not release from the tape.
Note! The large gray connector must protrude from the right-hand side of the bumper cover.

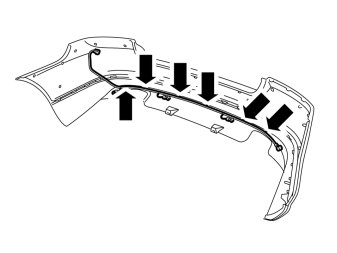

- Press the six cable holders on the longitudinal flange in the bumper casing.
Installing the bumper

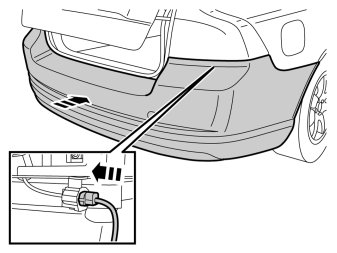

- Lift up the bumper and connect the connector
- Press all of the bumper's hooks in at the rear edge. Press all the hooks for the ends into the body.
- Reinstall the screws on the front edges of the bumper casing.
- Reinstall the plastic nuts at the lower edge.
- Download software (application) for the accessory's function
