Removal and Replacement

Operation number: 37024

Camera collision warning

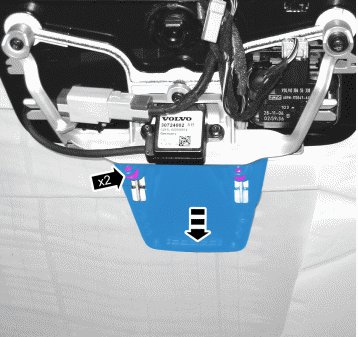

Removal

Note! Removal steps in this procedure may contain installation details.

Remove rear-view mirror inside Refer to: Inner rear view mirror Inner Rear View Mirror

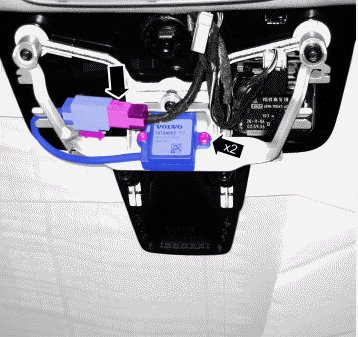

Torque: M5, 5 Nm

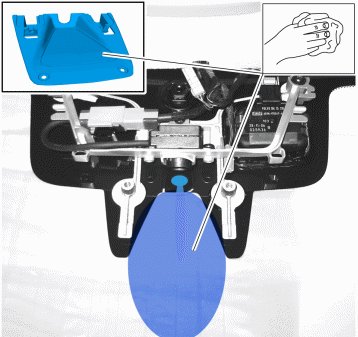

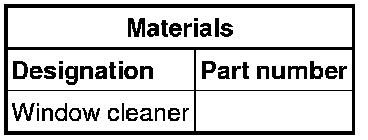

Use: Window cleaner,

Installation

To install, reverse the removal procedure.

Calibrate camera according to: DIAGNOSTICS/CAR COMMUNICATION/Advanced/FSM/Calibrating radar and camera

Order and download appropriate software Programming and Relearning
