Part 2

Caution! Make sure that no part of the wiring harness is trapped.

Facilitate cable routing by temporarily raising the floor bracket using a socket or similar.

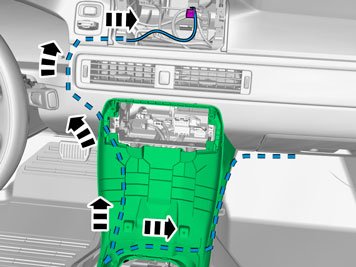

Pull the wiring through.

Connect the connectors.

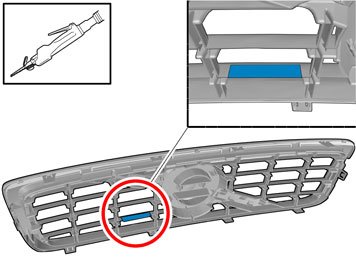

Tear off the excess foam tape.

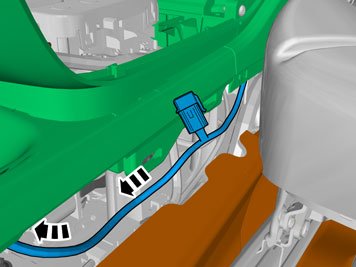

Route the cable harness to the existing cable harness.

Route the cable harness to the existing cable harness.
Pull the wiring through.

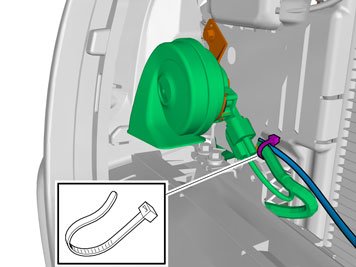

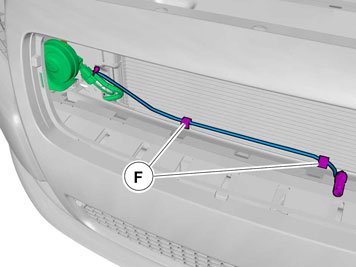

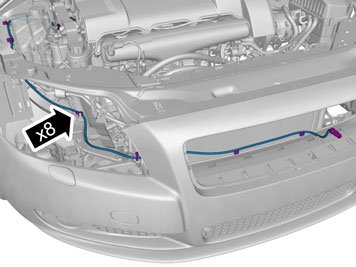

Attach the wiring, using clips.

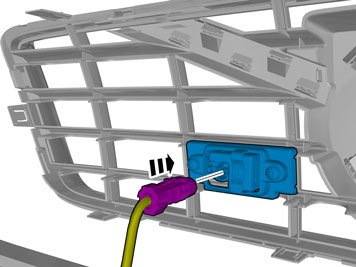

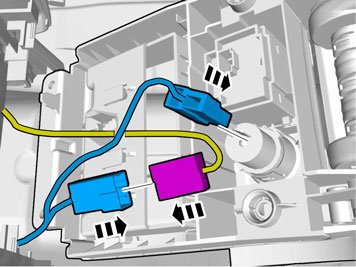

Connect the connectors.

Removal

Fold the carpet to the side.

Locate the rubber grommet under the insulation and press it out.

Installation

Note! Do not yet tighten the clamps.

Route the cable harness to the existing cable harness.

Installation

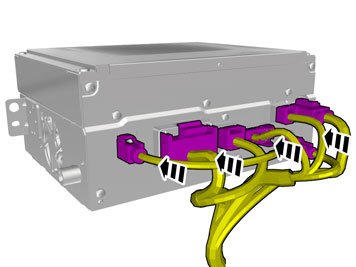

Connect the connectors.

Install the screws.

Removal

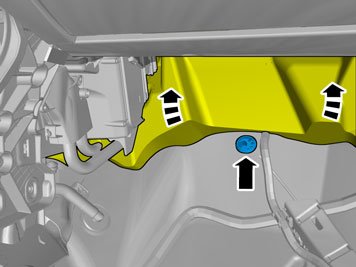

Remove the screws.
Remove the clips.

Note! On some markets the rubber grommet may be covered by the heat shield.

Installation

Pull the wiring through.

Caution! Take extra care when handling the component.

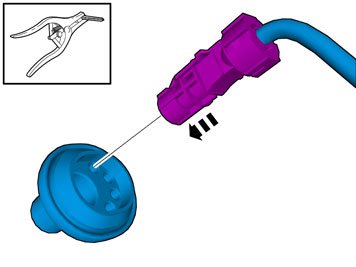

Use: Low temperature grease, 1161427

Removal

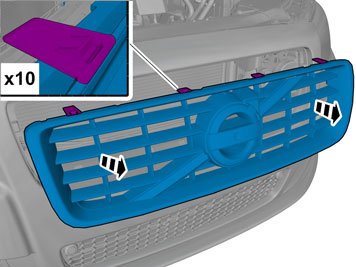

Release the catches

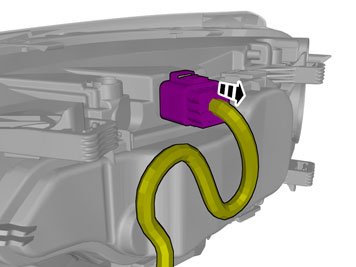

Disconnect the connector.

Remove the nuts.

Installation

Pull the wiring through.

Caution! Make sure to locate the wiring in such a way that any damage caused by heat or excessive wear is avoided.

Note! Do not yet tighten the clamps.

Route the cable harness to the existing cable harness.

Note! Do not yet tighten the clamps.

Note! Do not yet tighten the clamps.

Route the cable harness to the existing cable harness.

Note! Do not yet tighten the clamps.

Caution! Make sure to locate the wiring in such a way that any damage caused by heat or excessive wear is avoided.

Insert the cable in to the passenger compartment, adjust the cable length out into the engine compartment and secure the rubber grommet.
