Part 1

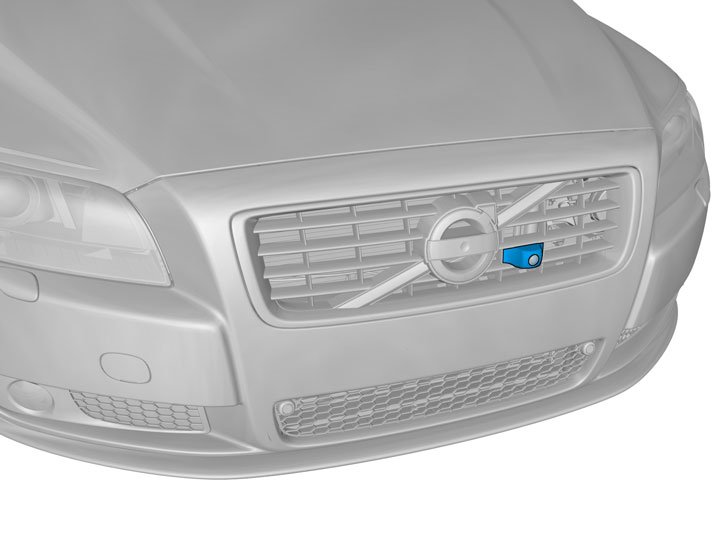

Parking assistance camera wide angle front
Equipment

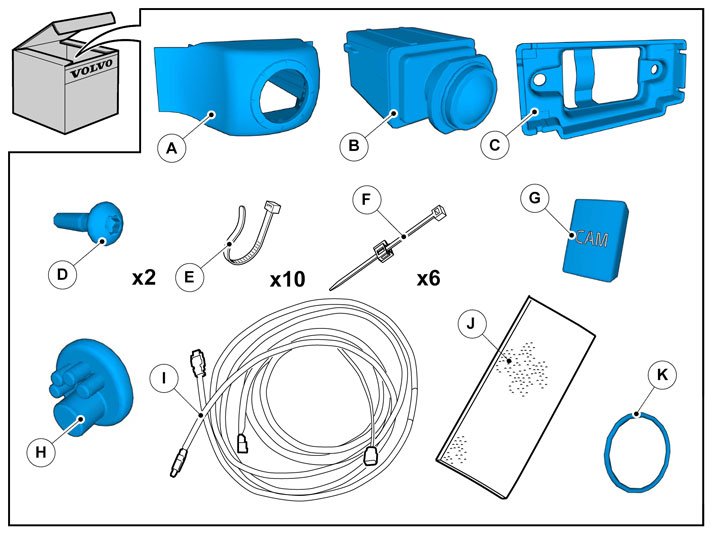

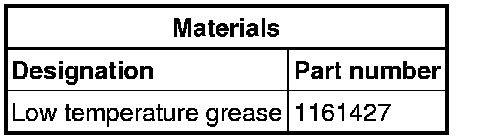

Kit contents
Operation number: 36686
Information
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Conditions
Set the ignition key to position 0.
Remove the battery's negative cable.
Removal

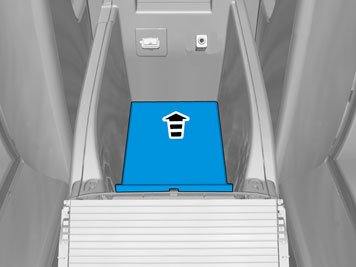

Remove the panel.
Remove the panel.
Remove the weatherstrip.
Remove the panel.
Remove the panel.
Remove the screws.
Remove the screws.
Cars with manual transmissions
Release the lock ring which is located inside the gear lever boot.
Cars with automatic transmissions
Release the shift-lock function.
Move the gear lever to D.
All vehicles
Remove the panel.
Remove the panel.
Detach the following items:
1. Fold the carpet to the side.
2. Unhook the clip(s).
3. Disconnect the connector.
Remove the screws.
Remove the panel.
Vehicles with the 4C system.
Disconnect the connector.
All vehicles
Caution! Be careful not to damage the catches.
Remove the panel.

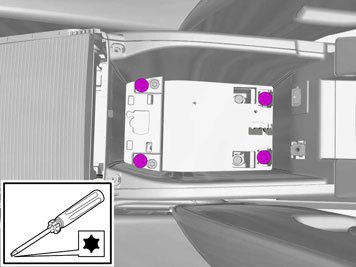

Remove the screws.
Detach the panel.

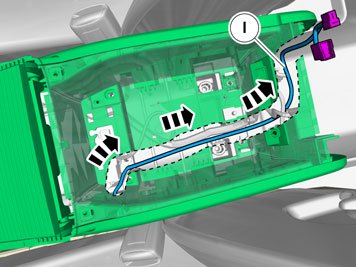

Installation
Removal
Remove the screws.
Caution! The number of connectors can vary depending on the vehicle's equipment level.

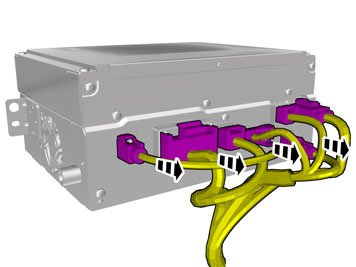

Disconnect the connectors.
Remove the panel.
Remove the screws.
Remove the panel.
Caution! The number of connectors can vary depending on the vehicle's equipment level.
Disconnect the connectors.
Remove the screws.
Remove the panel.
Remove the panel.
Remove the screws.
On both sides.
Remove the panel.
Remove the screws.
Detach the panel.
Disconnect the connector.
Installation
